Wiring trunking, type LKV N 75075 2000 | 75 | 75 | Base perforation | Stone grey; RAL 7030

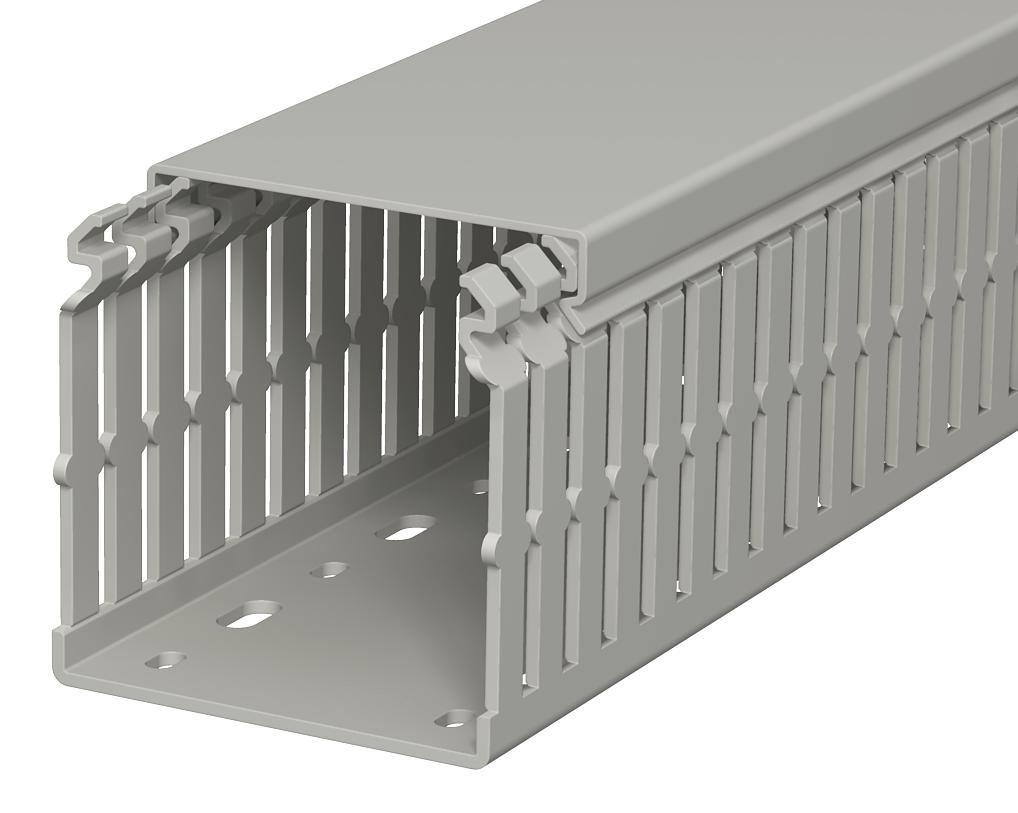

Wiring trunking, type LKV N 75075

Item no. 6178426 | EAN 4012196013555

Item no. / Types	6178426 / LKV N 75075

Length	2000 mm

Width	75 mm

Height	75 mm

Fastening type	Base perforation

Colour	Stone grey; RAL 7030

Product description

Product description

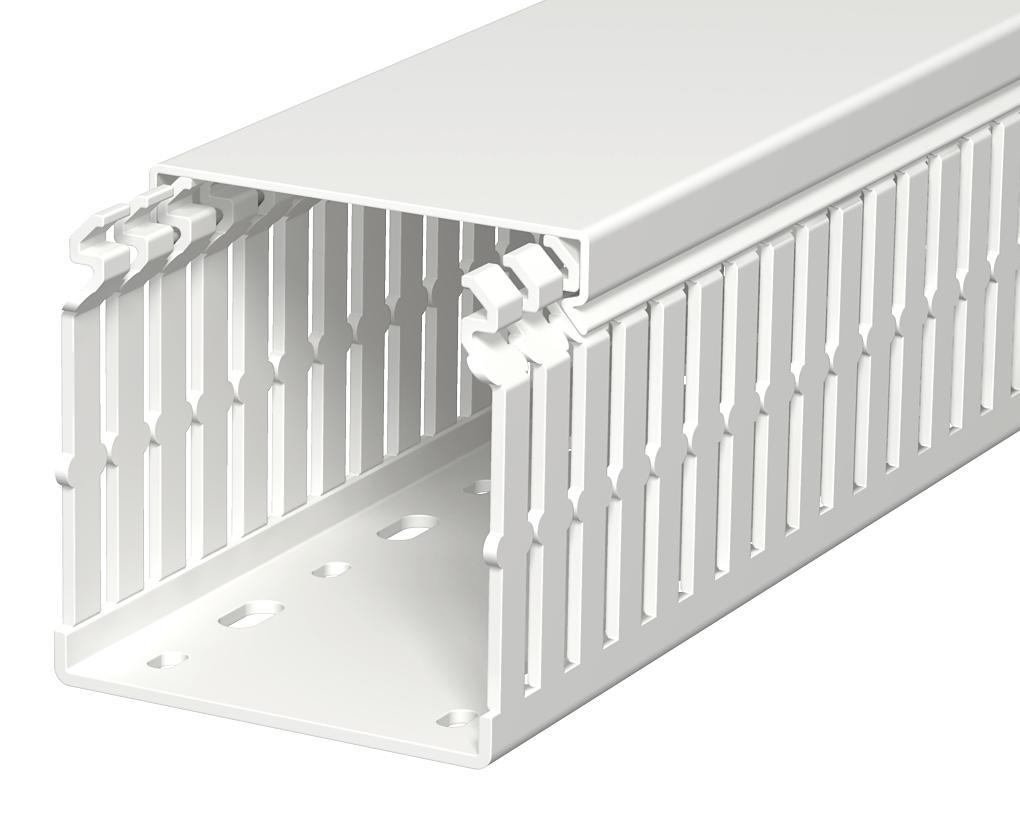

Wiring duct according to DIN EN 50085-2-3, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a DIN duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tapering in the side slots prevents the cables from falling out. Tested to DIN EN 50085-2-3. Special lengths on request.

Technical data

Technical data

Colour	Stone grey; RAL 7030
CO₂ Footprint (GWP) Cradle-to-Gate	1,664 kg CO₂e / 1 Meter

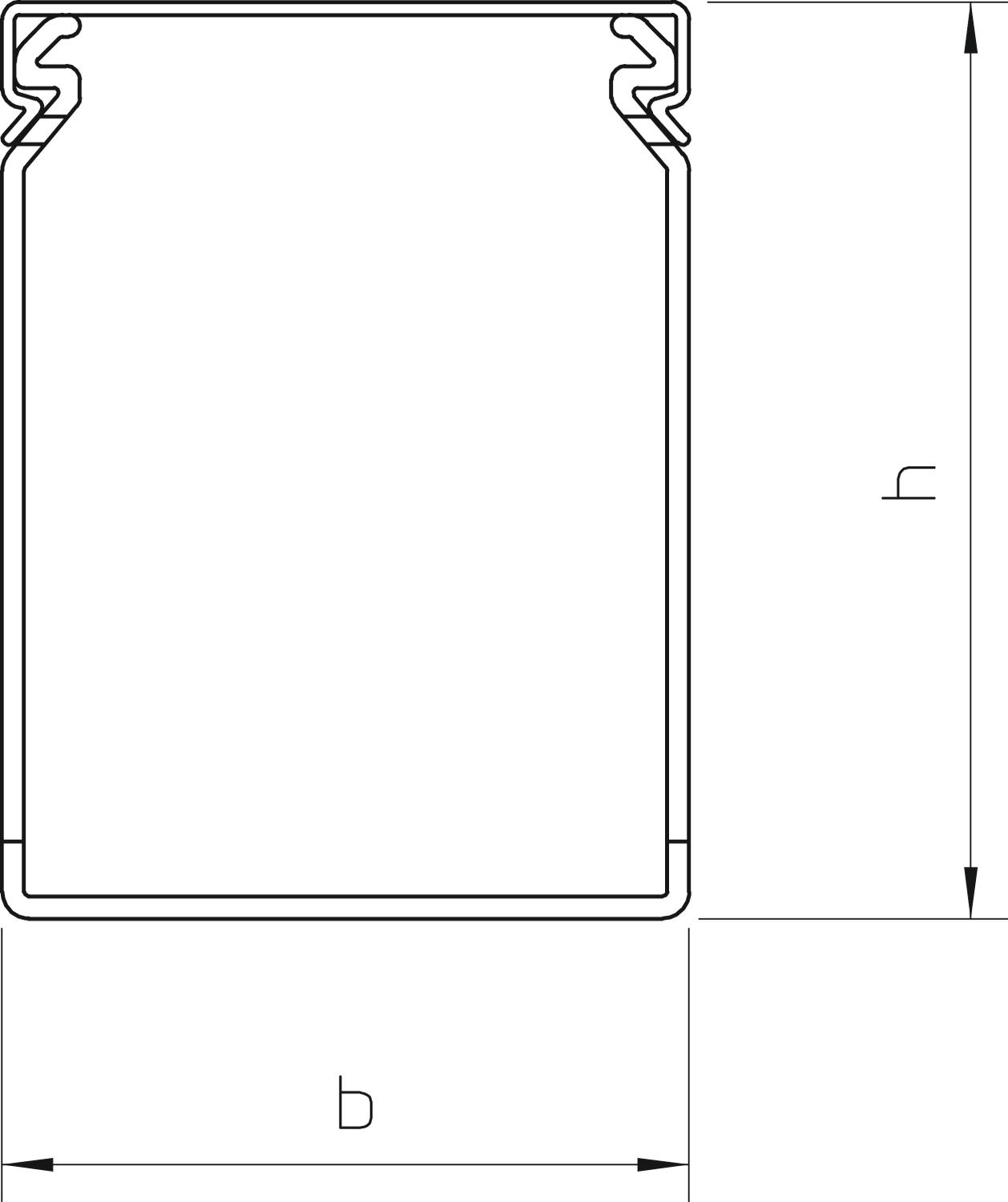

Dimension	75x75x2000
Fastening type	Base perforation
Flexible	no
Halogen-free	no
Height	75 mm
Length	2000 mm
Material	Polyvinylchloride

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Self-extinguishing	yes
Side wall version	Slotted
Slot spacing	12,5 mm
Slot width	5 mm
Usable cross-section	47,95 cm²
Width	75 mm
With cover	yes

All types

All types

Types	Length	Width	Height	Fastening type	Colour	Item no.	Quantity	SSU
LKV N 75075	2000 mm	75 mm	75 mm	Base perforation	Stone grey; RAL 7030	6178426	m	16 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

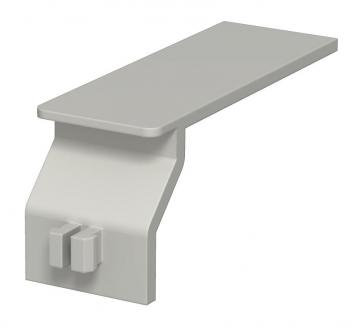

Wire retainer for type LK4 and LK4 N	LK4 H	6178092	piece	100 piece

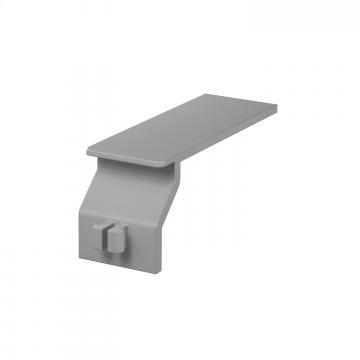

Wire retainer for type LKV and LKV N	LKV H	6178349	piece	100 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU

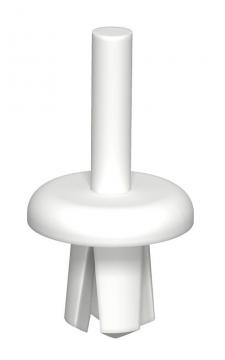

Spreading rivet, KSN 1	KSN1	6178520	piece	100 piece

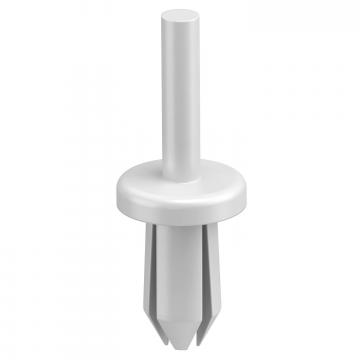

Body-bound rivet, KSN 22	KSN22	6178525	piece	100 piece

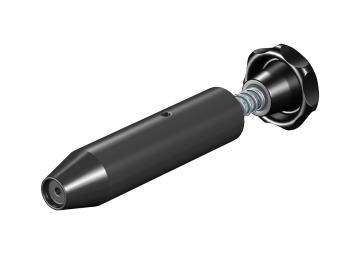

Plastic rivet tool KNW1	KNW1	6178527	piece	1 piece
Plastic rivet tool KNW2	KNW2	6178529	piece	1 piece

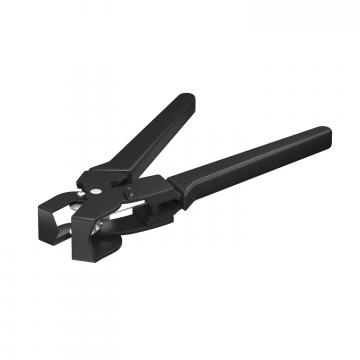

Release pliers	AKZ2	6178533	piece	1 piece

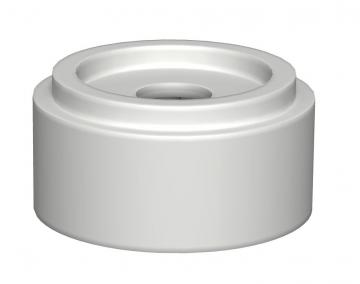

Spacer	AH1	6178540	piece	100 piece
