Wiring trunking, type LKV 50050 2000 | 50 | 50 | Base perforation | Stone grey; RAL 7030

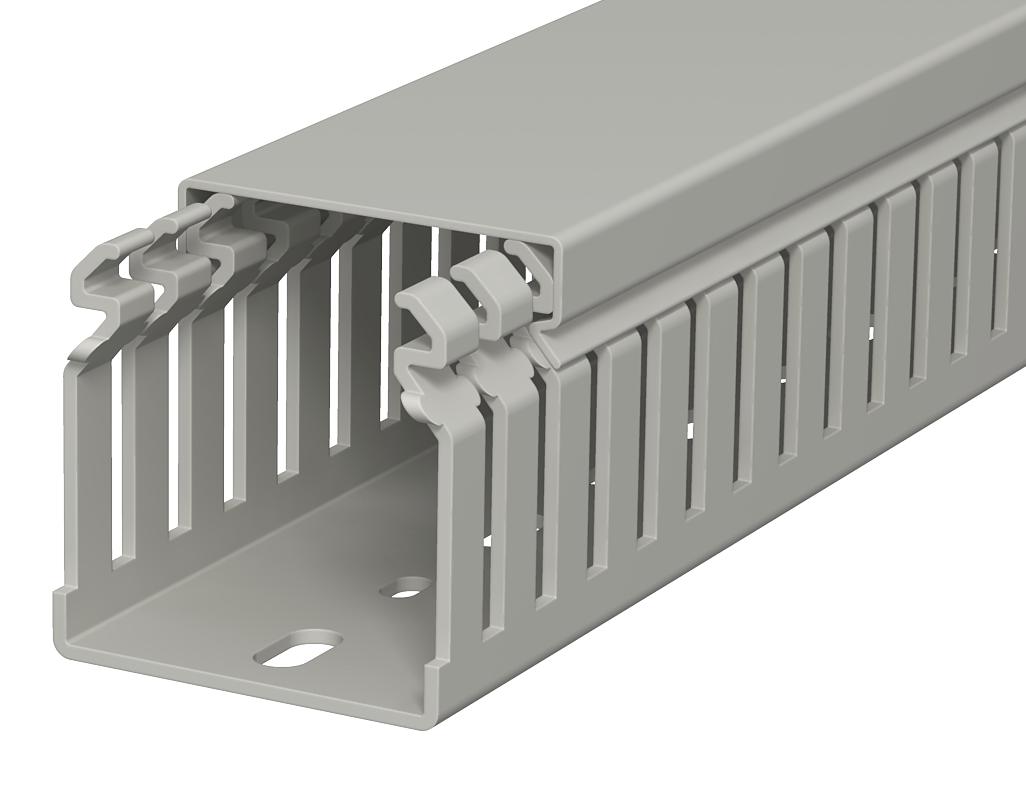

Wiring trunking, type LKV 50050

Item no. 6178314 | EAN 4012196009930

Item no. / Types	6178314 / LKV 50050

Length	2000 mm

Width	50 mm

Height	50 mm

Fastening type	Base perforation

Colour	Stone grey; RAL 7030

Product description

Product description

Wiring duct according to DIN EN 50085-2-3, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a DIN duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tested to DIN EN 50085-2-3. Special lengths on request.

Technical data

Technical data

Colour	Stone grey; RAL 7030
CO₂ Footprint (GWP) Cradle-to-Gate	0,94 kg CO₂e / 1 Meter

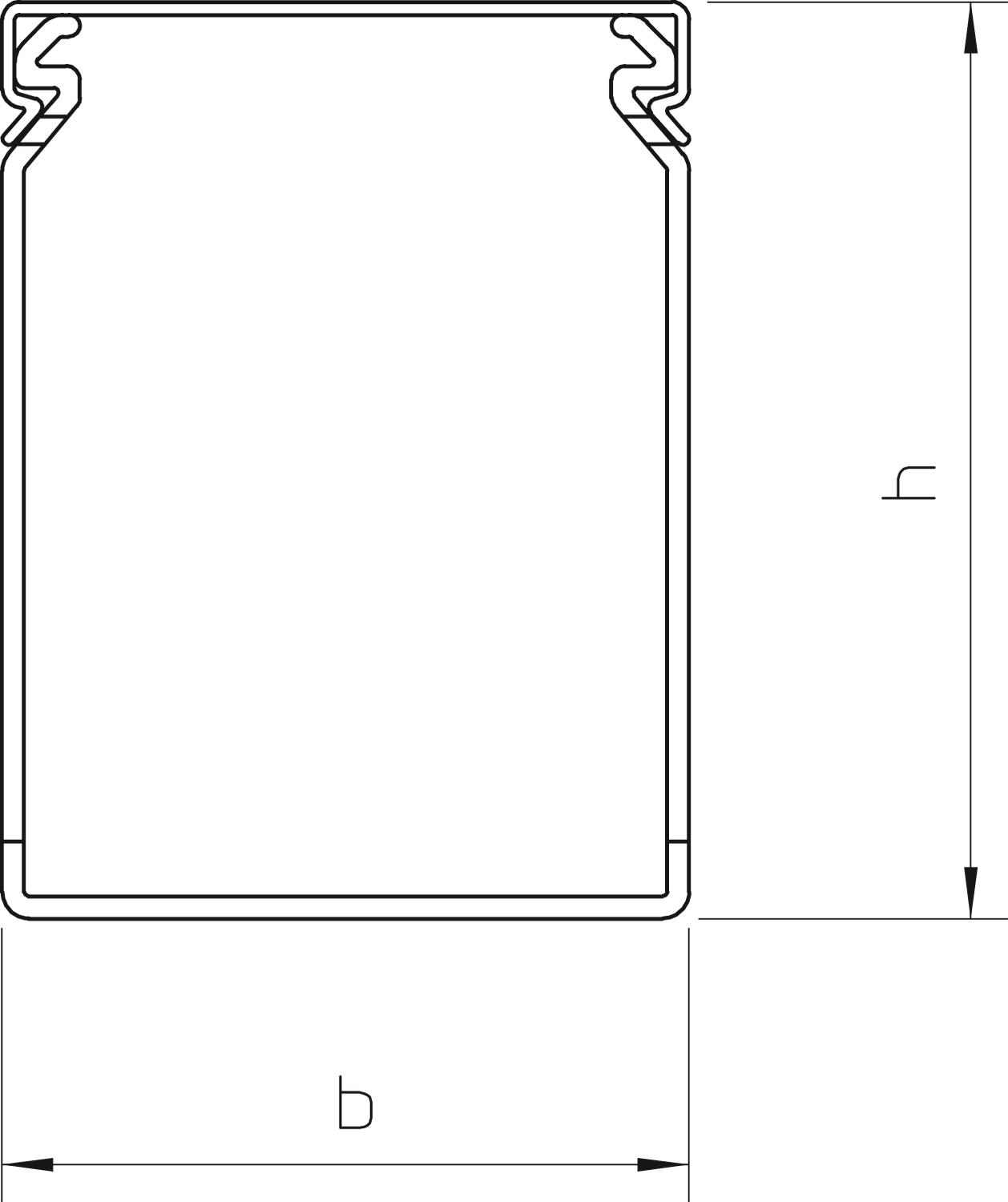

Dimension	50x50x2000
Fastening type	Base perforation
Flexible	no
Halogen-free	no
Height	50 mm
Length	2000 mm
Material	Polyvinylchloride

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Self-extinguishing	yes
Side wall version	Slotted
Slot spacing	12,5 mm
Slot width	5 mm
Usable cross-section	20,05 cm²
Width	50 mm
With cover	yes

All types

All types

Types	Length	Width	Height	Fastening type	Colour	Item no.	Quantity	SSU
LKV 50050	2000 mm	50 mm	50 mm	Base perforation	Stone grey; RAL 7030	6178314	m	36 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Wire retainer for type LK4 and LK4 N	LK4 H	6178092	piece	100 piece
Wire retainer for type LKV and LKV N	LKV H	6178349	piece	100 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Spreading rivet, KSN 1	KSN1	6178520	piece	100 piece
Body-bound rivet, KSN 22	KSN22	6178525	piece	100 piece
Plastic rivet tool KNW1	KNW1	6178527	piece	1 piece
Plastic rivet tool KNW2	KNW2	6178529	piece	1 piece
Release pliers	AKZ2	6178533	piece	1 piece

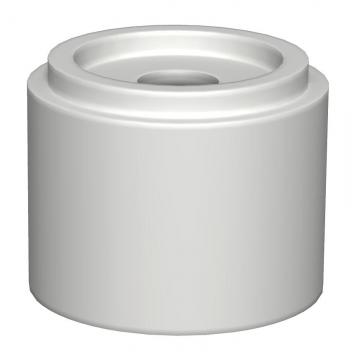

Spacer	AH1	6178540	piece	100 piece
Spacer	AH2	6178542	piece	100 piece
