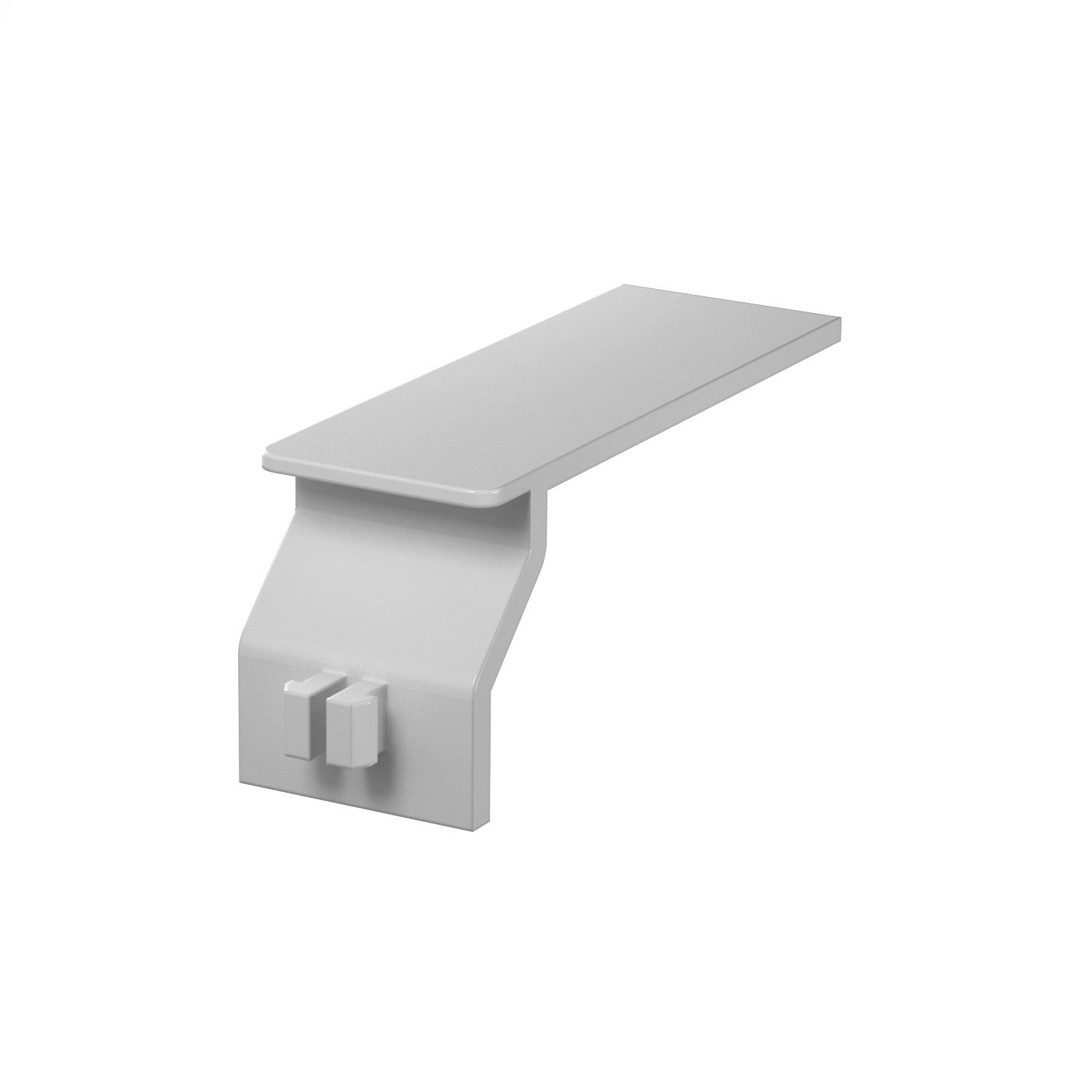

Wire retainer for type LKVH
Item no. 6178650 | EAN 4012196017829
- Product description
-
Product descriptionWire retainer for halogen-free wiring trunking, type LKVH. The wire retainer prevents already inserted cables from falling out. These predetermined breaking points allow the length to be reduced for various trunking widths to 38, 28 and 23 mm.
-
- Technical data
-
Technical data

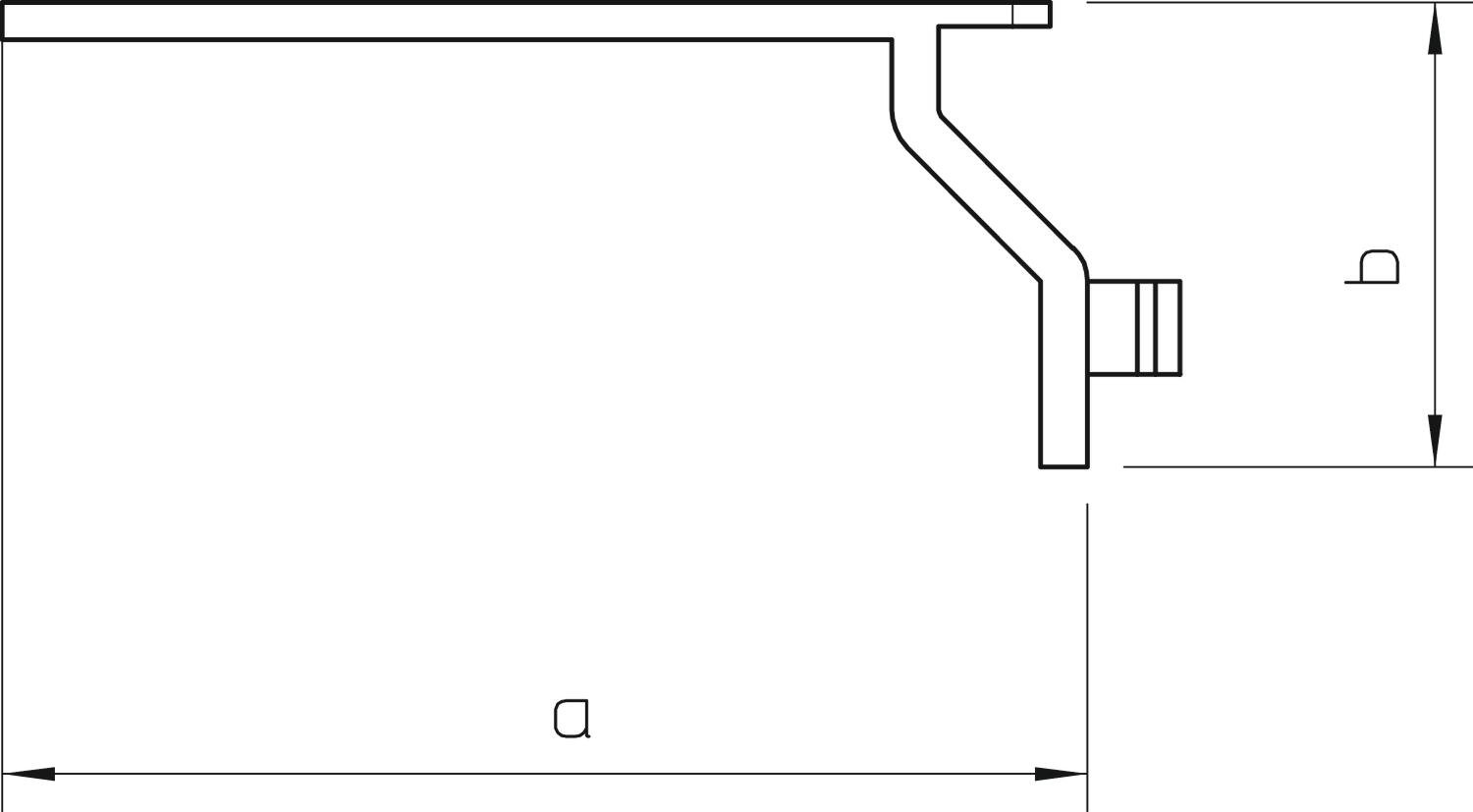

Adjustable to duct width yes Colour Light grey; RAL 7035 Dimension a 56 mm Dimension b 25 mm Halogen-free yes Height 25 mm Material Polystyrene Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Width 56 mm - All types
- Downloads
-
Data sheet LKV H H / 6178650 , 0.15MB , pdfBrochure Wiring trunking , 2.79MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity LKV H H / 6178650 , 0.10MB , pdfREACH Declaration of conformity LKV H H / 6178650 , 0.12MB , pdfRoHS Declaration of conformity LKV H H / 6178650 , 0.12MB , pdfMounting instructions Mounting instructions, LK4/LK4H/LKV/LKVH wiring duct , 5.49MB , pdf
