Wire cable clamp A4 8 |

morepic-1

morepic-2

Wire cable clamp A4

Item no. 5302182 | EAN 4012195901372

Item no. / Types

for cable diameter, min.

Product description

Product description

8 mm wire cable clamp

Technical data

Technical data

Dimension	8mm
for cable diameter, min.	8 mm
Material	Stainless steel

Surface	Bright, treated
Version for	Not insulated

Dimensions

Dimension A	34 mm
Dimension B	9 mm

Dimension C	6 mm

All types

All types

Types	for cable diameter, min.	Item no.	Quantity	SSU
947 3 A4	3 mm	5302170	piece	25 piece
947 5 A4	5 mm	5302174	piece	25 piece
947 6 A4	6 mm	5302178	piece	25 piece
947 8 A4	8 mm	5302182	piece	10 piece
947 10 A4	10 mm	5302188	piece	10 piece

Downloads

Data sheet 947 8 A4 / 5302182 , 0.20MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity Declaration of conformity ,

Download

Declaration of conformity Declaration of conformity ,

Download

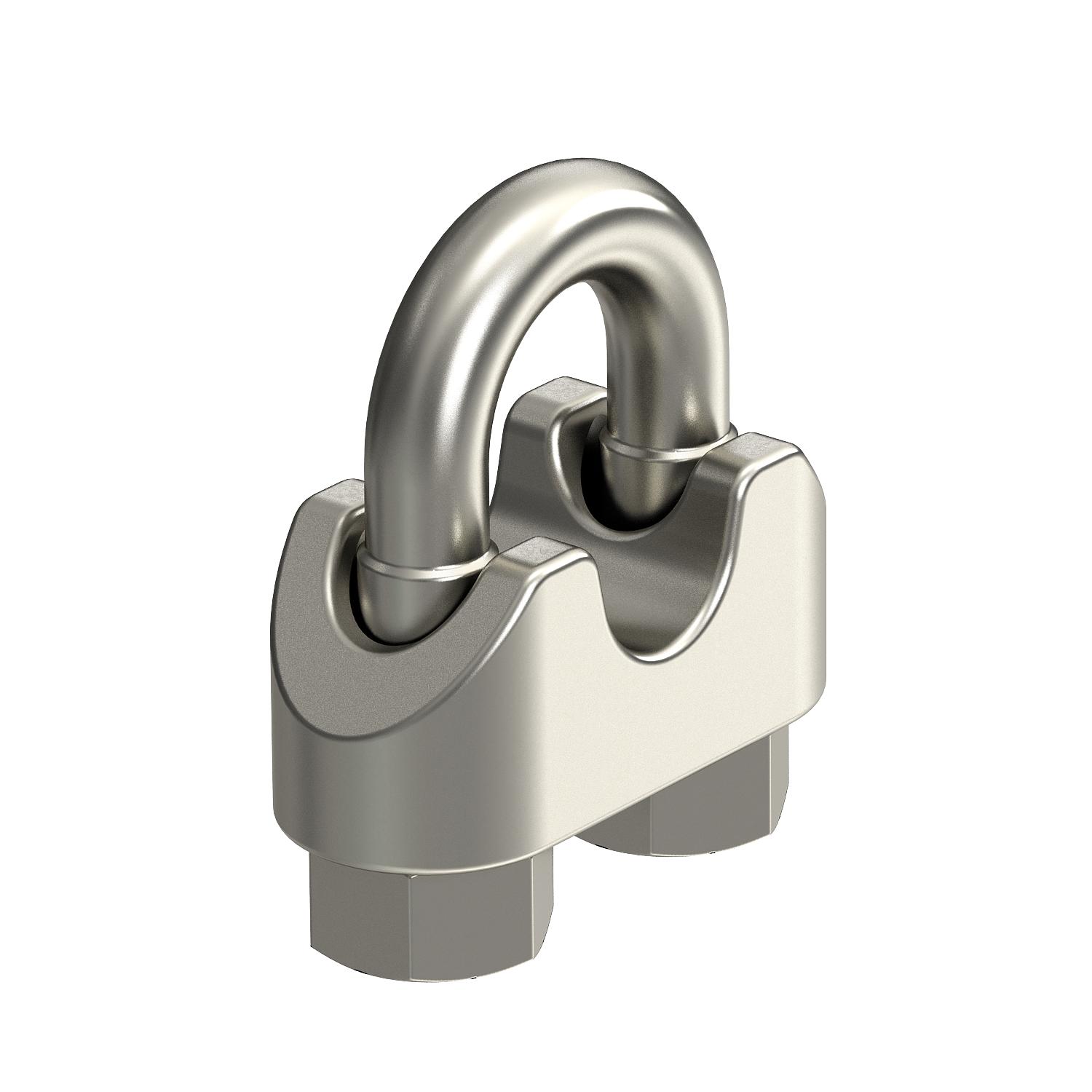

Product graphic 947 8 A4 / 5302182, 82.03 kB, jpg

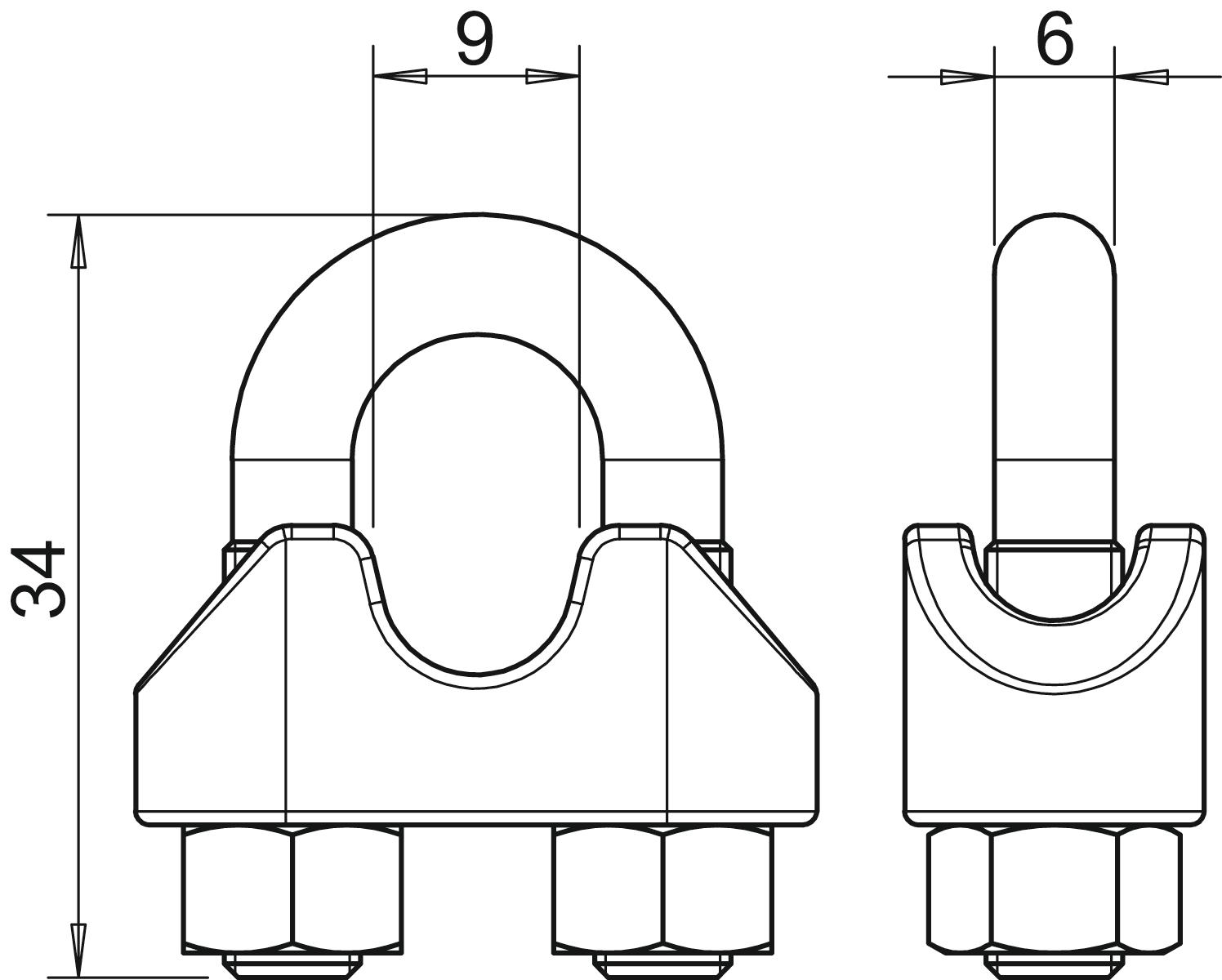

Scale drawing 947 8 A4 / 5302182, 87.82 kB, jpg

947 8 A4 / 5302182
