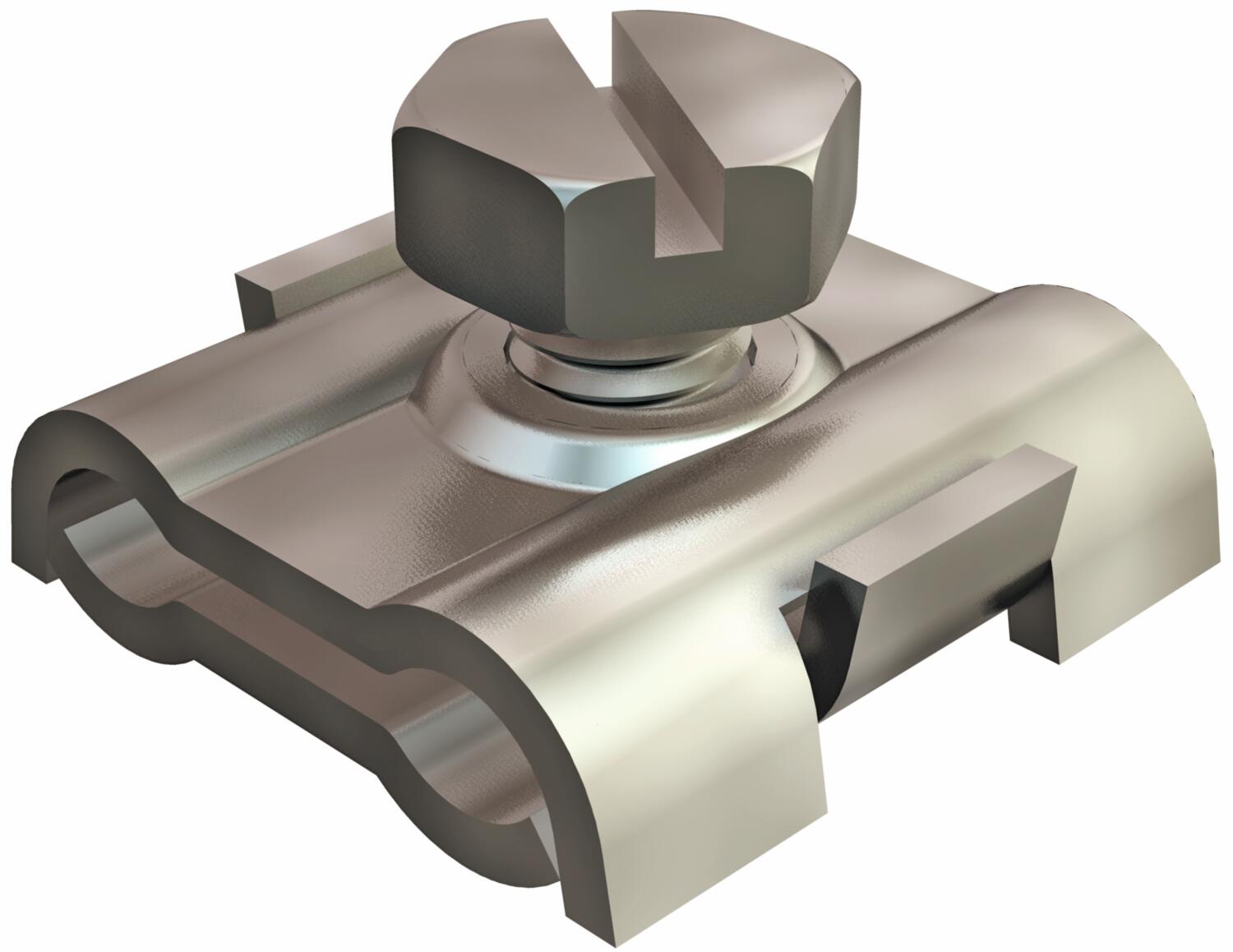

Wire cable clamp A4

Item no. 5305016 | EAN 4012195901785

5305016 / 261 3-6 A4
3 mm
6 mm
Product description

Product description

The cable and pipe fastenings of the special system include cable ties, fastening straps and installation strips, with which cable and pipe installations can be fastened to cable support systems such as cable or mesh cable trays or other mounting constructions. A complete tensioning wire system to suspend and catch cable weights is also a component part of the special system.

  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

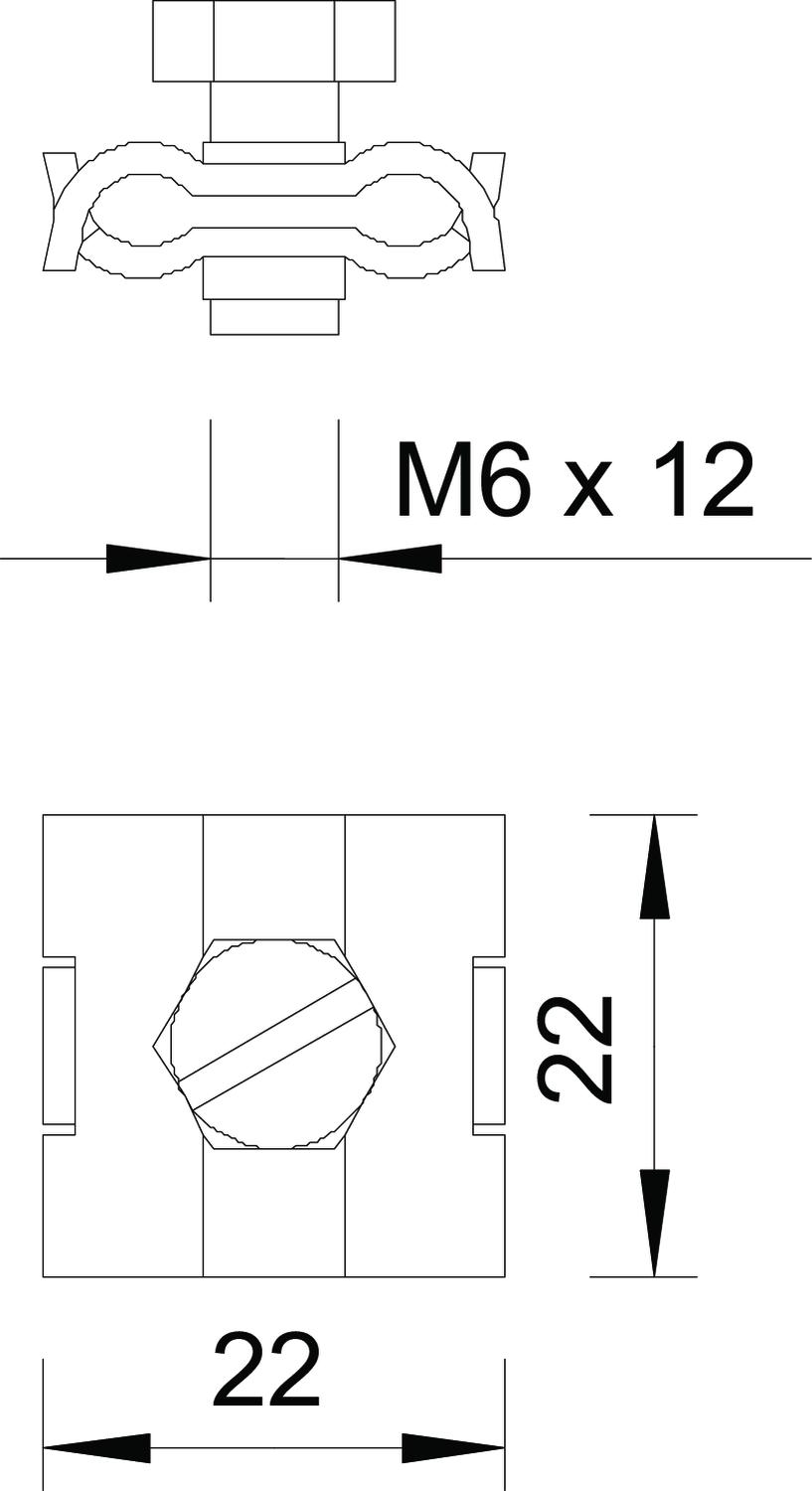

Bolt M6x12
Dimension 3-6mm
for cable diameter, max. 6 mm
for cable diameter, min. 3 mm
Material Stainless steel
Surface Bright, treated
Version for Not insulated
All types

All types

Types for cable diameter, min. for cable diameter, max. Item no. Quantity SSU
261 3-6 A4 3 mm 6 mm 5305016
100 piece
