Wire cable clamp A4

Item no. 5302188 | EAN 4012195901389

Item no. / Types

for cable diameter, min.

Product description

Product description

Wire cable clamp for fastening steel wire tensioning ropes.

Technical data

Technical data

Dimension	10mm
for cable diameter, min.	10 mm
Material	Stainless steel

Surface	Bright, treated
Version for	Not insulated

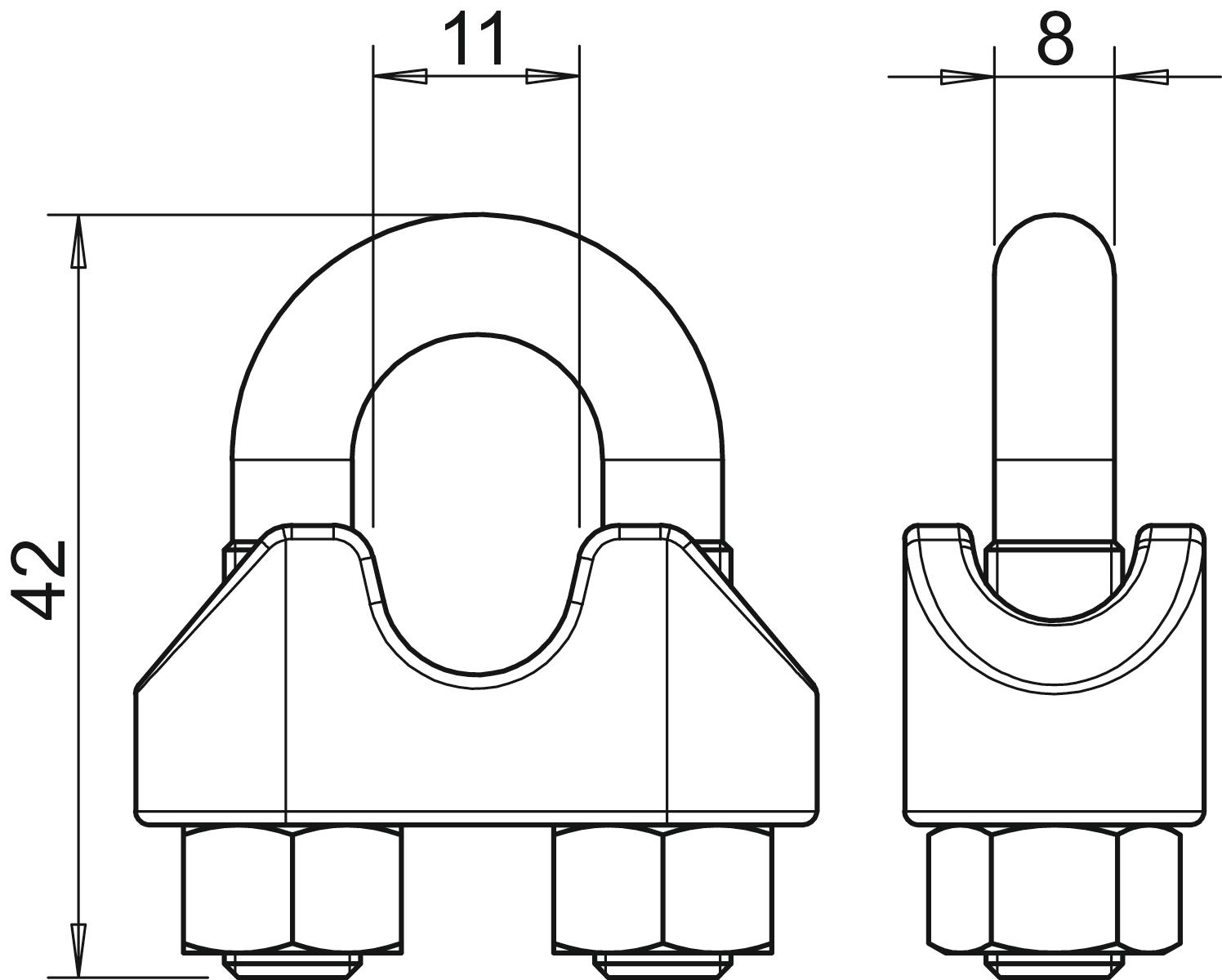

Dimensions

Dimension A	42 mm
Dimension B	11 mm

Dimension C	8 mm

All types

All types

Types	for cable diameter, min.	Item no.	Quantity	SSU
947 3 A4	3 mm	5302170	piece	25 piece
947 5 A4	5 mm	5302174	piece	25 piece
947 6 A4	6 mm	5302178	piece	25 piece
947 8 A4	8 mm	5302182	piece	10 piece
947 10 A4	10 mm	5302188	piece	10 piece

Downloads

Data sheet 947 10 A4 / 5302188 , 0.23MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity Declaration of conformity ,

Download

Declaration of conformity Declaration of conformity ,

Download

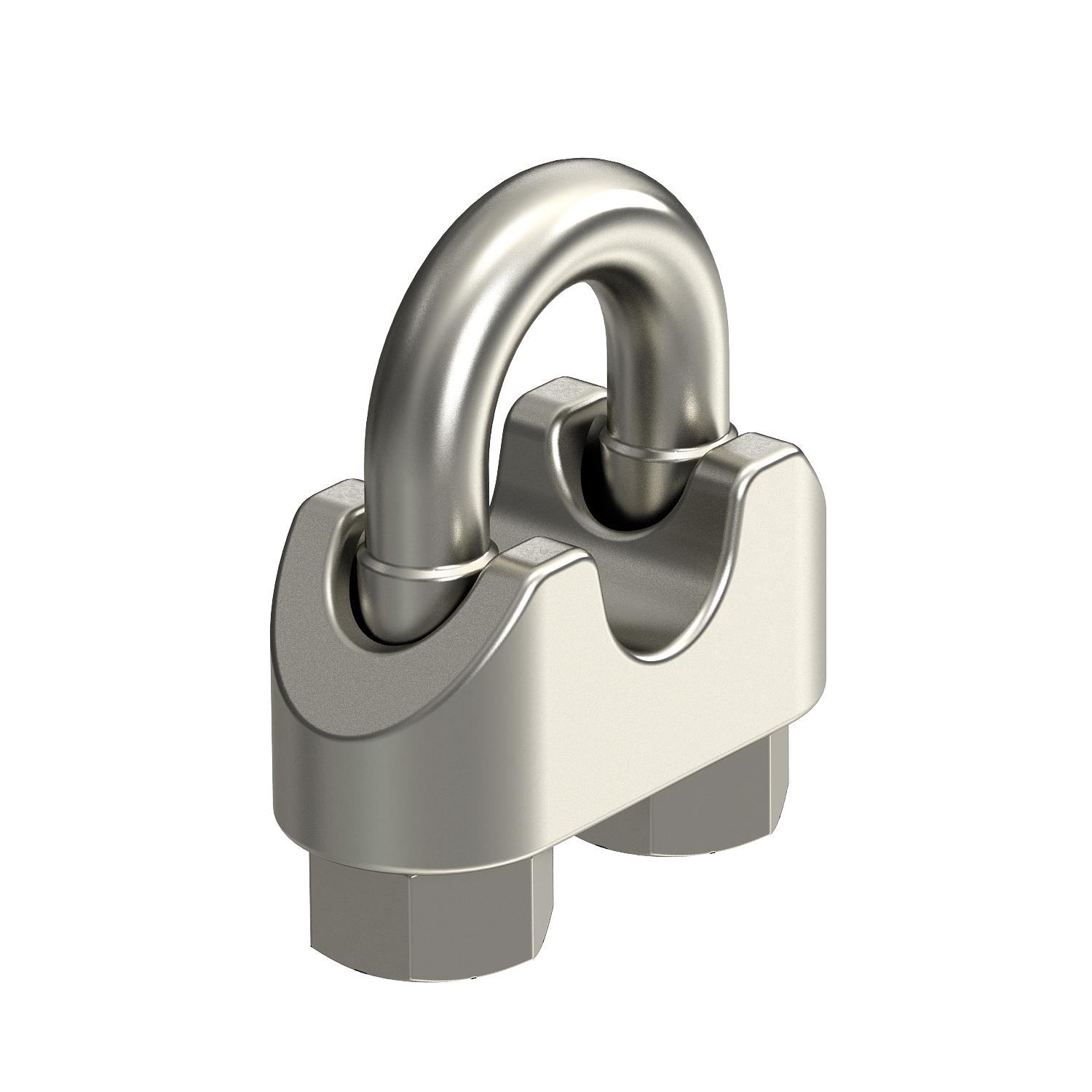

Product graphic 947 10 A4 / 5302188, 82.03 kB, jpg

Scale drawing 947 10 A4 / 5302188, 87.52 kB, jpg

947 10 A4 / 5302188
