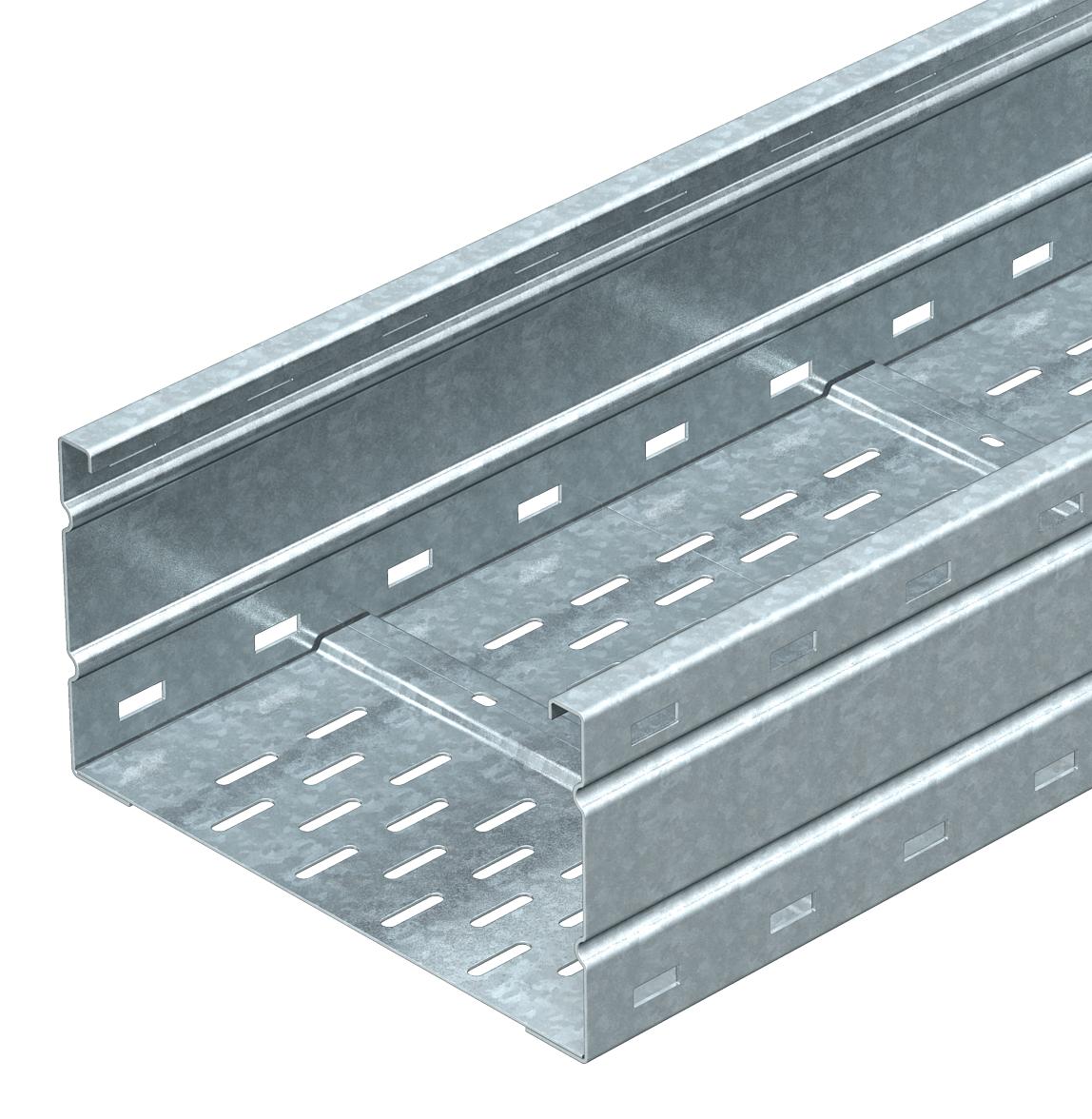

Wide span cable tray WKSG 160 FT

Item no. / Types

Maintain electrical functions	no

Length	6000 mm

Width

Plate thickness	2 mm

Product description

Product description

Wide span cable tray system, perforated, with a side height of 160 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

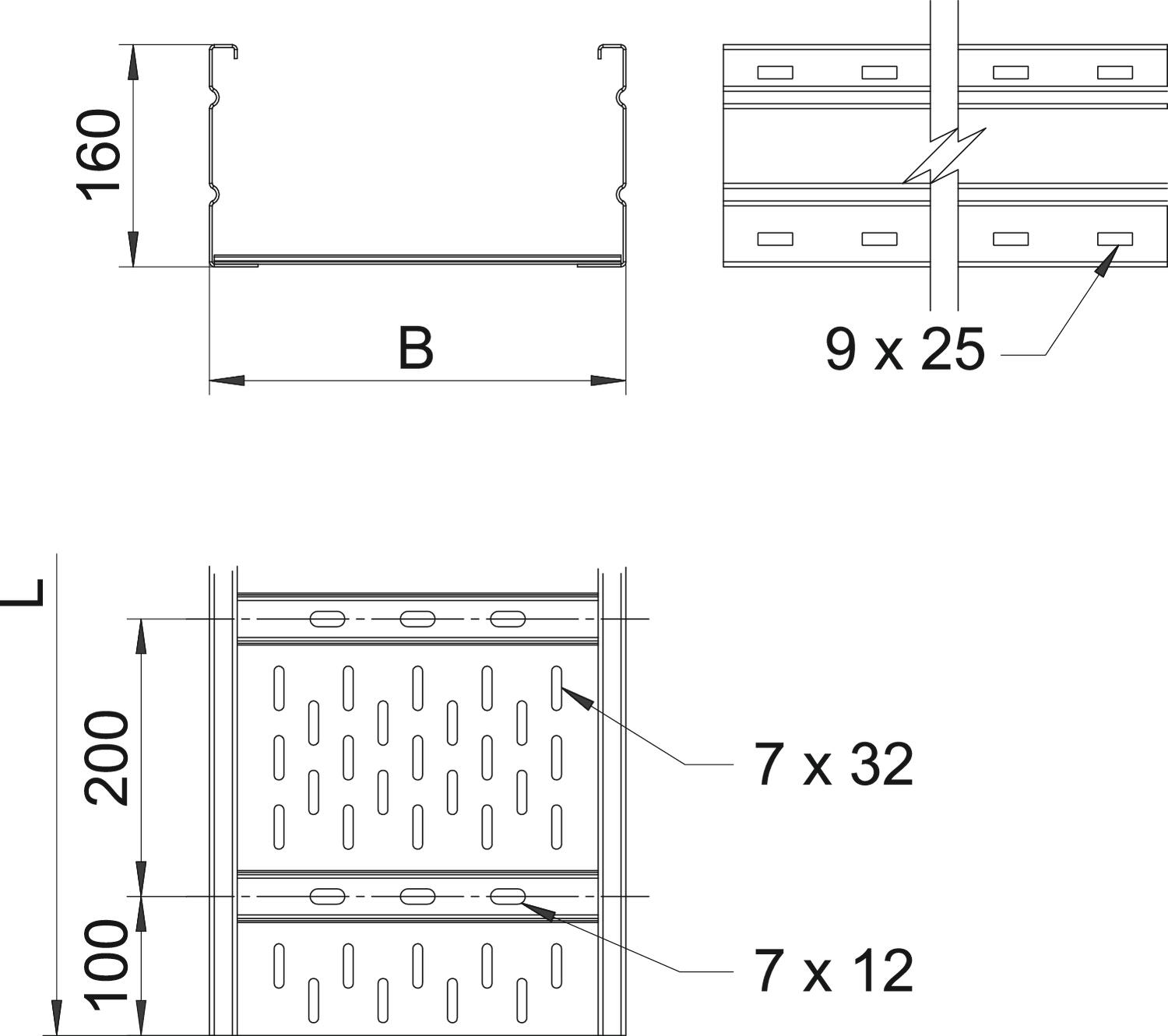

Technical data

Colour	zinc
Connector version	Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate	19,7648 kg CO₂e / 1 Meter
Dimension	200x6000
Dimension	160x200x6000
Dimension B	200 mm
Dimension L	6000 mm
Height	160 mm
Length	6000 mm
Magnetic shield insulation with cover	50 dB
Magnetic shield insulation without cover	20 dB
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
Plate thickness	2 mm
Rustproof steel, pickled	no

Side perforation	yes

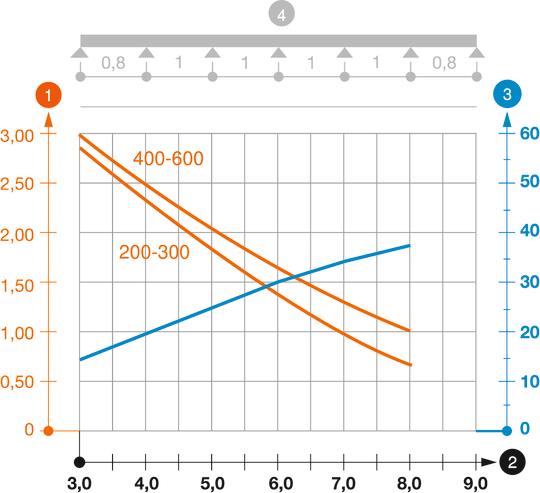

Support spacing 3.0 m	2,9 kN/m
Support spacing 3.5 m	2,59 kN/m
Support spacing 4.0 m	2,3 kN/m
Support spacing 4.5 m	2,04 kN/m
Support spacing 5.0 m	1,8 kN/m
Support spacing 6.0 m	1,4 kN/m
Support spacing 7.0 m	1 kN/m
Support spacing 8.0 m	0,7 kN/m
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	30200 mm²
Usable cross-section	302 cm²
Usable length	6000 mm
Wide-span version	yes
Width	200 mm

Technical data

All types

Types	Maintain electrical functions	Length	Width	Plate thickness	Item no.	Quantity	SSU
WKSG 162 FT	no	6000 mm	200 mm	2 mm	6098550	m	6 m
WKSG 163 FT	no	6000 mm	300 mm	2 mm	6098554	m	6 m
WKSG 164 FT	no	6000 mm	400 mm	2 mm	6098558	m	6 m
WKSG 165 FT	no	6000 mm	500 mm	2 mm	6098562	m	6 m
WKSG 166 FT	no	6000 mm	600 mm	2 mm	6098566	m	6 m

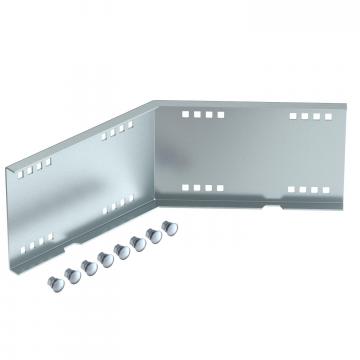

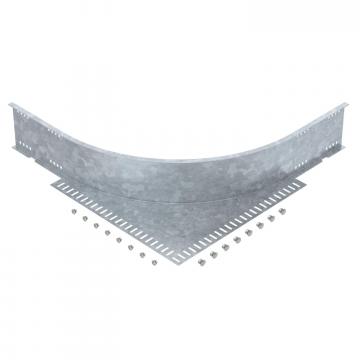

Accessories

Products	Types	Item no.	Quantity	SSU

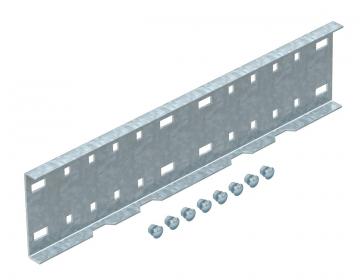

Straight connector FT	WRVL 110 FT	6091180	piece	2 piece

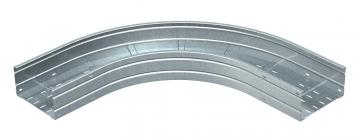

90° bend 160 FT	WRB 90 162 FT	6098730	piece	1 piece

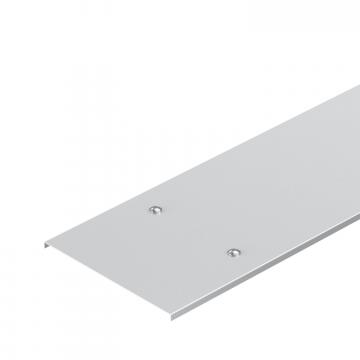

DD cover with turn buckle	WDRL 1116 20 DD	6227600	m	3 m

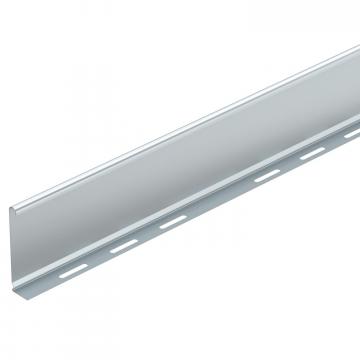

Separating retainer 110 FS	TSG 110 FS	6062122	m	3 m

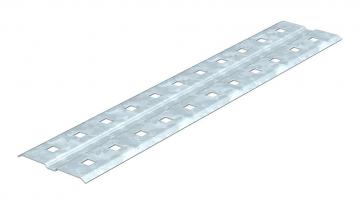

Joint plate DD	SSLB 200 DD	7070314	piece	20 piece
