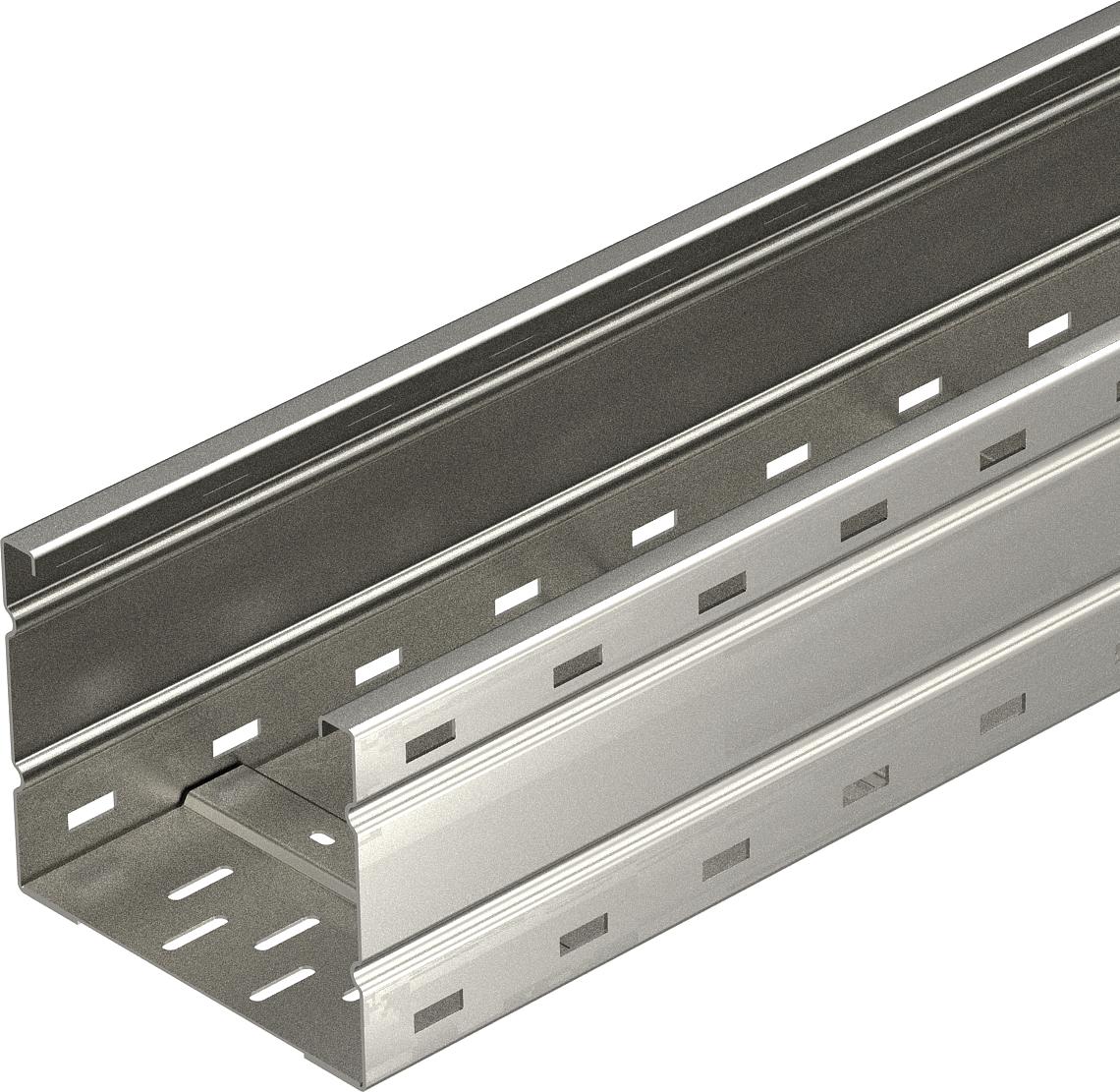

Wide span cable tray WKSG 160 A2

Item no. / Types

Maintain electrical functions	no

Length	6000 mm

Width

Plate thickness	2 mm

Product description

Product description

Wide span cable tray system, perforated, with a side height of 160 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Connector version	Without connectors
Dimension	160x200x6000
Dimension	160 X 200
Dimension B	200 mm
Dimension L	6000 mm
Height	160 mm
Length	6000 mm
Magnetic shield insulation with cover	50 dB
Magnetic shield insulation without cover	20 dB
Maintain electrical functions	no
Material	Stainless steel
Mounting perforation in base	yes
Plate thickness	2 mm
Rustproof steel, pickled	no
Side perforation	yes

Support spacing 3.0 m	2,9 kN/m
Support spacing 3.5 m	2,59 kN/m
Support spacing 4.0 m	2,3 kN/m
Support spacing 4.5 m	2,04 kN/m
Support spacing 5.0 m	1,8 kN/m
Support spacing 6.0 m	1,4 kN/m
Support spacing 7.0 m	1 kN/m
Support spacing 8.0 m	0,7 kN/m
Surface	Bright, treated
Type of connector, cable support system	Screwed
Usable cross-section	302 cm²
Usable cross-section	30200 mm²
Usable length	6000 mm
Wide-span version	yes
Width	200 mm

All types

Types	Maintain electrical functions	Length	Width	Plate thickness	Item no.	Quantity	SSU
WKSG 162 A2	no	6000 mm	200 mm	2 mm	6098571	m	6 m

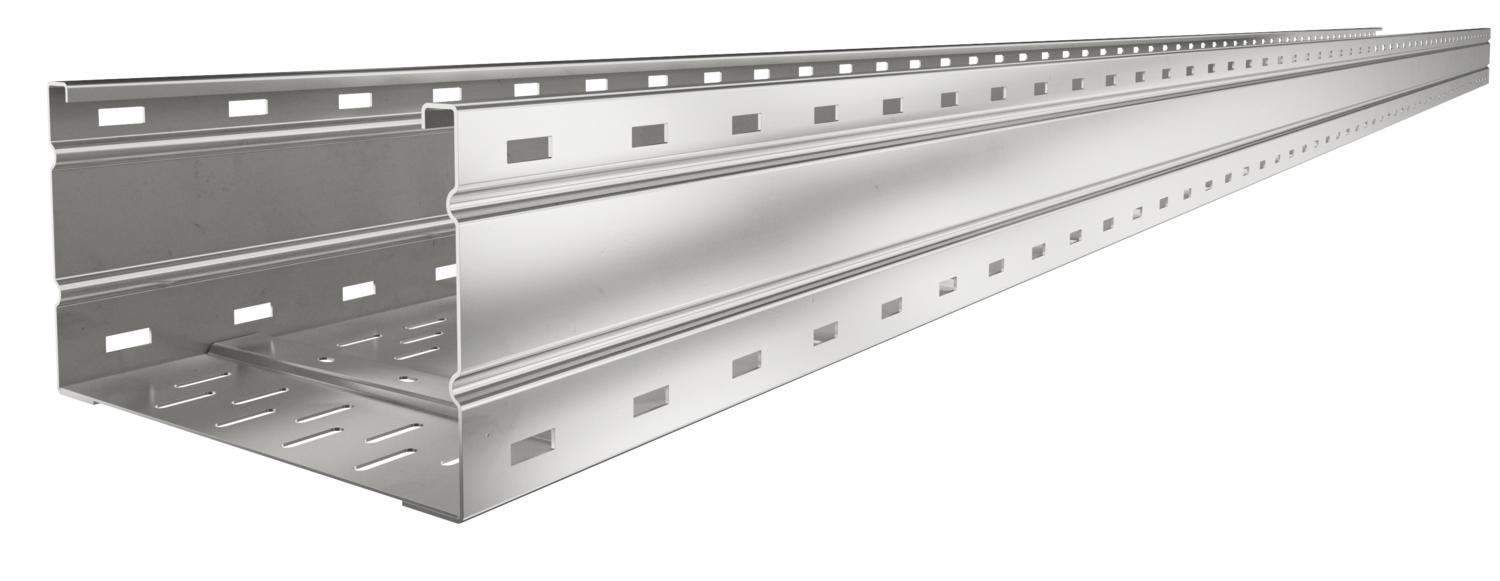

WKSG 163 A2	no	6000 mm	300 mm	2 mm	6098573	m	6 m
WKSG 164 A2	no	6000 mm	400 mm	2 mm	6098575	m	6 m
WKSG 165 A2	no	6000 mm	500 mm	2 mm	6098577	m	6 m
WKSG 166 A2	no	6000 mm	600 mm	2 mm	6098579	m	6 m

Accessories

Products	Types	Item no.	Quantity	SSU

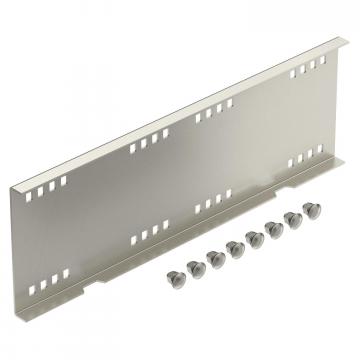

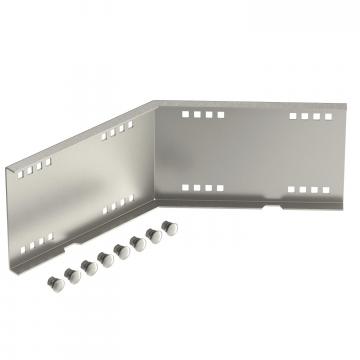

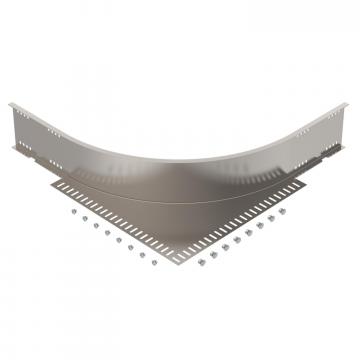

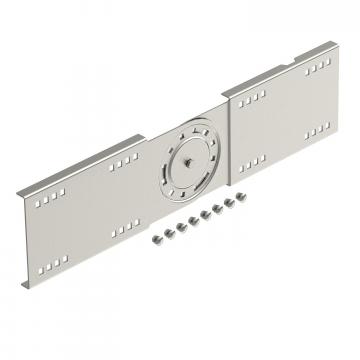

Straight connector A2	WRVL 160 A2	6227724	piece	2 piece
Cover with turn buckle A2	WDRL 1116 20 A2	6227360	m	3 m
Barrier strip 110 A2	TSG 110 A2	6062255	m	3 m
Joint plate A2	SSLB 200 A2	7070361	piece	20 piece
