- Product description
-
Product description

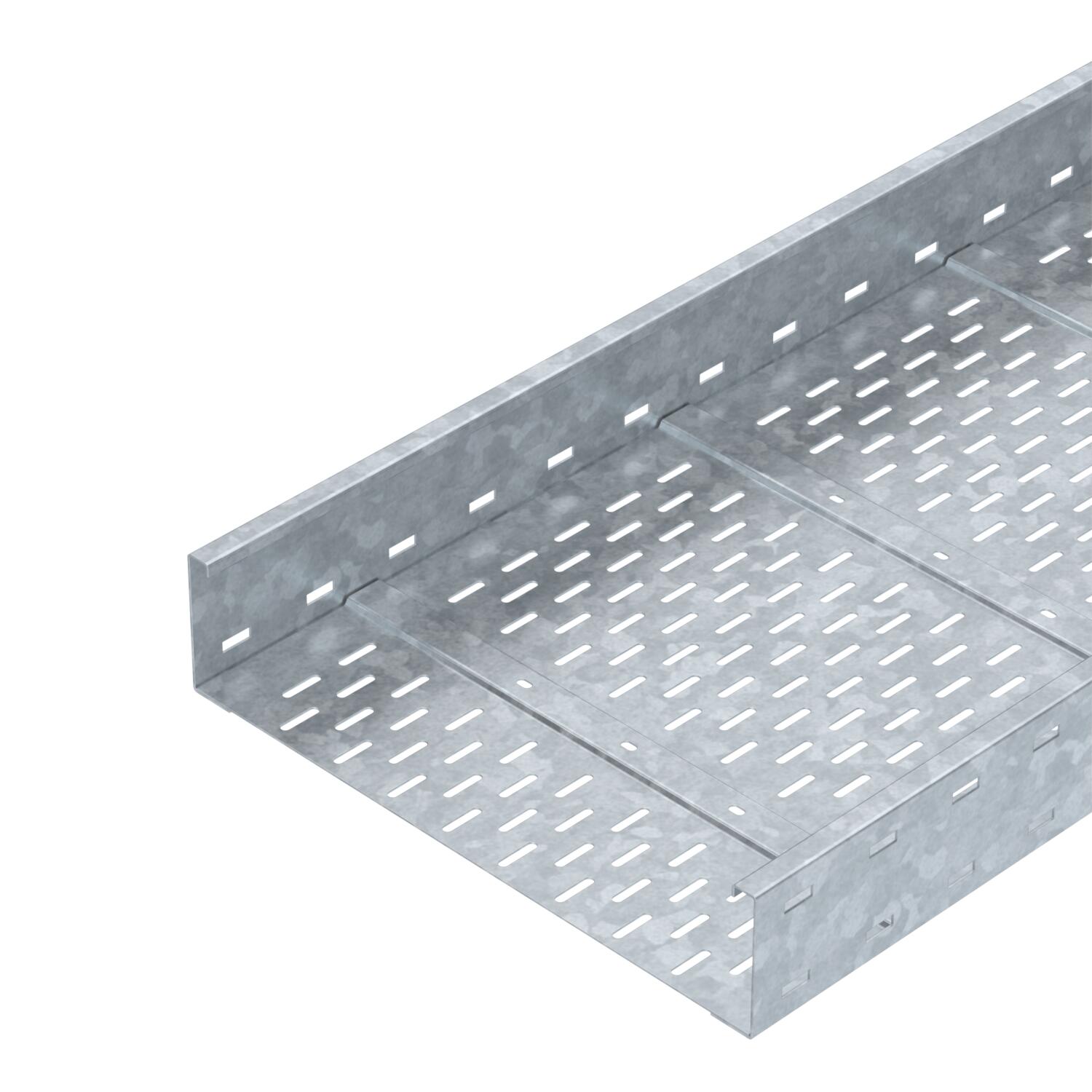

Wide span cable tray system, perforated, with a side height of 110 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
- Technical data
-
Technical data

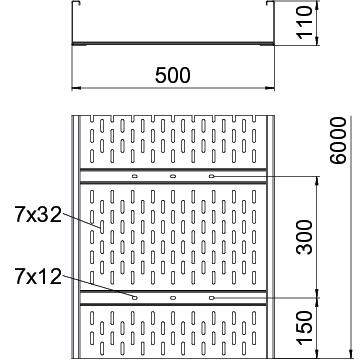

Connector version Without connectors Dimension 110 x 500 Dimension 110x500x6000 Dimension B 500 mm Dimension L 6000 mm Height 110 mm Length 6000 mm Magnetic shield insulation with cover 50 dB Magnetic shield insulation without cover 20 dB Maintain electrical functions no Material Steel Mounting perforation in base yes Plate thickness 2 mm Rustproof steel, pickled no Side perforation yes Support spacing 3.0 m 2,9 kN/m Support spacing 3.5 m 2,43 kN/m Support spacing 4.0 m 2 kN/m Support spacing 4.5 m 1,72 kN/m Support spacing 5.0 m 1,5 kN/m Support spacing 6.0 m 1 kN/m Support spacing 7.0 m 0,7 kN/m Support spacing 8.0 m 0,4 kN/m Surface Hot-dip galvanised Type of connector, cable support system Screwed Usable cross-section 511 cm² Usable cross-section 51100 mm² Usable length 6000 mm Wide-span version yes Width 500 mm Technical data
Load diagram, wide span cable tray, type WKSG 110
- Permitted cable tray/ladder load in kN/m without man load
- Support width in m
- Rail bend in mm at permitted kN/m
- Load scheme during testing
- Load curve with cable tray/ladder width in mm
- Strut bend curve according to support width
- All types
- Downloads
-
Data sheet WKSG 150 FT / 6098153 , 0.36MB , pdfBrochure Wide span systems , 2.10MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity WKSG 150 FT / 6098153 , 0.10MB , pdfUK Declaration of Conformity WKSG 150 FT / 6098153 , 0.09MB , pdfREACH Declaration of conformity WKSG 150 FT / 6098153 , 0.12MB , pdfRoHS Declaration of conformity WKSG 150 FT / 6098153 , 0.12MB , pdfEnvironmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdfMounting instructions Weitspannkabelrinnen , 10.82MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
