Product description

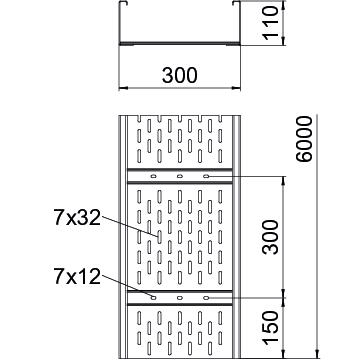

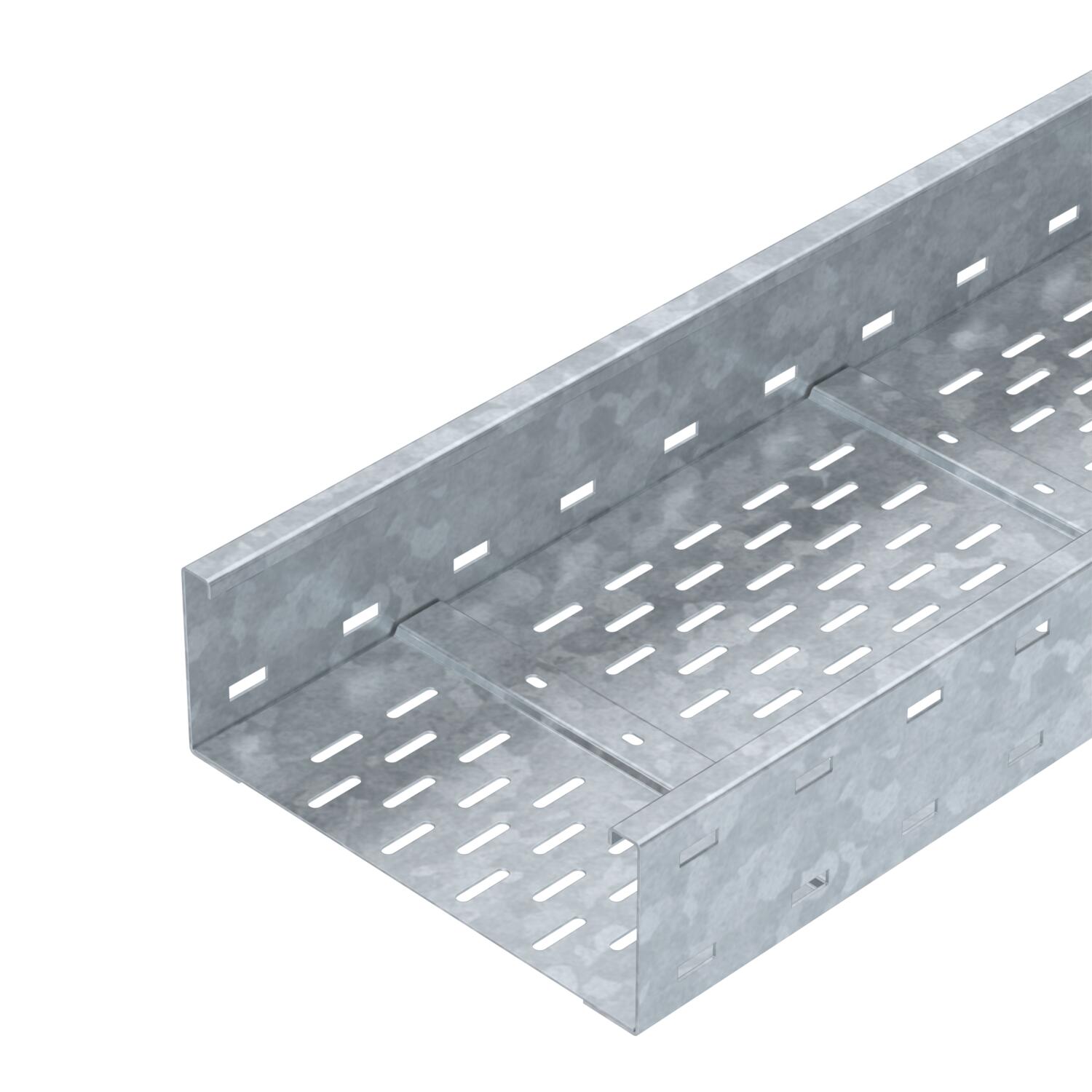

Wide span cable tray system, perforated, with a side height of 110 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
-
- Technical data
-
Technical data
Connector version Without connectors Dimension 110x300x6000 Dimension 110 x 300 Magnetic shield insulation with cover 50 dB Magnetic shield insulation without cover 20 dB Maintain electrical functions no Material Steel Mounting perforation in base yes Plate thickness 2 mm Rustproof steel, pickled no Side perforation yes Surface Hot-dip galvanised Type of connector, cable support system Screwed Usable cross-section 30500 mm² Usable cross-section 305 cm² Usable length 6000 mm Wide-span version yes Dimensions
Dimension B 300 mm Dimension L 6000 mm Height 110 mm Length 6000 mm Width 300 mm Loads
Support spacing 3.0 m 2,5 kN/m Support spacing 3.5 m 2,01 kN/m Support spacing 4.0 m 1,6 kN/m Support spacing 4.5 m 1,32 kN/m Support spacing 5.0 m 1,1 kN/m Support spacing 6.0 m 0,75 kN/m Support spacing 7.0 m 0,45 kN/m Support spacing 8.0 m 0,2 kN/m Technical data
Load diagram, wide span cable tray, type WKSG 110
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
