Wide span cable tray WKSG 110 FS

Item no. / Types

Maintain electrical functions	no

Length	6000 mm

Width

Plate thickness	2 mm

Product description

Product description

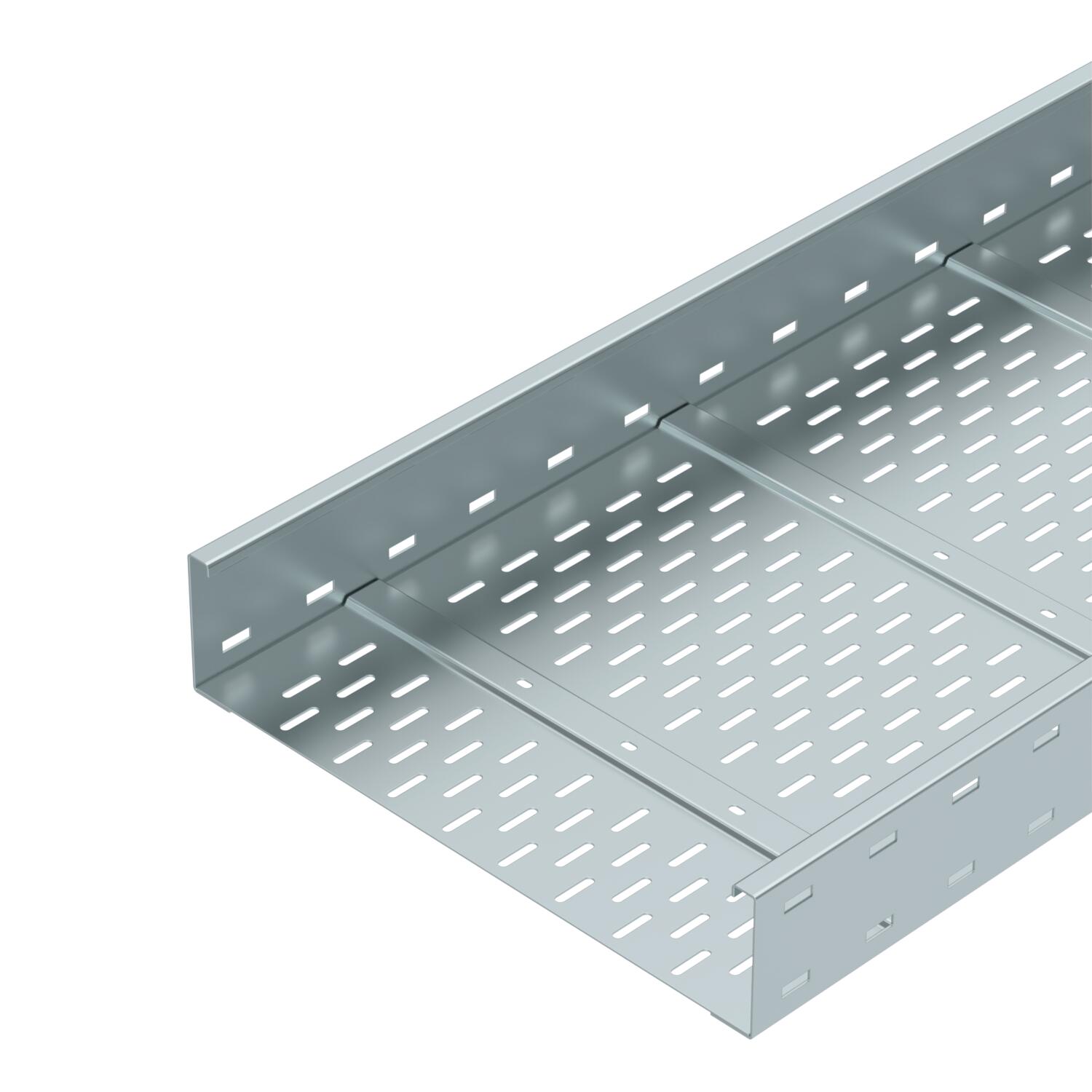

Wide span cable tray system, perforated, with a side height of 110 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Colour	zinc
Connector version	Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate	25,4908 kg CO₂e / 1 Meter

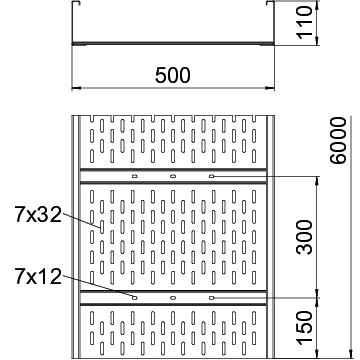

Dimension	110x500x6000
Dimension	500 x 110
Dimension B	500 mm
Dimension H	10 mm
Dimension L	6000 mm
Height	110 mm
Length	6000 mm
Magnetic shield insulation with cover	50 dB
Magnetic shield insulation without cover	20 dB
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
Plate thickness	2 mm
Rustproof steel, pickled	no

Side perforation	yes
Support spacing 3.0 m	2,9 kN/m
Support spacing 3.5 m	2,43 kN/m
Support spacing 4.0 m	2 kN/m
Support spacing 4.5 m	1,72 kN/m
Support spacing 5.0 m	1,5 kN/m
Support spacing 6.0 m	1 kN/m
Support spacing 7.0 m	0,7 kN/m
Support spacing 8.0 m	0,4 kN/m
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	51100 mm²
Usable cross-section	511 cm²
Usable length	6000 mm
Wide-span version	yes
Width	500 mm

Technical data

All types

Types	Maintain electrical functions	Length	Width	Plate thickness	Item no.	Quantity	SSU
WKSG 120 FS	no	6000 mm	200 mm	2 mm	6098111	m	6 m
WKSG 130 FS	no	6000 mm	300 mm	2 mm	6098115	m	6 m
WKSG 140 FS	no	6000 mm	400 mm	2 mm	6098119	m	6 m
WKSG 150 FS	no	6000 mm	500 mm	2 mm	6098123	m	6 m
WKSG 160 FS	no	6000 mm	600 mm	2 mm	6098127	m	6 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FS	WRVL 110 FS	6091164	piece	2 piece
90° bend 110 FS	WRB 90 150 FS	6098316	piece	1 piece
Cover incl. turn buckle FS	WDRL 1116 50 FS	6227457	m	3 m
Separating retainer 85 FS	TSG 85 FS	6062114	m	3 m
Joint plate FS	SSLB 500 FS	7070225	piece	20 piece
