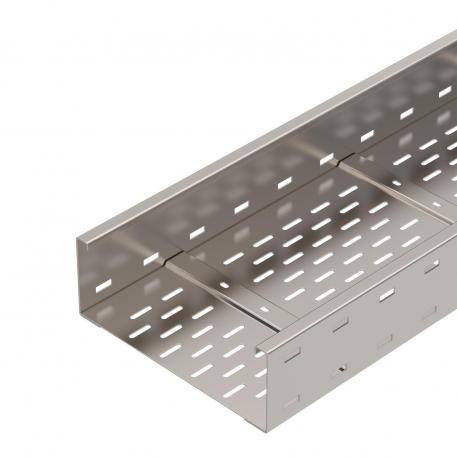

Wide span cable tray WKSG 110 A2

Item no. / Types

Maintain electrical functions	no

Length	6000 mm

Width

Plate thickness	2 mm

Product description

Product description

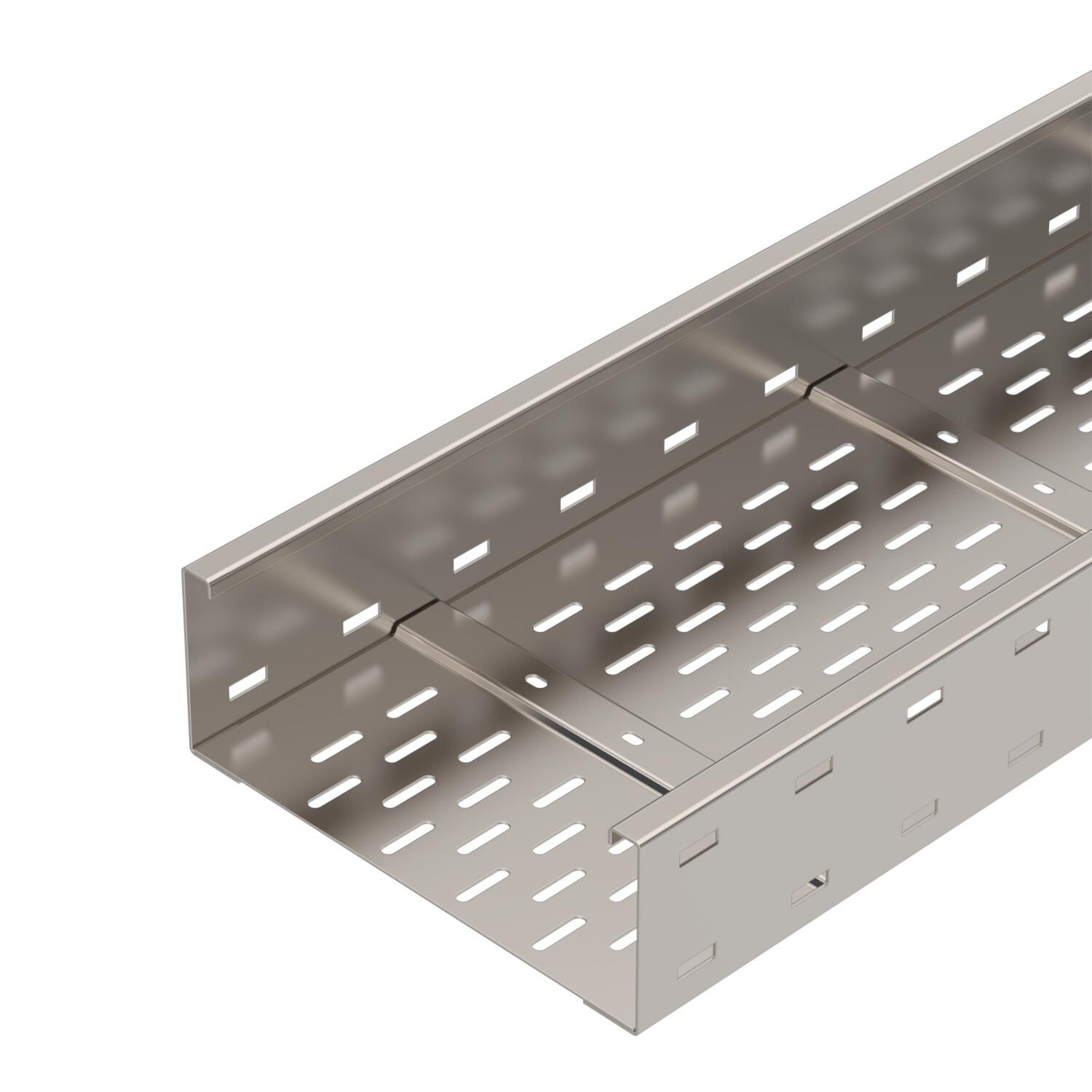

Wide span cable tray system, perforated, with a side height of 110 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Colour	stainless steel
Connector version	Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate	42,721 kg CO₂e / 1 Meter

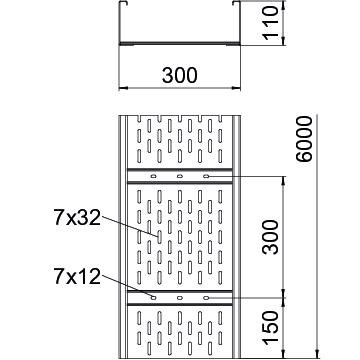

Dimension	110x300x6000
Dimension	110 X 300
Dimension B	300 mm
Dimension L	6000 mm
Height	110 mm
Length	6000 mm
Magnetic shield insulation with cover	50 dB
Magnetic shield insulation without cover	20 dB
Maintain electrical functions	no
Material	Stainless steel
Mounting perforation in base	yes
Plate thickness	2 mm
Rustproof steel, pickled	no

Side perforation	yes
Support spacing 3.0 m	2,5 kN/m
Support spacing 3.5 m	2,01 kN/m
Support spacing 4.0 m	1,6 kN/m
Support spacing 4.5 m	1,32 kN/m
Support spacing 5.0 m	1,1 kN/m
Support spacing 6.0 m	0,75 kN/m
Support spacing 7.0 m	0,45 kN/m
Support spacing 8.0 m	0,2 kN/m
Surface	Bright, treated
Type of connector, cable support system	Screwed
Usable cross-section	30500 mm²
Usable cross-section	305 cm²
Usable length	6000 mm
Wide-span version	yes
Width	300 mm

Technical data

All types

Types	Maintain electrical functions	Length	Width	Plate thickness	Item no.	Quantity	SSU
WKSG 120 A2	no	6000 mm	200 mm	2 mm	6098161	m	6 m
WKSG 130 A2	no	6000 mm	300 mm	2 mm	6098165	m	6 m
WKSG 140 A2	no	6000 mm	400 mm	2 mm	6098169	m	6 m
WKSG 150 A2	no	6000 mm	500 mm	2 mm	6098173	m	6 m
WKSG 160 A2	no	6000 mm	600 mm	2 mm	6098177	m	6 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight connector A2	WRVL 110 A2	6091229	piece	2 piece
Barrier strip 85 A2	TSG 85 A2	6062173	m	3 m
Cover with turn buckle A2	WDRL 1116 30 A2	6227362	m	3 m
Joint plate A2	SSLB 300 A2	7070365	piece	20 piece
