Wide span cable ladder WKLG 160 FT 6000 | 200 | 2 | no

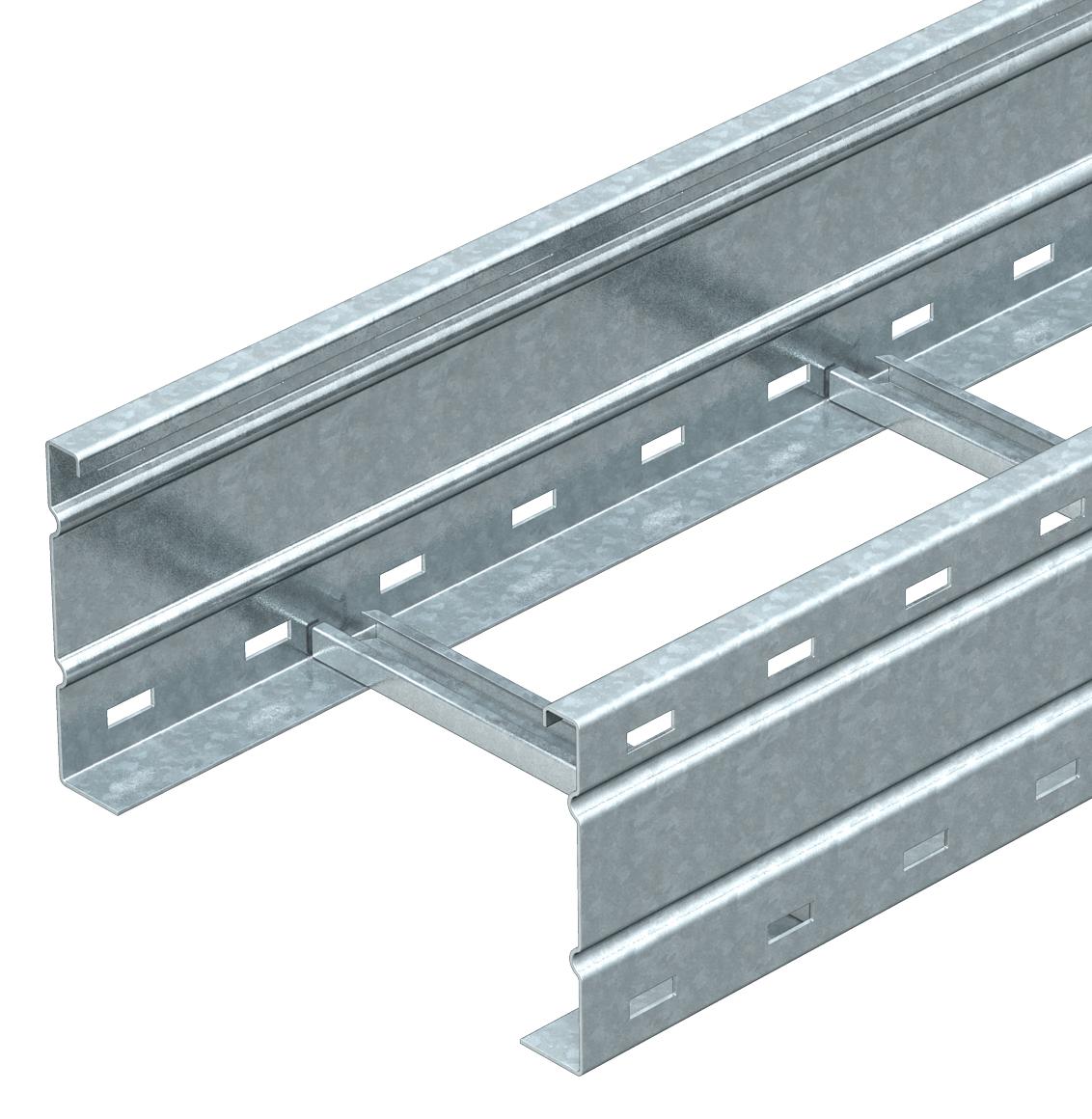

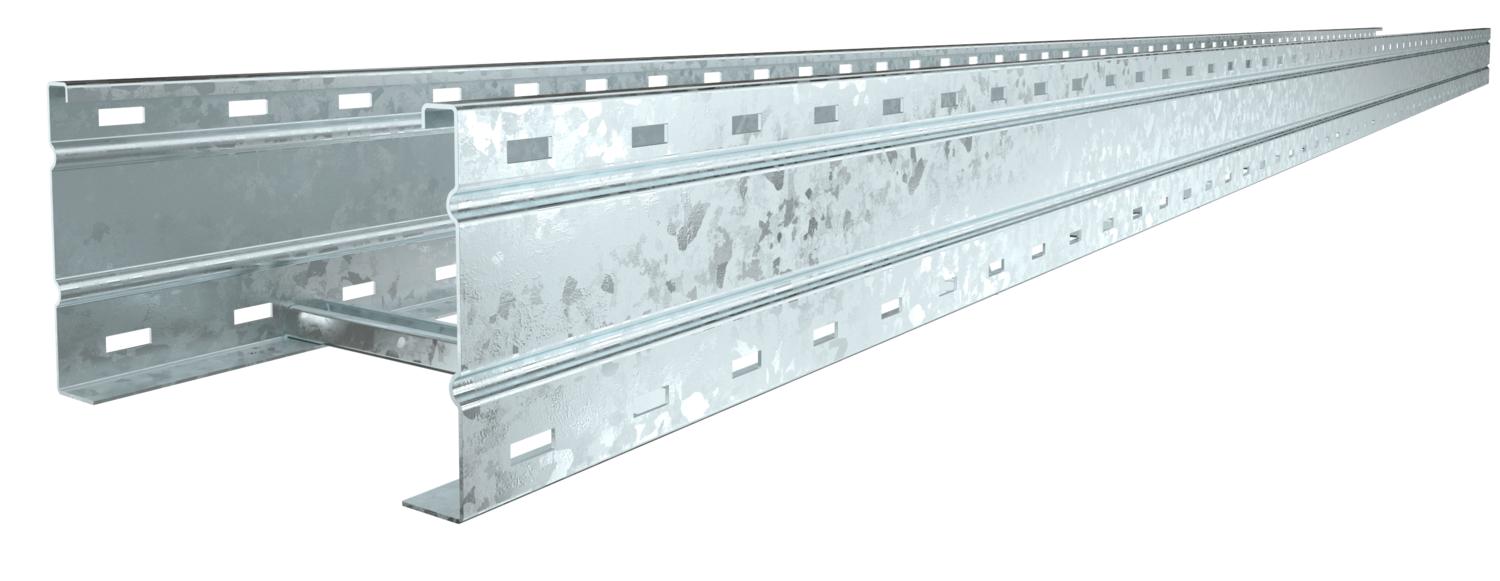

Wide span cable ladder WKLG 160 FT

Item no. 6227120 | EAN 4012196169399

Item no. / Types

Length	6000 mm

Width

Rail thickness	2 mm

Maintain electrical functions	no

Product description

Product description

Wide span cable ladder with perforated side rail of side height of 160 mm. Fastening of cables with clamp clip, type 2056.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Technical data

Technical data

Dimension	160 x 200
Dimension	160x200x6000
Maintain electrical functions	no
Material	Steel
Rail thickness	2 mm
Rustproof steel, pickled	no

Side perforation	yes
Surface	Hot-dip galvanised
Usable cross-section	282 cm²
Usable cross-section	28200 mm²
Version of the rungs	Profile unperforated
Wide-span version	yes

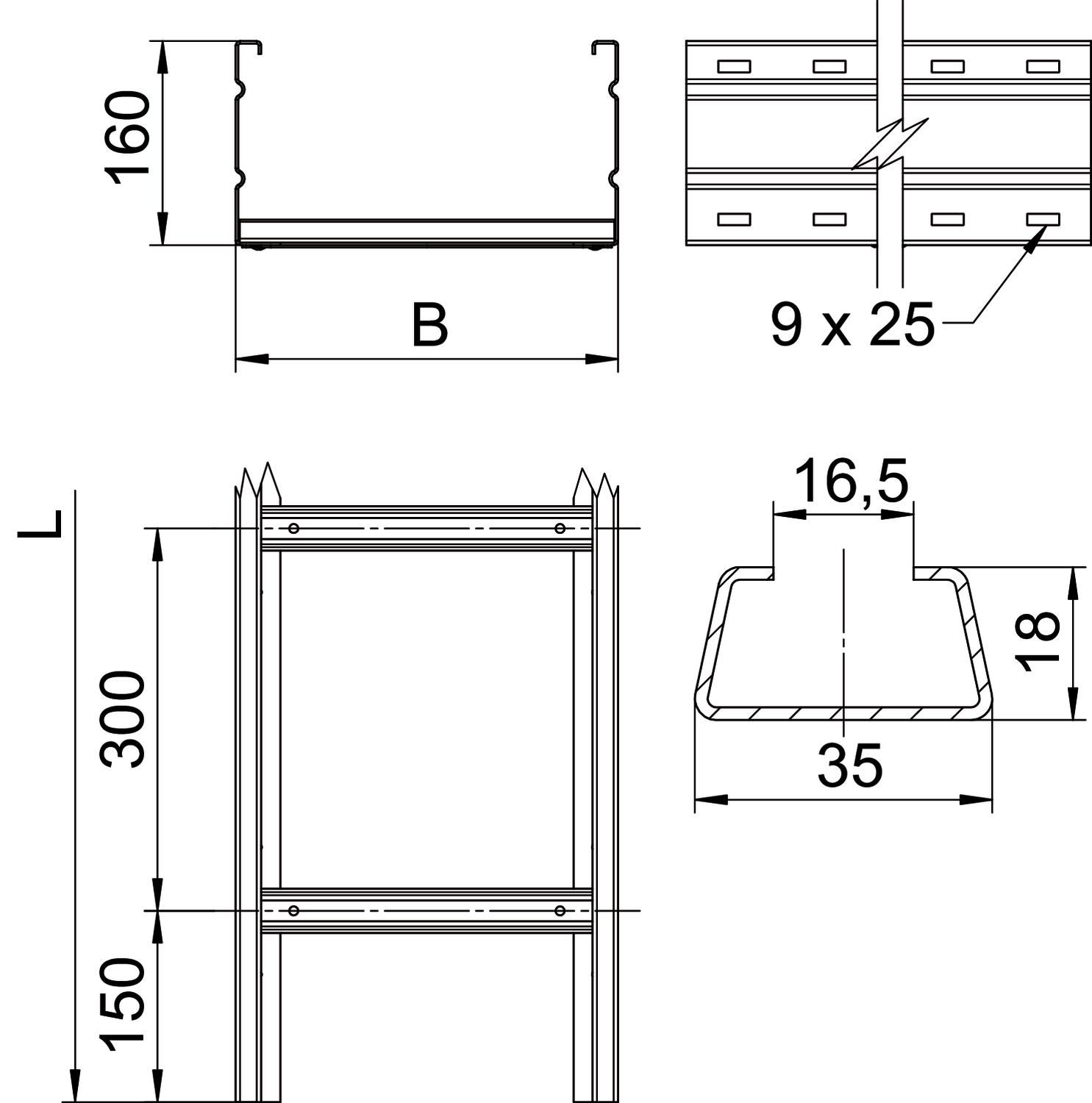

Dimensions

Dimension B	200 mm
Dimension L	6000 mm
Height	160 mm
Length	6000 mm

Length	6000 ft
Rung slot dimension	16,50
Width	200 mm

Loads

Support spacing 3.0 m	2,9 kN/m
Support spacing 3.5 m	2,59 kN/m
Support spacing 4.0 m	2,3 kN/m
Support spacing 4.5 m	2,04 kN/m

Support spacing 5.0 m	1,8 kN/m
Support spacing 6.0 m	1,4 kN/m
Support spacing 7.0 m	1 kN/m
Support spacing 8.0 m	0,7 kN/m

Technical data

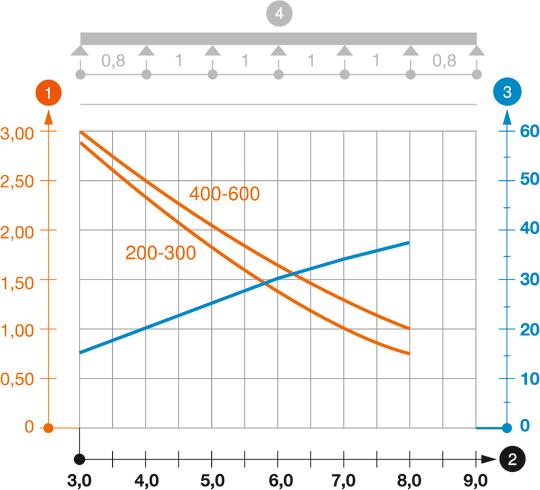

Load diagram, wide span cable ladder, type WKLG 160

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Item no.	Quantity	SSU
WKLG 1620 FT	6000 mm	200 mm	2 mm	no	6227120	m	6 m
WKLG 1630 FT	6000 mm	300 mm	2 mm	no	6227139	m	6 m
WKLG 1640 FT	6000 mm	400 mm	2 mm	no	6227147	m	6 m
WKLG 1650 FT	6000 mm	500 mm	2 mm	no	6227155	m	6 m
WKLG 1660 FT	6000 mm	600 mm	2 mm	no	6227163	m	6 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

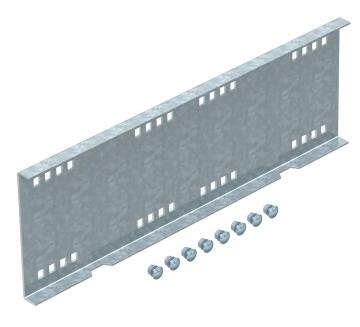

Straight connector FT	WRVL 160 FT	6227716	piece	2 piece

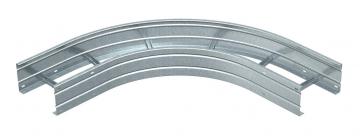

90° bend 160 FT	WLB 90 162 FT	6229425	piece	1 piece
DD cover with turn buckle	WDRL 1116 20 DD	6227600	m	3 m
Barrier strip 110 DD	TSG 110 DD	6062335	m	3 m
