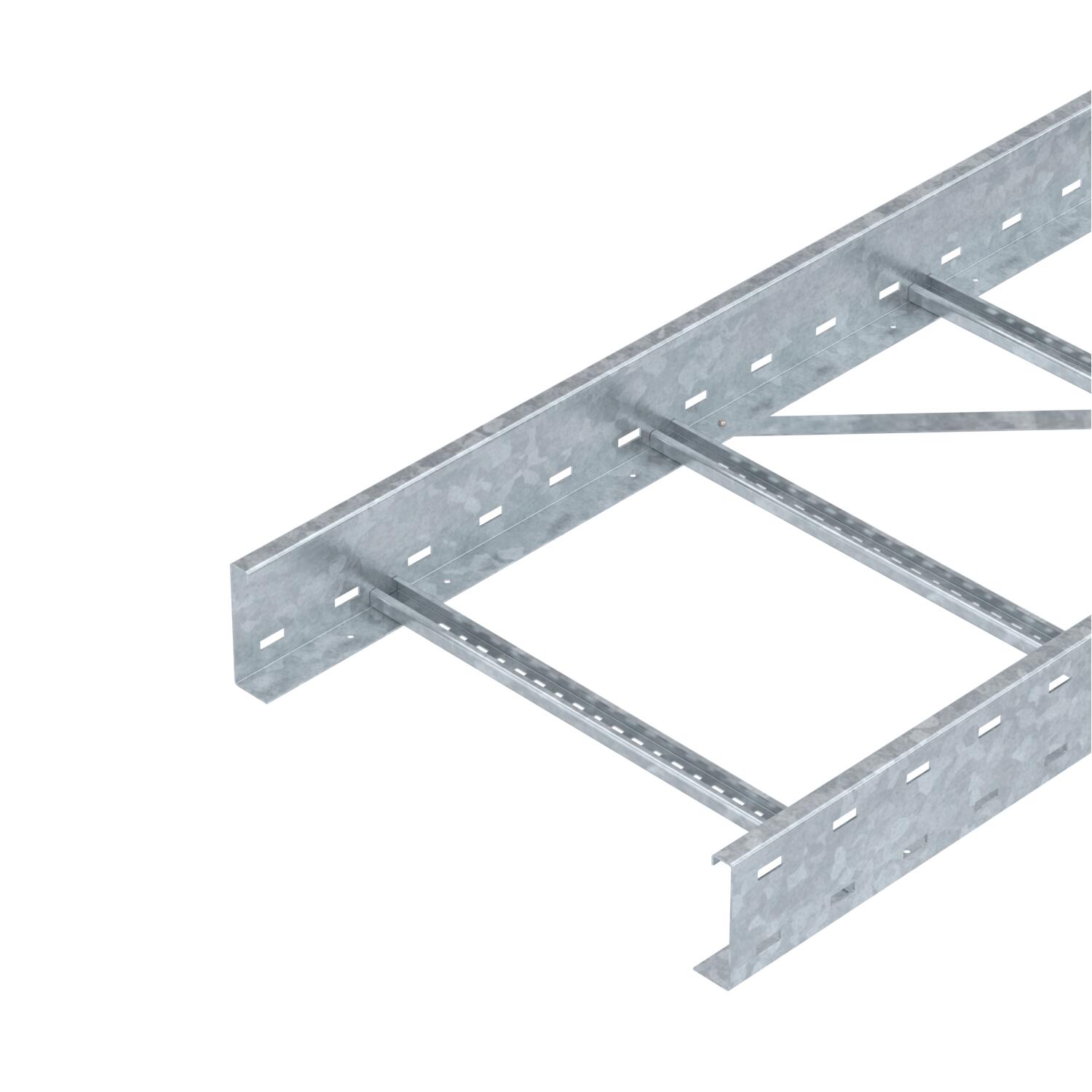

Wide span cable ladder WKLG 110 FT 6000 | 500 | 2 | no

Wide span cable ladder WKLG 110 FT

Item no. 6311071 | EAN 4012196883516

Item no. / Types

Length	6000 mm

Width

Rail thickness	2 mm

Maintain electrical functions	no

Product description

Product description

Wide span cable ladder with perforated side rails of side height of 110 mm. Fastening of cables with clamp clip, type 2056.

Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Technical data

Technical data

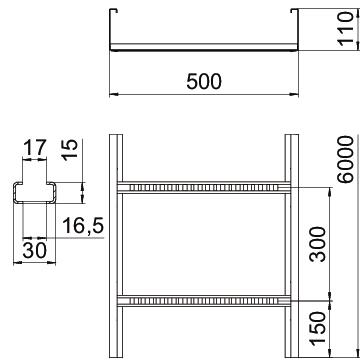

Dimension	110 x 500
Dimension	110x500x6000
Maintain electrical functions	no
Material	Steel
Rail thickness	2 mm
Rustproof steel, pickled	no
Side perforation	yes

Side rail version	Profile (open)
Surface	Hot-dip galvanised
Usable cross-section	471 cm²
Usable cross-section	47100 mm²
Version of the rungs	Profile unperforated
Wide-span version	yes

Dimensions

Dimension B	500 mm
Dimension L	6000 mm
Height	110 mm
Length	6000 ft

Length	6000 mm
Rung slot dimension	17,00
Width	500 mm

Loads

Support spacing 3.0 m	2,9 kN/m
Support spacing 3.5 m	2,48 kN/m
Support spacing 4.0 m	2,1 kN/m
Support spacing 4.5 m	1,78 kN/m

Support spacing 5.0 m	1,5 kN/m
Support spacing 6.0 m	1 kN/m
Support spacing 7.0 m	0,7 kN/m

Technical data

Load diagram, wide span cable ladder, type WKLG 110

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Item no.	Quantity	SSU
WKLG 1120 FT	6000 mm	200 mm	2 mm	no	6311059	m	6 m
WKLG 1130 FT	6000 mm	300 mm	2 mm	no	6311063	m	6 m
WKLG 1140 FT	6000 mm	400 mm	2 mm	no	6311067	m	6 m
WKLG 1150 FT	6000 mm	500 mm	2 mm	no	6311071	m	6 m
WKLG 1160 FT	6000 mm	600 mm	2 mm	no	6311075	m	6 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FT	WRVL 110 FT	6091180	piece	2 piece
90° bend 110 FT	WLB 90 115 FT	6312462	piece	1 piece
DD cover with turn buckle	WDRL 1116 50 DD	6227612	m	3 m
Barrier strip 85 DD	TSG 85 DD	6062331	m	3 m
Drop-out plate FT	LAB 50 FT	6220460	piece	1 piece
