Wide span cable ladder WKLG 110 FS 6000 | 200 | 2 | no

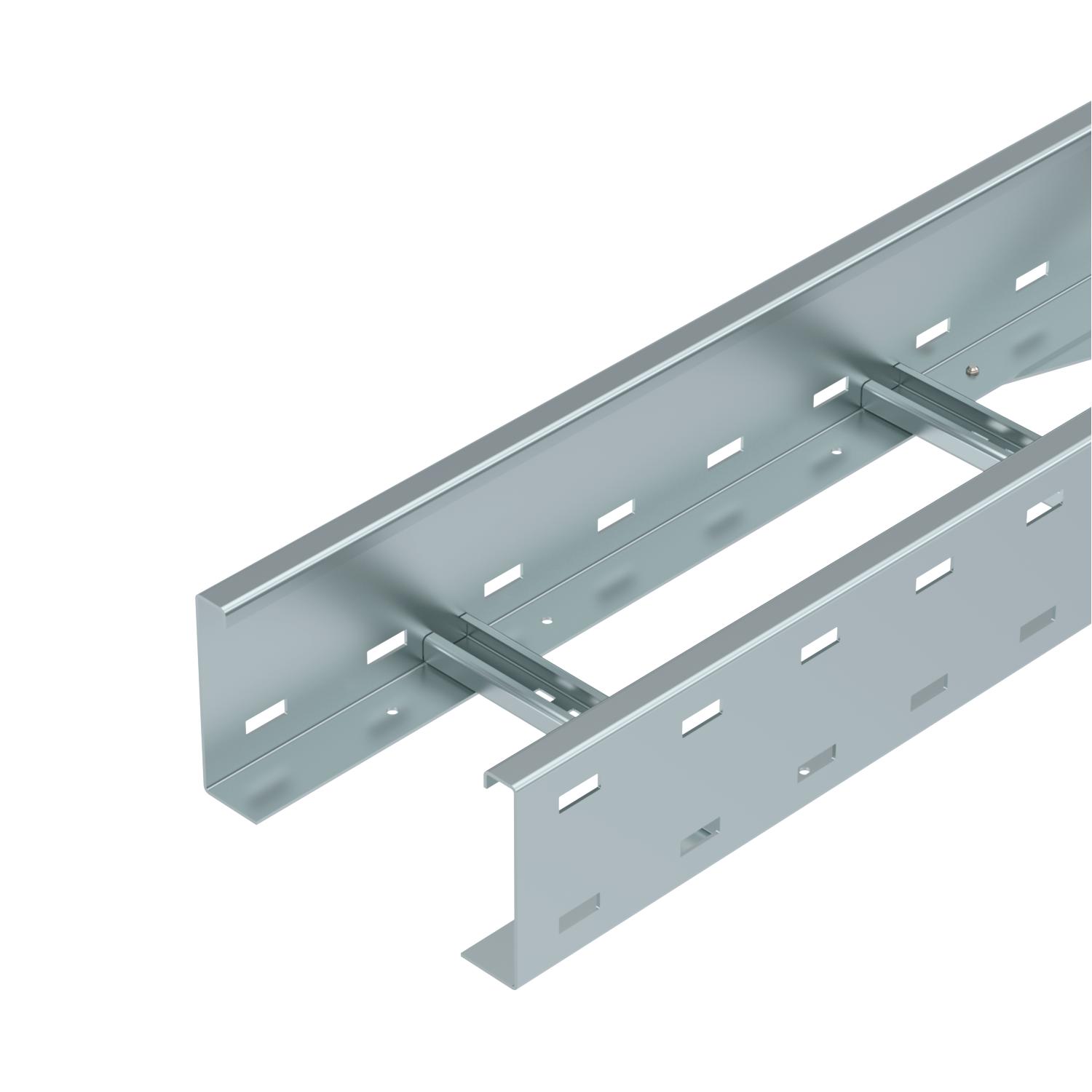

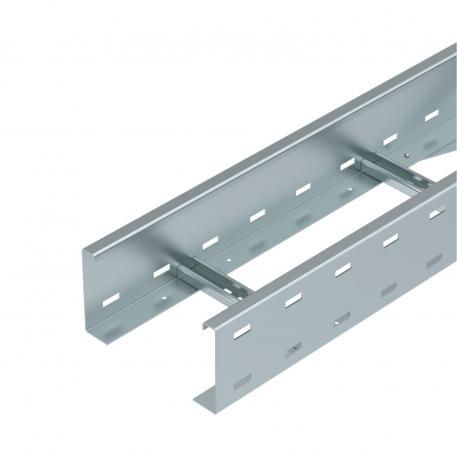

Wide span cable ladder WKLG 110 FS

Item no. 6311008 | EAN 4012196883035

Item no. / Types

Length	6000 mm

Width

Rail thickness	2 mm

Maintain electrical functions	no

Product description

Product description

Wide span cable ladder with perforated side rails of side height of 110 mm. Fastening of cables with clamp clip, type 2056.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Technical data

Technical data

Colour	zinc
CO₂ Footprint (GWP) Cradle-to-Gate	13,917 kg CO₂e / 1 Meter

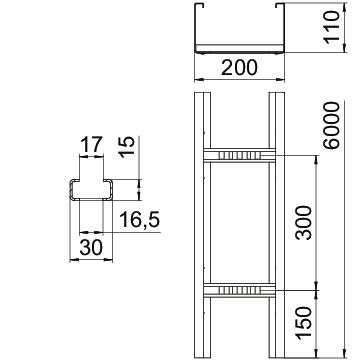

Dimension	110 x 200
Dimension	110x200x6000
Dimension B	200 mm
Dimension L	6000 mm
Height	110 mm
Length	6000 mm
Length	6000 ft
Maintain electrical functions	no
Material	Steel
Rail thickness	2 mm
Rung slot dimension	17,00
Rustproof steel, pickled	no
Side perforation	yes

Side rail version	Profile (open)
Support spacing 3.0 m	2,5 kN/m
Support spacing 3.5 m	1,98 kN/m
Support spacing 4.0 m	1,6 kN/m
Support spacing 4.5 m	1,31 kN/m
Support spacing 5.0 m	1,1 kN/m
Support spacing 6.0 m	0,8 kN/m
Support spacing 7.0 m	0,4 kN/m
Surface	Strip galvanized
Usable cross-section	18600 mm²
Usable cross-section	186 cm²
Version of the rungs	Profile unperforated
Wide-span version	yes
Width	200 mm

Technical data

Load diagram, wide span cable ladder, type WKLG 110

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Item no.	Quantity	SSU
WKLG 1120 FS	6000 mm	200 mm	2 mm	no	6311008	m	6 m
WKLG 1130 FS	6000 mm	300 mm	2 mm	no	6311012	m	6 m
WKLG 1140 FS	6000 mm	400 mm	2 mm	no	6311016	m	6 m
WKLG 1150 FS	6000 mm	500 mm	2 mm	no	6311020	m	6 m
WKLG 1160 FS	6000 mm	600 mm	2 mm	no	6311024	m	6 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FS	WRVL 110 FS	6091164	piece	2 piece
90° bend 110 FS	WLB 90 112 FS	6312330	piece	1 piece
Cover incl. turn buckle FS	WDRL 1116 20 FS	6227422	m	3 m
Separating retainer 85 FS	TSG 85 FS	6062114	m	3 m
