Wide span cable ladder WKLG 110 A4 6000 | 600 | 2 | no

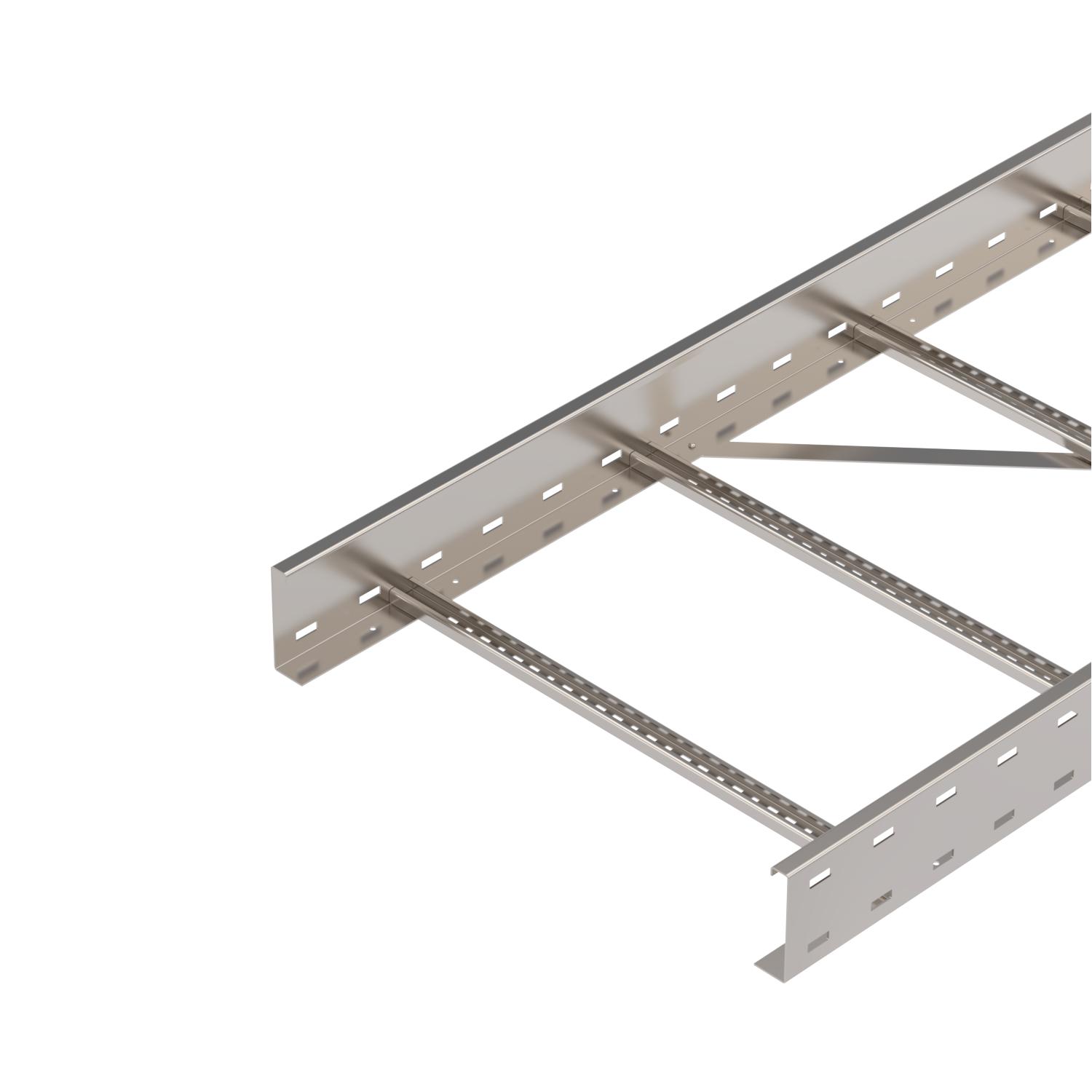

Wide span cable ladder WKLG 110 A4

Item no. 6311233 | EAN 4012195403142

Item no. / Types

Length	6000 mm

Width

Rail thickness	2 mm

Maintain electrical functions	no

Product description

Product description

Wide span cable ladder with perforated side rails of side height of 110 mm. Fastening of cables with clamp clip, type 2056.

Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Technical data

Technical data

Colour	stainless steel
CO₂ Footprint (GWP) Cradle-to-Gate	34,173 kg CO₂e / 1 Meter

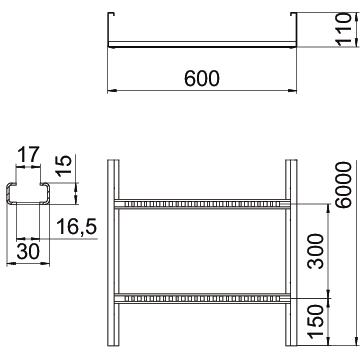

Dimension	110x600x6000
Dimension	110 x 600
Dimension B	600 mm
Dimension L	6000 mm
Height	110 mm
Length	6000 ft
Length	6000 mm
Maintain electrical functions	no
Material	Stainless steel
Rail thickness	2 mm
Rung slot dimension	17,00
Rustproof steel, pickled	no
Side perforation	yes

Side rail version	Profile (open)
Support spacing 3.0 m	2,3 kN/m
Support spacing 3.5 m	1,9 kN/m
Support spacing 4.0 m	1,6 kN/m
Support spacing 4.5 m	1,33 kN/m
Support spacing 5.0 m	1,1 kN/m
Support spacing 6.0 m	0,8 kN/m
Support spacing 7.0 m	0,4 kN/m
Surface	Bright, treated
Usable cross-section	566 cm²
Usable cross-section	56600 mm²
Version of the rungs	Profile unperforated
Wide-span version	yes
Width	600 mm

Technical data

Load diagram, wide span cable ladder, type WKLG 110

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Item no.	Quantity	SSU
WKLG 1120 A4	6000 mm	200 mm	2 mm	no	6311225	m	6 m
WKLG 1130 A4	6000 mm	300 mm	2 mm	no	6311227	m	6 m
WKLG 1140 A4	6000 mm	400 mm	2 mm	no	6311229	m	6 m
WKLG 1150 A4	6000 mm	500 mm	2 mm	no	6311231	m	6 m
WKLG 1160 A4	6000 mm	600 mm	2 mm	no	6311233	m	6 m
