WDK CEE device socket
Item no. 6024009 | EAN 4012196027132
- Product description
-

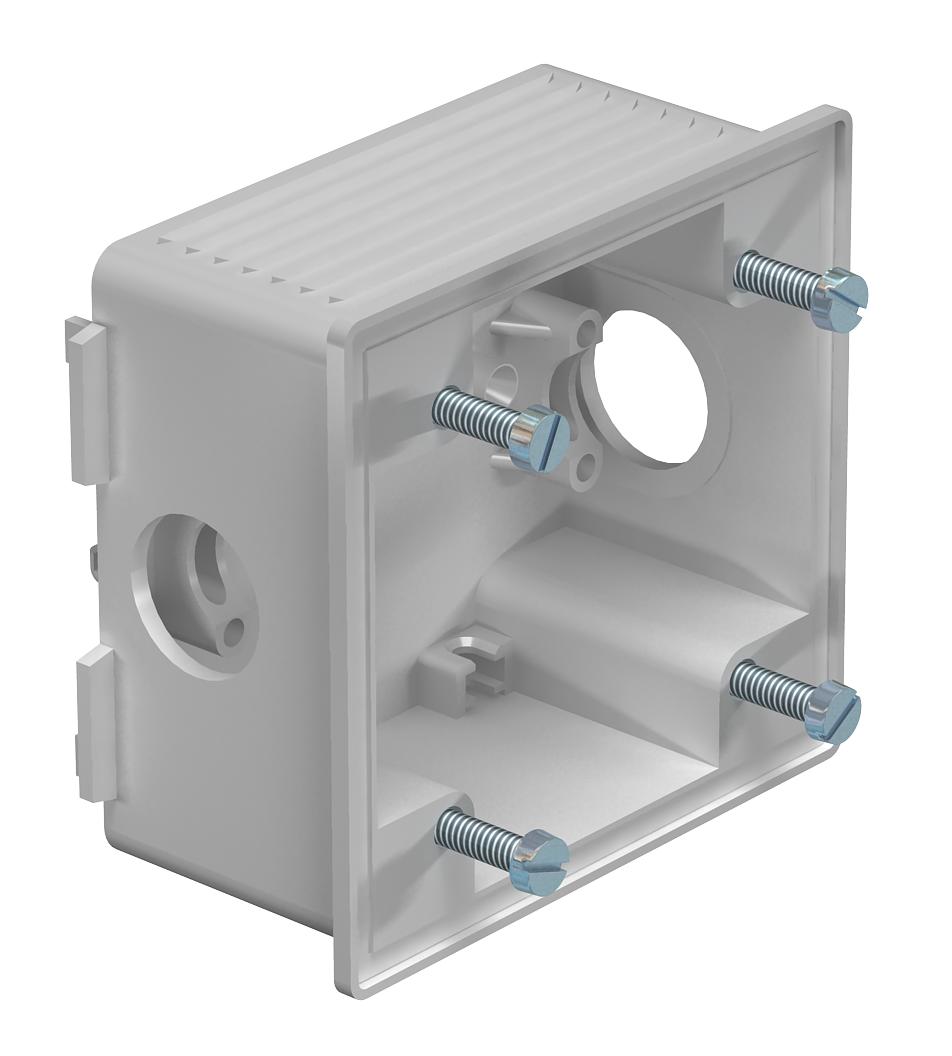

Product descriptionDevice socket for mounting CEE sockets in WDK trunking from trunking width 150 mm. The device socket can also be used as a concealed installation socket for CEE devices. Straight version, 16 and 32 A, with 60 x 60 mm hole pattern
Supplied complete with 1 strain relief clip, 1 ED 16 insertion seal, 1 VS 16 closing bung and 4 M5 x 18 cylinder head bolts to fix the socket.
-
- Technical data
-
Technical data

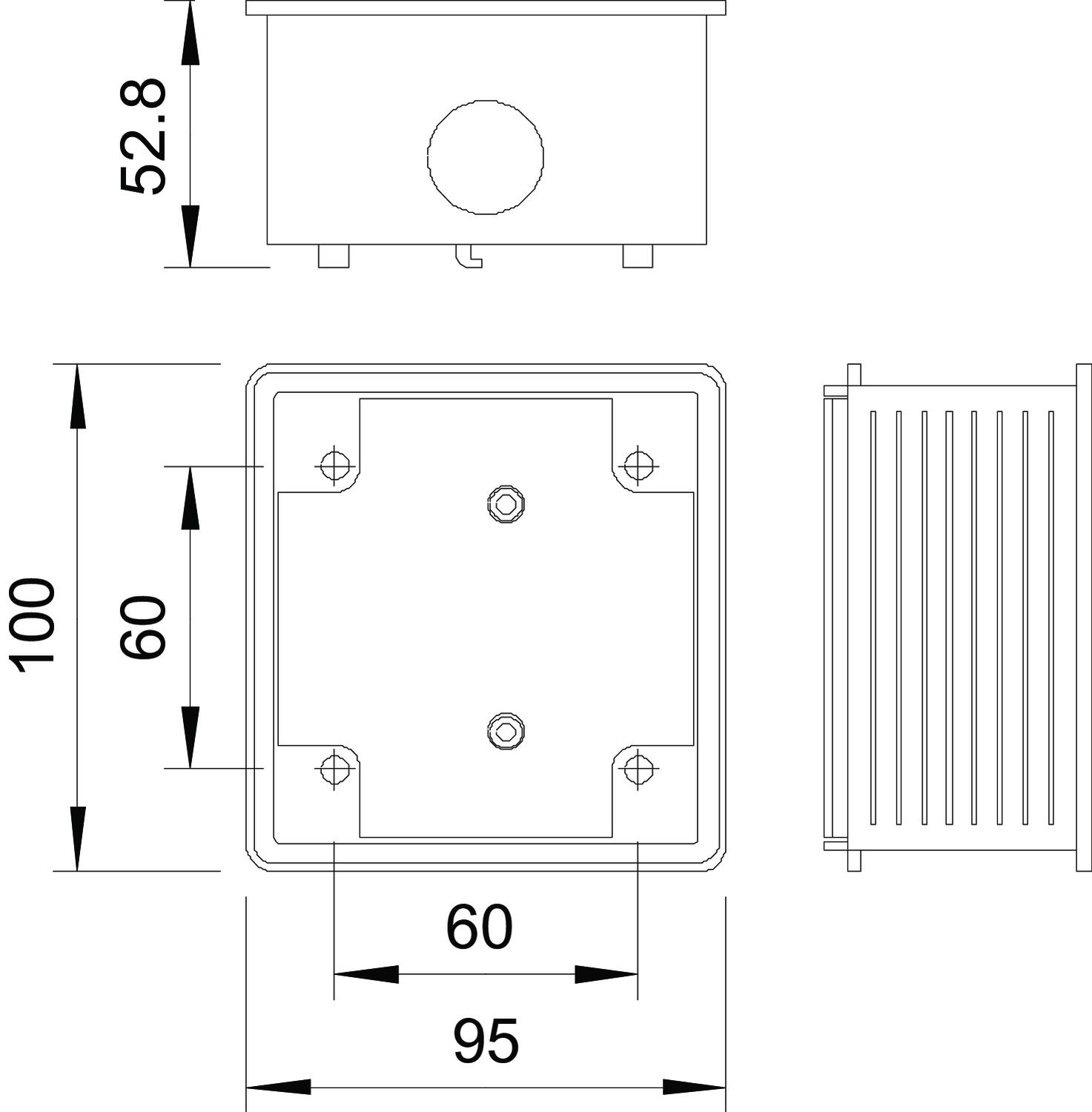

Colour Light grey; RAL 7035 CO₂ Footprint (GWP) Cradle-to-Gate 0,5452 kg CO₂e / 1 Piece Device type CEE Halogen-free yes Height 48 mm Length 100 mm Material Polyamide, fibreglass reinforced Number of units 1 Strain relief option no Version for Open Width 95 mm With connection compartment no - All types
- Downloads
-
Data sheet 2392 / 6024009 , 0.17MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity 2392 / 6024009 , 0.10MB , pdfREACH Declaration of conformity 2392 / 6024009 , 0.12MB , pdfRoHS Declaration of conformity 2392 / 6024009 , 0.12MB , pdfMounting instructions Cable trunking WDK , 6.19MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfMounting instructions Accessory mounting box 2392 , 6.49MB , pdfNo invitation to tender text is available for this product.
