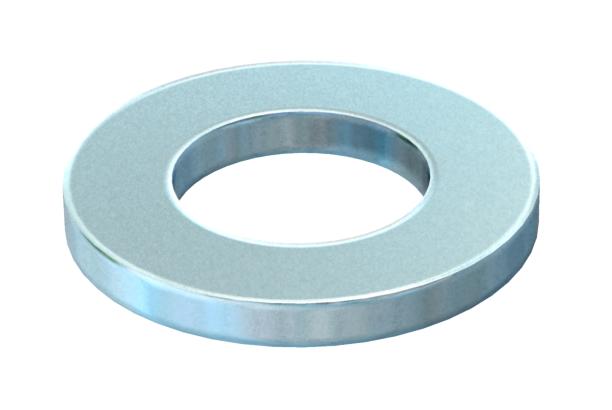

Washer F 24 | 24 | 13.5 | 2.5 | M12

morepic-1

morepic-2

Washer F

Item no. 3402479 | EAN 4012195300915

Item no. / Types

Dimension d min.

Dimension d max.

Dimension d

Dimension h

Thread

Product description

Product description

Washer for universal use.

Technical data

Technical data

Diameter	24 mm
Dimension	M12
Dimension d	13,5 mm
Dimension d max.	24 mm
Dimension d min.	24 mm
Dimension h	2,5 mm
External diameter	24 mm
Hole diameter	13 mm

Hole shape	Round
Inner diameter	13 mm
Material	Steel
Material thickness	2,5 mm
Plate thickness	0,1 in
Surface	Hot galvanized
Thread	M12

All types

All types

Types	Dimension d min.	Dimension d max.	Dimension d	Dimension h	Thread	Item no.	Quantity	SSU
966 M6 F	12 mm	12 mm	6.6 mm	1.6 mm	M6	3402444	piece	100 piece
966 M8 F	16 mm	16 mm	9 mm	1.6 mm	M8	3402452	piece	100 piece
966 M10 F	20 mm	20 mm	11 mm	2 mm	M10	3402460	piece	100 piece
966 M12 F	24 mm	24 mm	13.5 mm	2.5 mm	M12	3402479	piece	100 piece
