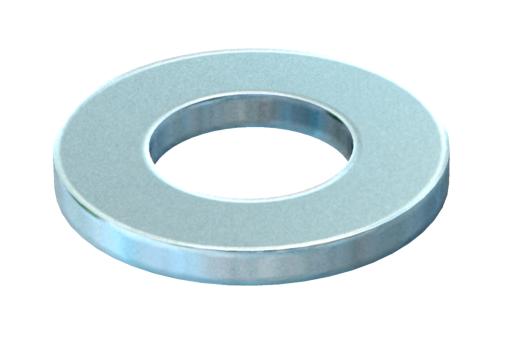

Washer F

Item no. 3402460 | EAN 4012195300854

Product description

Product description

Washer for universal use.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Diameter 20 mm
Dimension M10
Dimension d 11 mm
Dimension d max. 20 mm
Dimension d min. 20 mm
Dimension h 2 mm
External diameter 20 mm
Hole diameter 10,5 mm
Hole shape Round
Inner diameter 10,5 mm
Material Steel
Material thickness 2 mm
Plate thickness 0,08 in
Surface Hot galvanized
Thread M10
All types

All types

Types Dimension d min. Dimension d max. Dimension d Dimension h Thread Item no. Quantity SSU
966 M6 F 12 mm 12 mm 6.6 mm 1.6 mm M6 3402444
100 piece
966 M8 F 16 mm 16 mm 9 mm 1.6 mm M8 3402452
100 piece
966 M10 F 20 mm 20 mm 11 mm 2 mm M10 3402460
100 piece
966 M12 F 24 mm 24 mm 13.5 mm 2.5 mm M12 3402479
100 piece
