Washer F 12 | 12 | 6.6 | 1.6 | M6

morepic-1

morepic-2

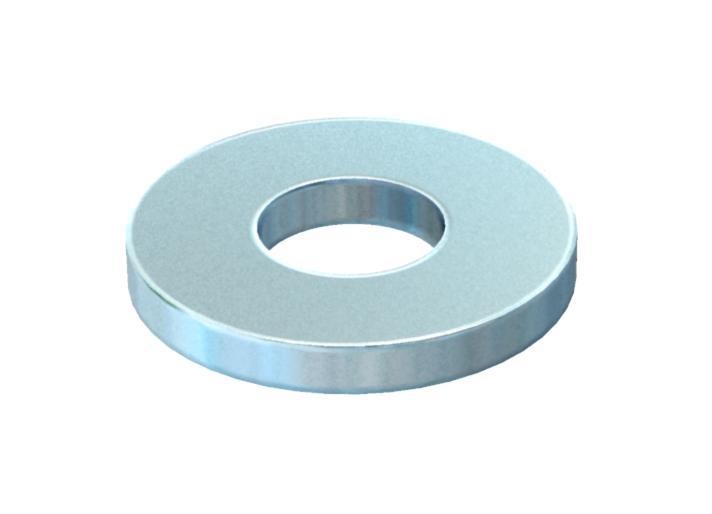

Washer F

Item no. 3402444 | EAN 4012195300731

Item no. / Types

Dimension d min.

Dimension d max.

Dimension d

Dimension h

Thread

Product description

Product description

Washer for universal use.

Technical data

Technical data

Diameter	12 mm
Dimension	M6
Dimension d	6,6 mm
Dimension d max.	12 mm
Dimension d min.	12 mm
Dimension h	1,6 mm
External diameter	12 mm
Hole diameter	6,4 mm

Hole shape	Round
Inner diameter	6,4 mm
Material	Steel
Material thickness	1,6 mm
Plate thickness	0,06 in
Surface	Hot galvanized
Thread	M6

All types

All types

Types	Dimension d min.	Dimension d max.	Dimension d	Dimension h	Thread	Item no.	Quantity	SSU
966 M6 F	12 mm	12 mm	6.6 mm	1.6 mm	M6	3402444	piece	100 piece
966 M8 F	16 mm	16 mm	9 mm	1.6 mm	M8	3402452	piece	100 piece
966 M10 F	20 mm	20 mm	11 mm	2 mm	M10	3402460	piece	100 piece
966 M12 F	24 mm	24 mm	13.5 mm	2.5 mm	M12	3402479	piece	100 piece

Downloads

Data sheet 966 M6 F / 3402444 , 0.17MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity 966 M6 F / 3402444 , 0.06MB , pdf

Download

Mounting instructions General information on the mounting , 2.61MB , pdf

Product graphic 966 M6 F / 3402444, 16.16 kB, jpg

Scale drawing 966 M6 F / 3402444, 59.05 kB, jpg

966 M6 F / 3402444

3402444_KSTP1.stp, 9.07 kB
