Washer 12 | | 6.4 | 1.6 | M6

morepic-1

morepic-2

Washer

Item no. 3402061 | EAN 4012195300014

Item no. / Types

Dimension d min.

Dimension d

Dimension h

Thread

Product description

Product description

Washer according to DIN 125, shape A, for universal use.

Technical data

Technical data

Dimension	M6
Dimension d	6,4 mm
Dimension d min.	12 mm
Dimension h	1,6 mm
Faceted	no
Hardened	no

Hole shape	Round
Material	Steel
Material thickness	1,6 mm
Plate thickness	0,06 in
Surface	Electrogalvanized
Thread	M6

All types

All types

Types	Dimension d min.	Dimension d	Dimension h	Thread	Item no.	Quantity	SSU
WS M4 D09 G	9 mm	4.3 mm	0.8 mm	M4	3402045	piece	100 piece
WS M6 D12 G	12 mm	6.4 mm	1.6 mm	M6	3402061	piece	100 piece
WS M8 D16 G	16 mm	8.4 mm	1.6 mm	M8	3402088	piece	100 piece
WS M10 D20 G	20 mm	10.5 mm	2 mm	M10	3402096	piece	100 piece
WS M12 D24 G	24 mm	13 mm	2.5 mm	M12	3402126	piece	100 piece

Downloads

Data sheet WS M6 D12 G / 3402061 , 0.17MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

EU declaration of conformity WS M6 D12 G / 3402061 , 0.06MB , pdf

Download

REACH Declaration of conformity WS M6 D12 G / 3402061 , 0.12MB , pdf

Download

RoHS Declaration of conformity WS M6 D12 G / 3402061 , 0.12MB , pdf

Download

Product graphic WS M6 D12 G / 3402061, 16.16 kB, jpg

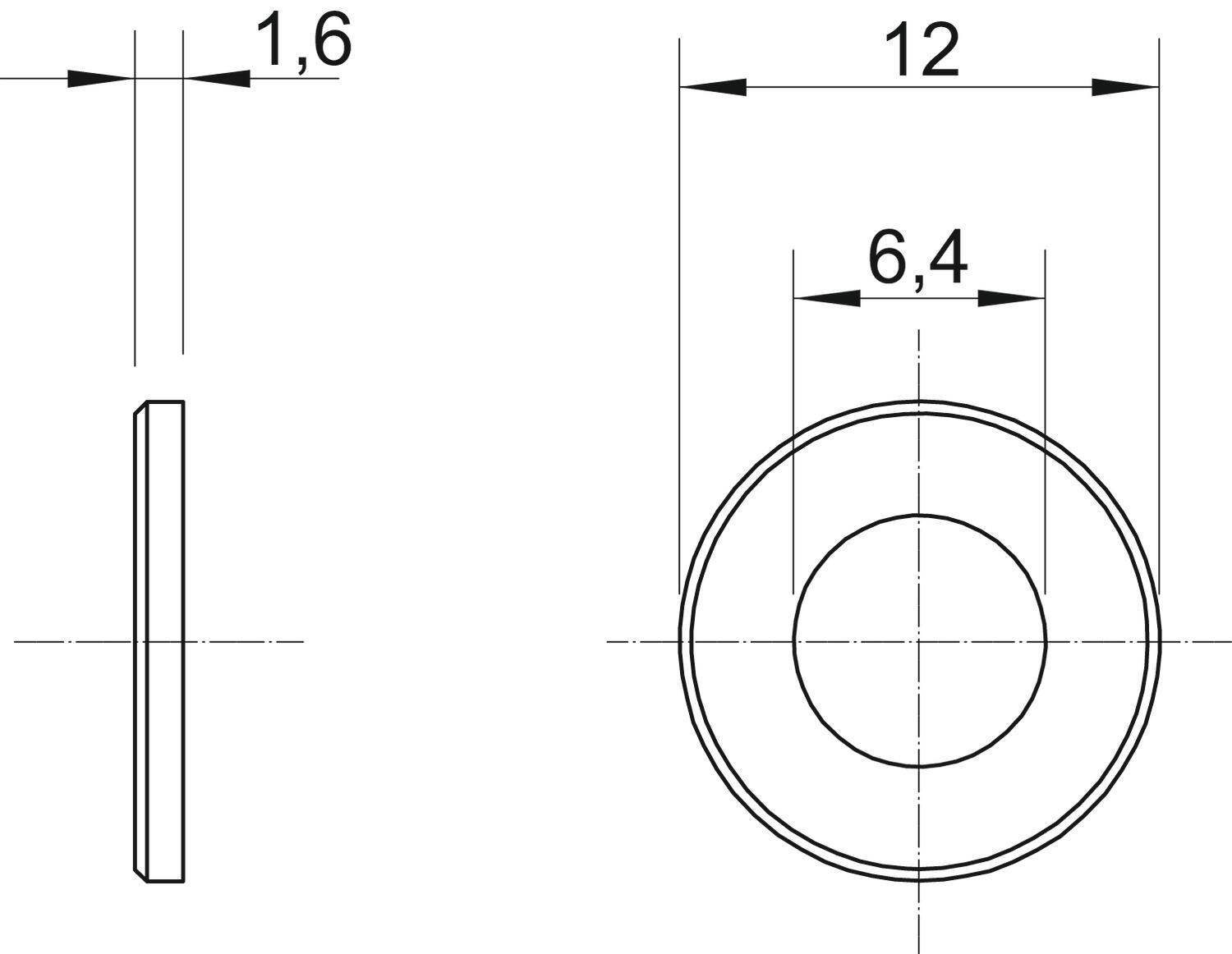

Scale drawing WS M6 D12 G / 3402061, 61.64 kB, jpg
