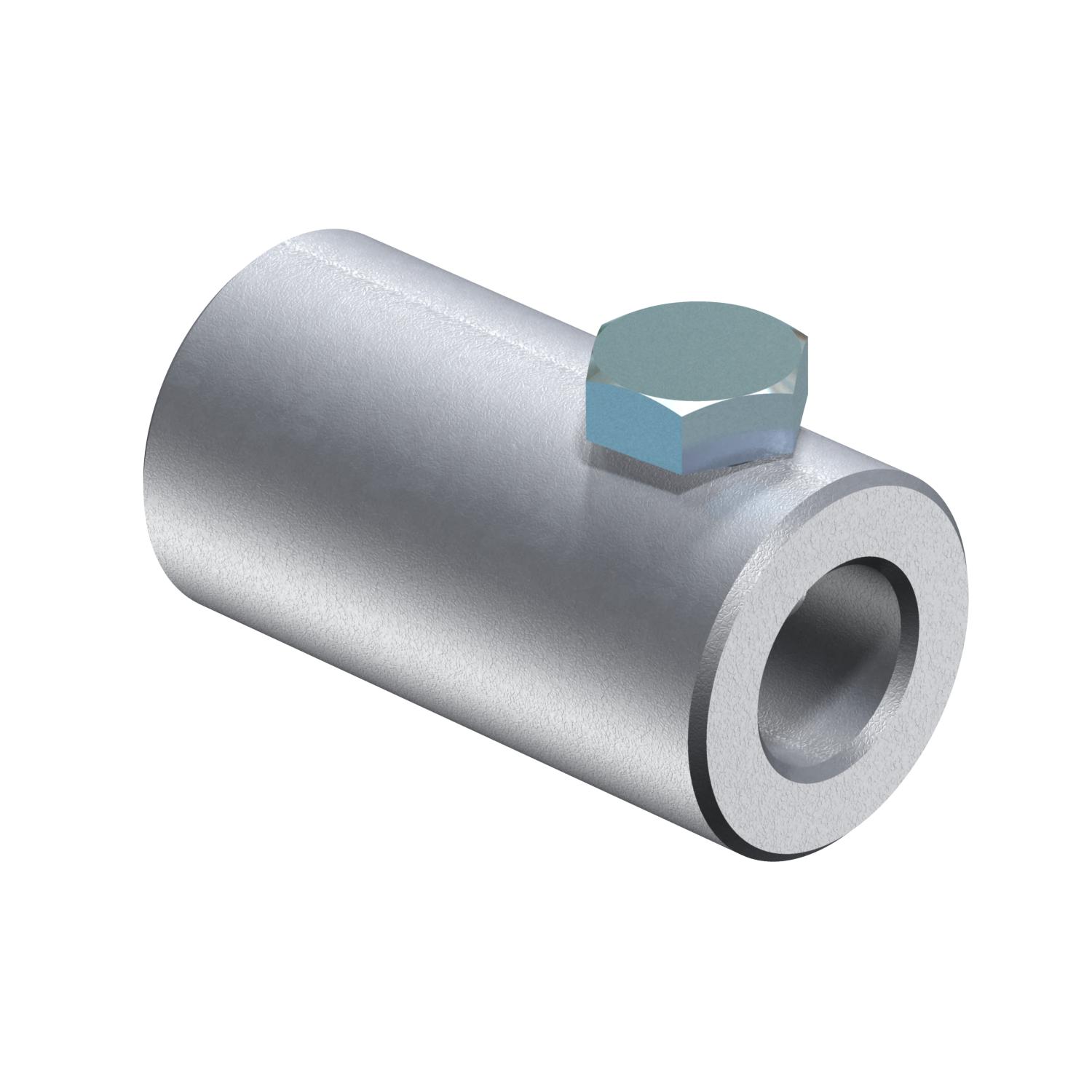

Wall connection
Item no. 5408689 | EAN 4012195613305
- Product description
-
Product description
• For mounting insulating rods to structures or walls
• With M8 internal thread, e.g. for mounting the cable bracket type 177 (5207347) for loose conductor routing of round conductors
• Incl. M10 bolts
- Technical data
-
Technical data

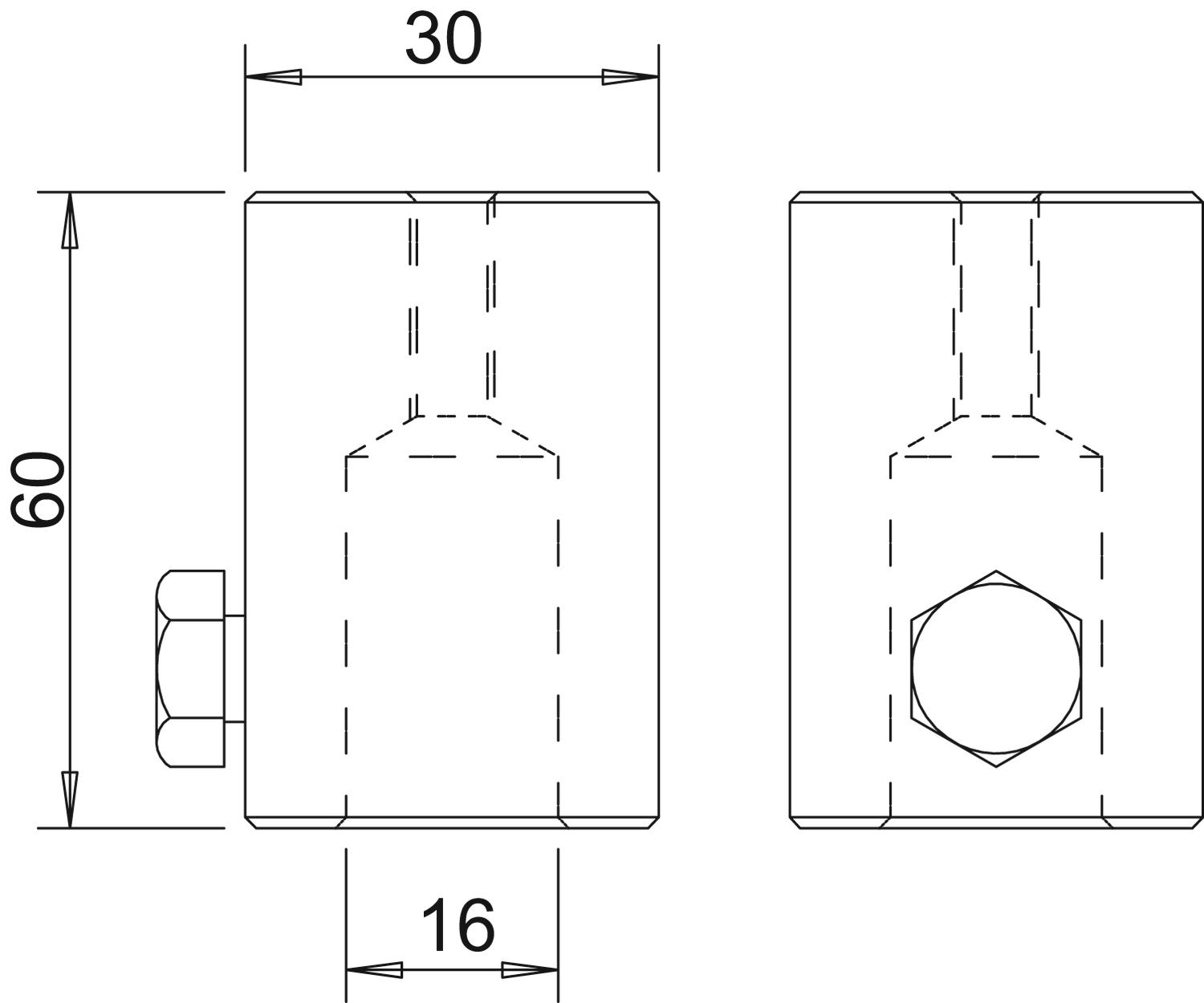

Connection Round conductor Dimension 16mm Material Aluminium Dimensions
Dimension d min. 30 mm Dimension d Ø 16 mm Dimension L 60 mm Length 60 mm - All types
- Downloads
-
Data sheet 101 W-16 / 5408689 , 0.19MB , pdf
