- Product description
-

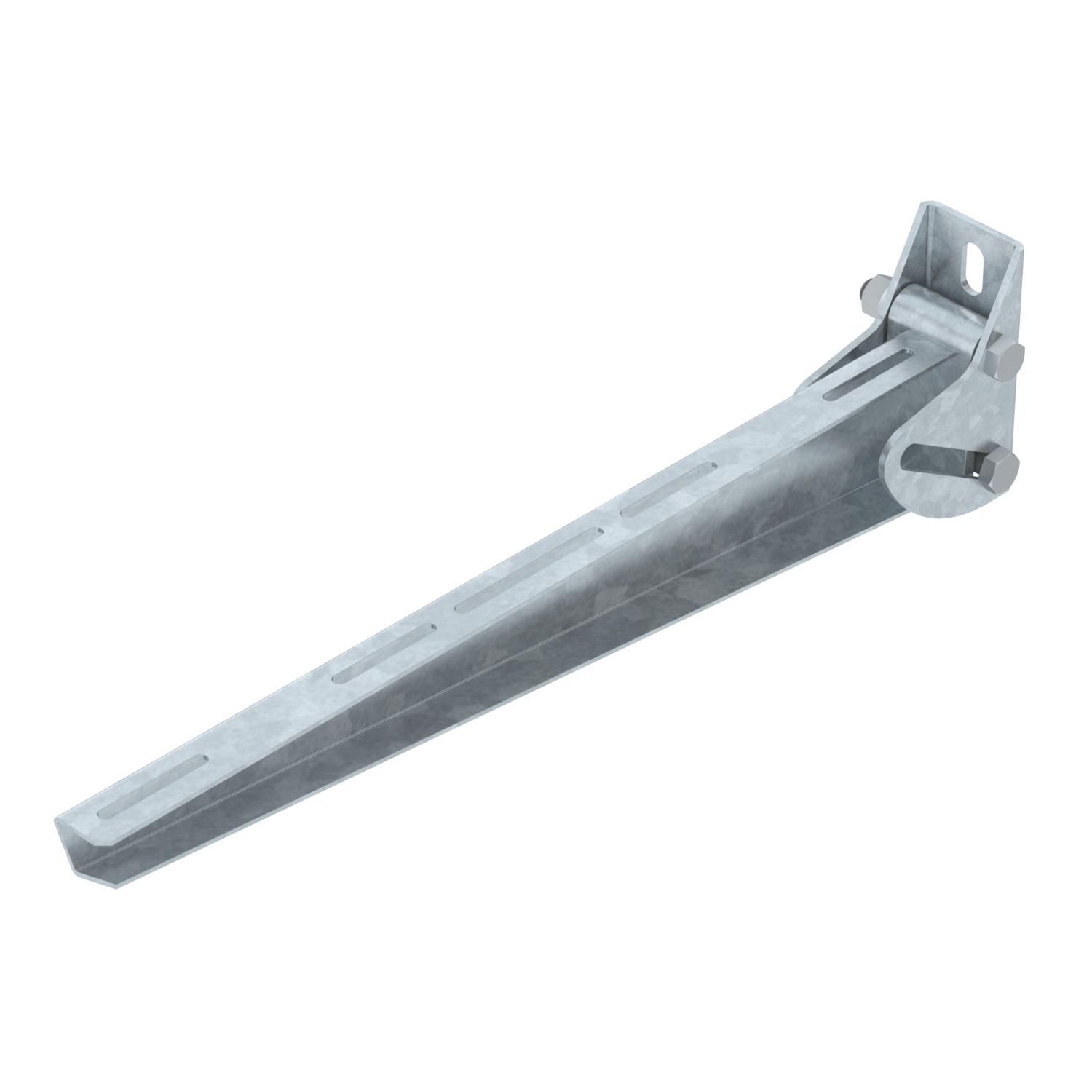

Product descriptionVariable wall bracket for fixing to sloping or vaulted walls.
- Technical data
-
Technical data

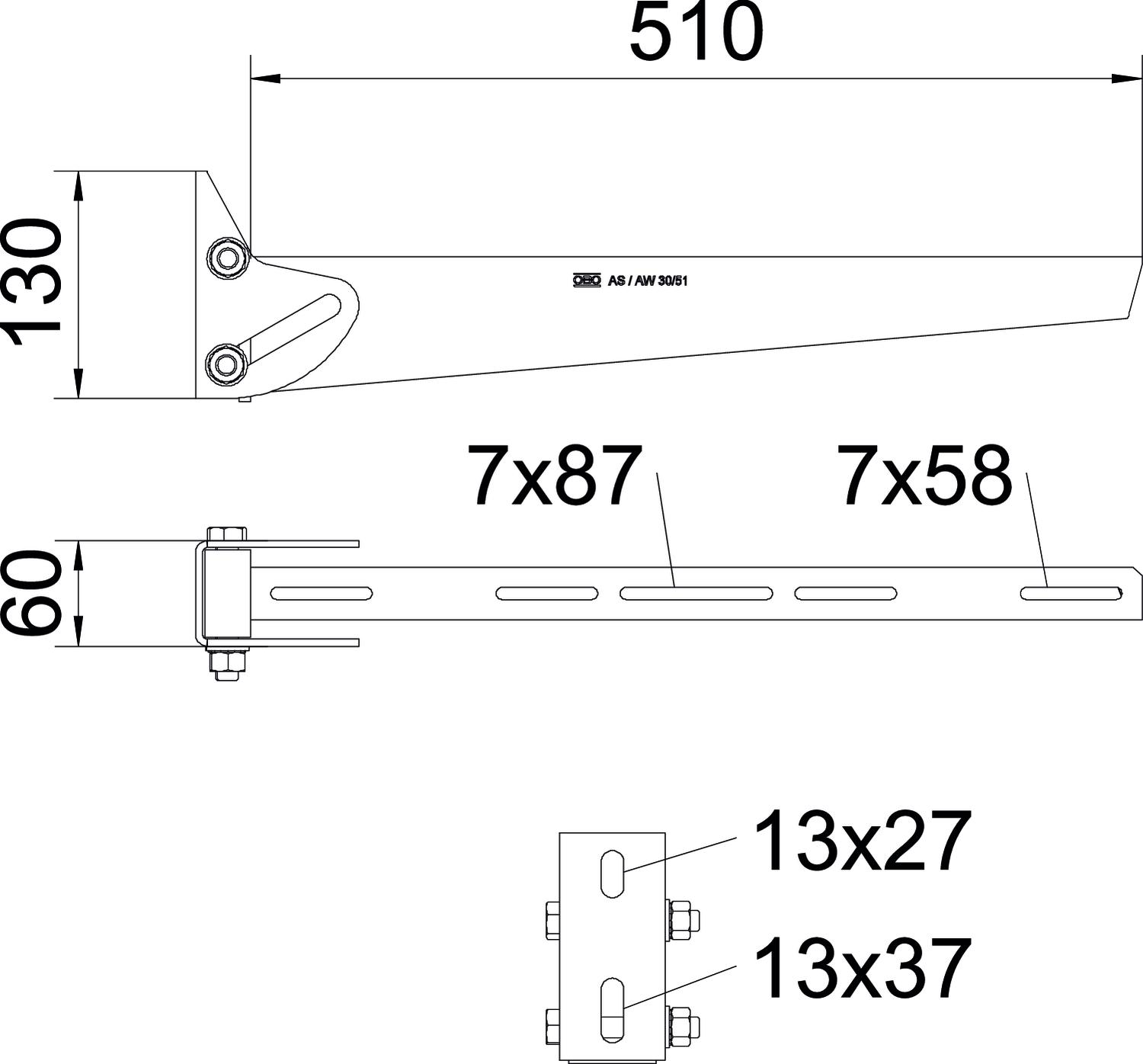

Colour zinc Dimension B510mm Dimension A 60 mm Dimension B 510 mm Dimension H 130 mm Dimension L 510 mm F in kN 0,9 kN for width max. 90 mm for width min. 60 Height 130 mm Hole diameter 13 mm Length 60 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Version for Wall brackets Width 510 mm - All types
- Downloads
-
Data sheet AWV 51 FT / 6419593 , 0.18MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity AWV 51 FT / 6419593 , 0.13MB , pdfREACH Declaration of conformity AWV 51 FT / 6419593 , 0.12MB , pdfRoHS Declaration of conformity AWV 51 FT / 6419593 , 0.12MB , pdfEnvironmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdfMounting instructions Mounting instructions, U support systems , 0.04MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
