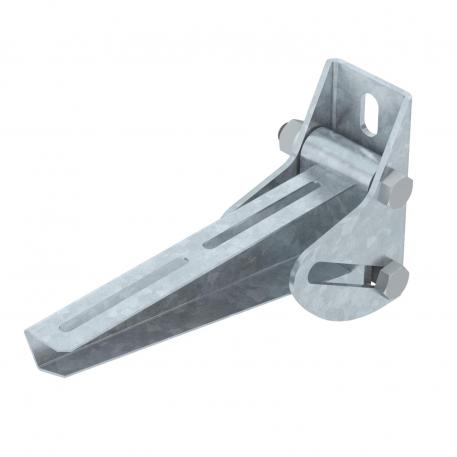

Wall bracket, variable AWV FT
Item no. 6419534 | EAN 4012196206292
- Product description
-
Product descriptionVariable wall bracket for fixing to sloping or vaulted walls.
-
- Technical data
-
Technical data
Colour zinc Dimension B210mm Dimension A 60 mm Dimension B 210 mm Dimension H 130 mm Dimension L 210 mm F in kN 0,9 kN for width max. 90 mm for width min. 60 Height 130 mm Hole diameter 13 mm Length 60 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Version for Wall brackets Width 210 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
