- Product description
-
Product description

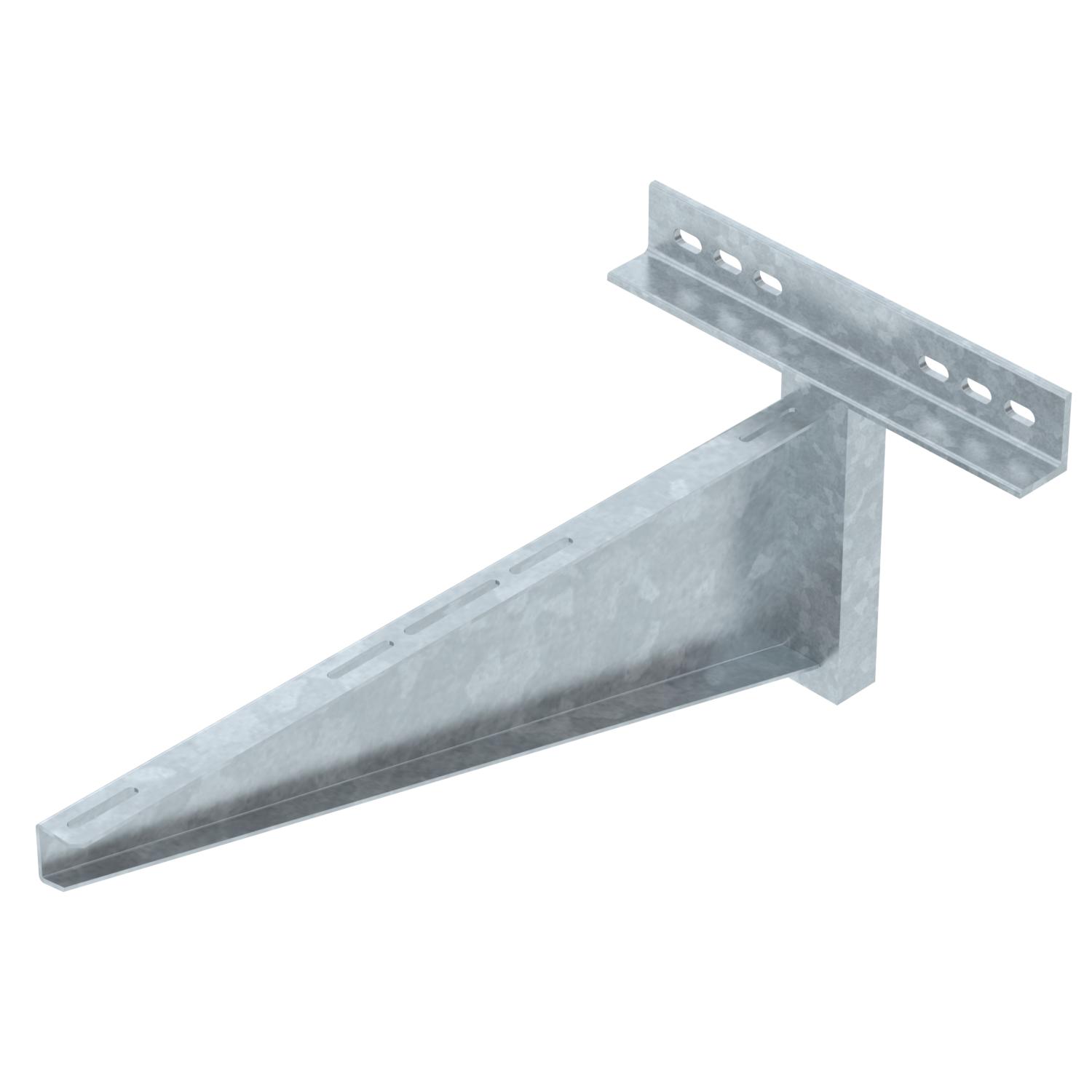

Wall bracket, heavy duty.
- Technical data
-
Technical data

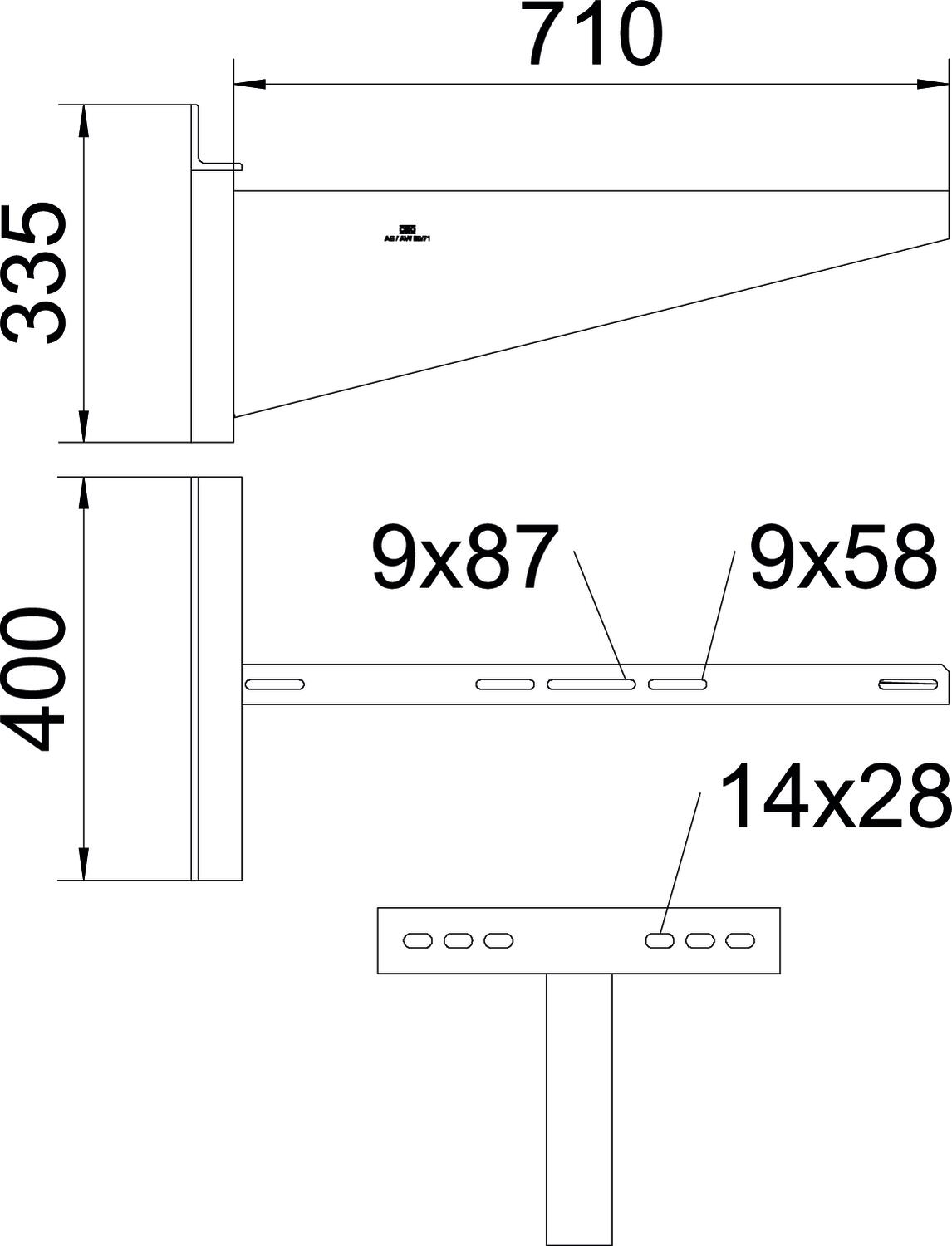

Dimension B710mm Dimension A 400 mm Dimension B 710 mm Dimension b 160 mm Dimension b1 240 mm Dimension b2 320 mm Dimension H 335 mm F in kN 8 kN Height 335 mm Hole diameter 14 mm Length 400 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Version for Wall brackets Width 710 mm - All types
-
All types
- Downloads
-
Data sheet AWSS 71 FT / 6417926 , 0.18MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity AWSS 71 FT / 6417926 , 0.13MB , pdfREACH Declaration of conformity AWSS 71 FT / 6417926 , 0.12MB , pdfRoHS Declaration of conformity AWSS 71 FT / 6417926 , 0.12MB , pdfEnvironmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
