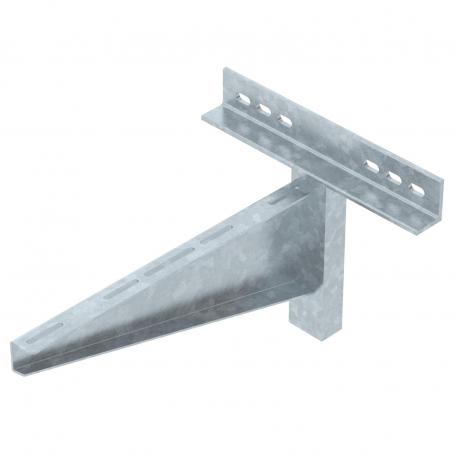

Wall and clamping bracket AWSS FT 510 | 10
morepic-1 morepic-2 video-1

Wall and clamping bracket AWSS FT

Item no. 6417918 | EAN 4012196340453

Product description

Product description

Wall bracket, heavy duty.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Wall and support brackets
Technical data

Technical data

Dimension B510mm
F in kN 10 kN
Hole diameter 14 mm
Maintain electrical functions no
Material Steel
Rustproof steel, pickled no
Surface Hot-dip galvanised
Version for Wall brackets

Dimensions

Dimension A 400 mm
Dimension B 510 mm
Dimension b 160 mm
Dimension b1 240 mm
Dimension b2 320 mm
Dimension H 335 mm
Height 335 mm
Length 400 mm
Width 510 mm
All types

All types

Types Width F in kN Item no. Quantity SSU
AWSS 21 FT 210 mm 10 kN 6417906
1 piece
AWSS 31 FT 310 mm 10 kN 6417910
1 piece
AWSS 41 FT 410 mm 10 kN 6417914
1 piece
AWSS 51 FT 510 mm 10 kN 6417918
1 piece
AWSS 61 FT 610 mm 10 kN 6417922
1 piece
AWSS 71 FT 710 mm 8 kN 6417926
1 piece
AWSS 81 FT 810 mm 7 kN 6417930
1 piece
AWSS 91 FT 910 mm 6.5 kN 6417934
1 piece
AWSS 101 FT 1010 mm 6 kN 6417938
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F Truss-head bolt with flange nut F FRSB 6x12 F 6406122
100 piece
Downloads

Download

Download
Download

Declaration of conformity AWSS 51 FT / 6417918 , 0.13MB , pdf
Download
REACH Declaration of conformity AWSS 51 FT / 6417918 , 0.12MB , pdf
Download
RoHS Declaration of conformity AWSS 51 FT / 6417918 , 0.12MB , pdf
Download

Download

Download

AWSS 51 FT / 6417918
