Wall and clamping bracket AWSS FT
Item no. 6417914 | EAN 4012196340392
- Product description
-

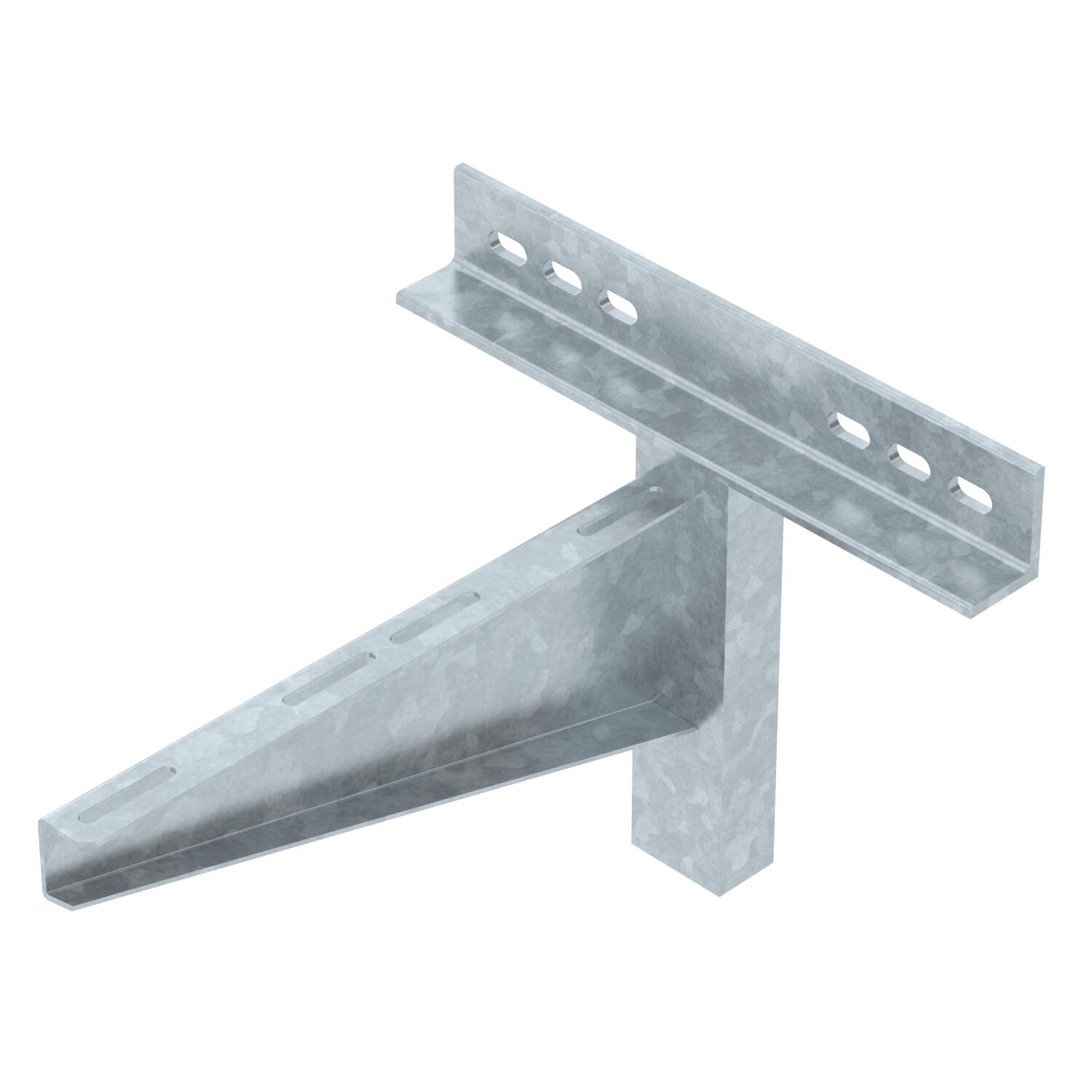

Product descriptionWall bracket, heavy duty.
-
- Technical data
-
Technical data

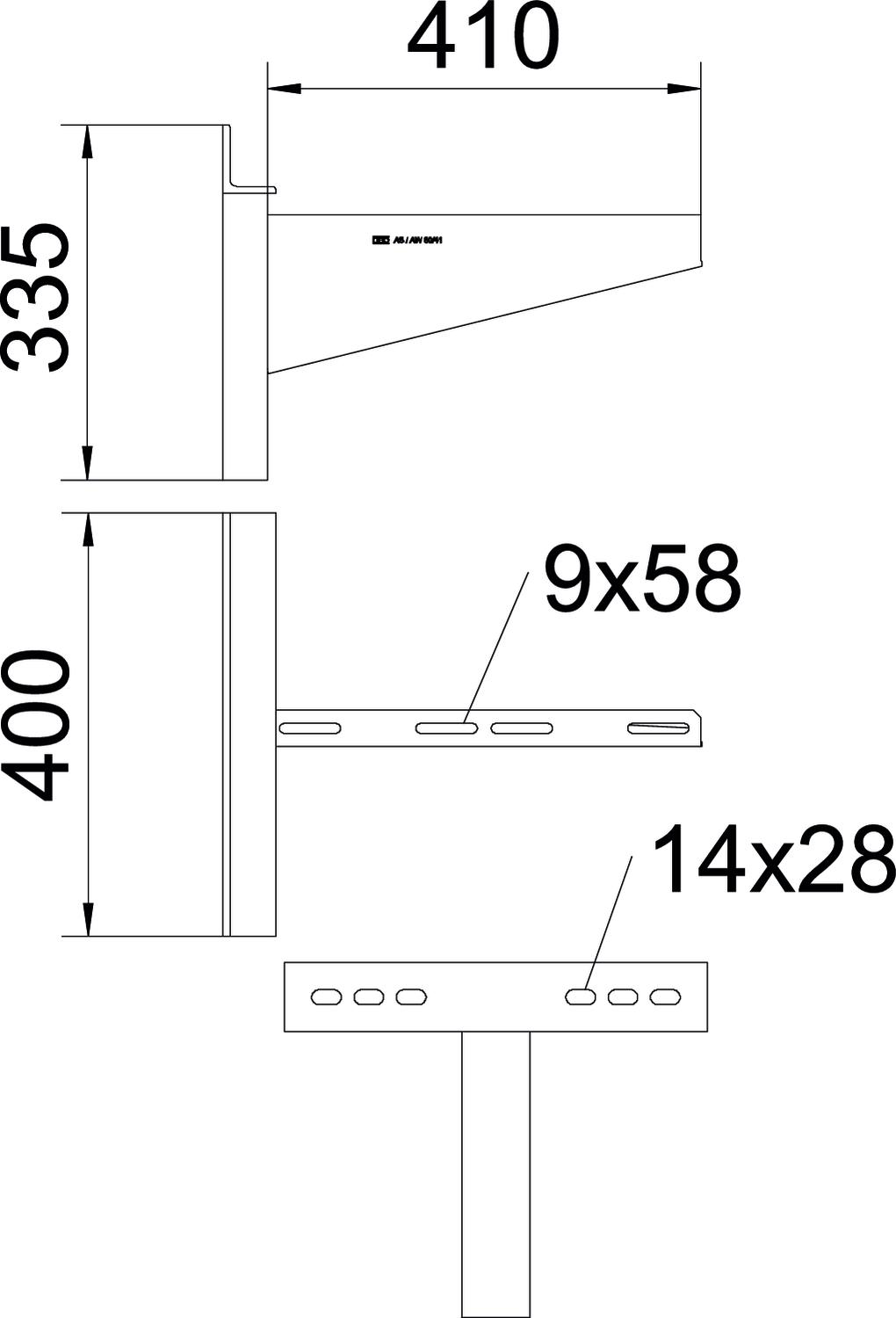

Colour zinc Dimension B410mm Dimension A 400 mm Dimension b 160 mm Dimension B 410 mm Dimension b1 240 mm Dimension b2 320 mm Dimension H 335 mm F in kN 10 kN Height 335 mm Hole diameter 14 mm Length 400 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Version for Wall brackets Width 410 mm - All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
