- Product description
-
Product description

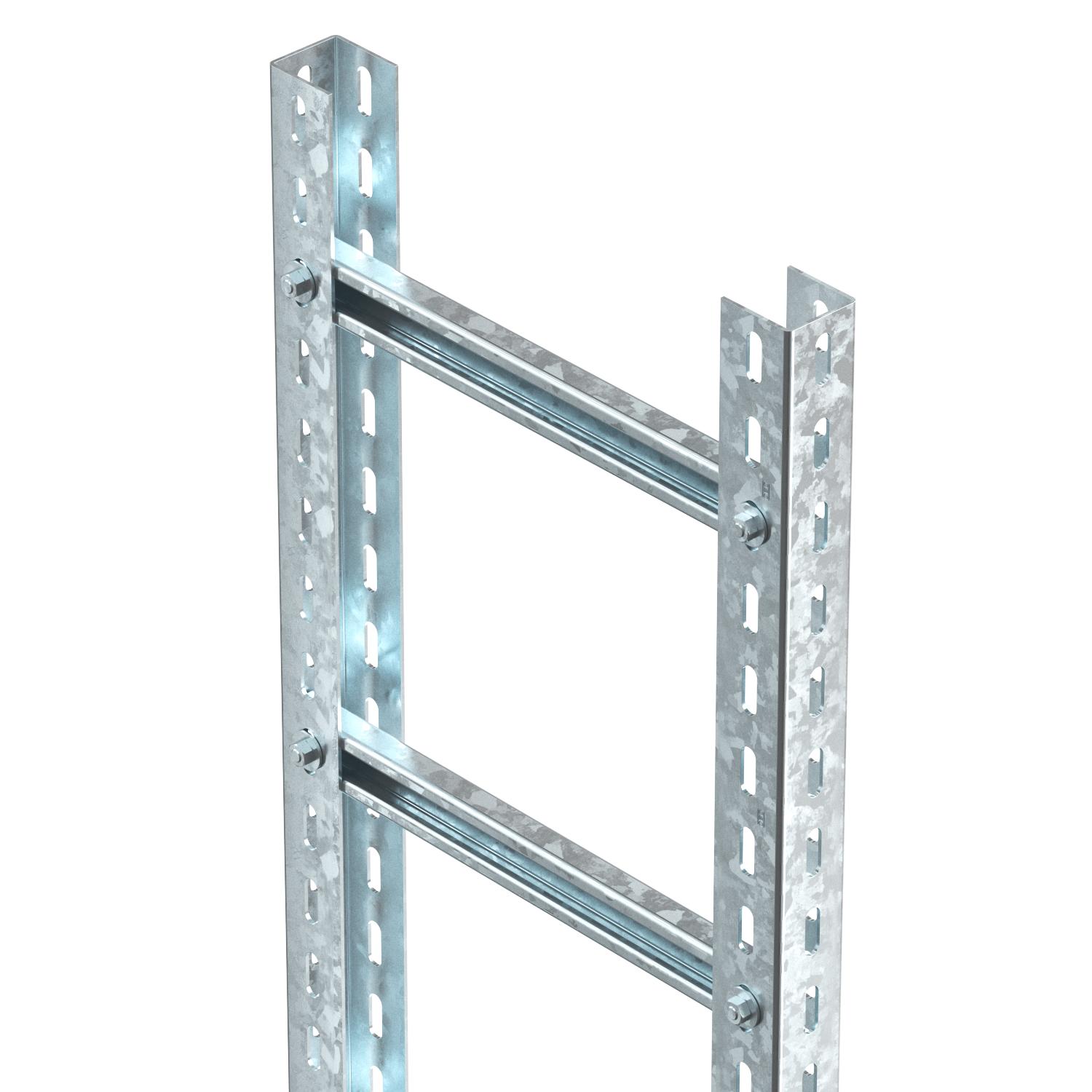

Heavyweight vertical ladder system for the maintenance of electrical function to DIN 4102 Part 12. Approved clips, type BS-U1-M-… FT. Supplied unmounted.
- Technical data
-
Technical data

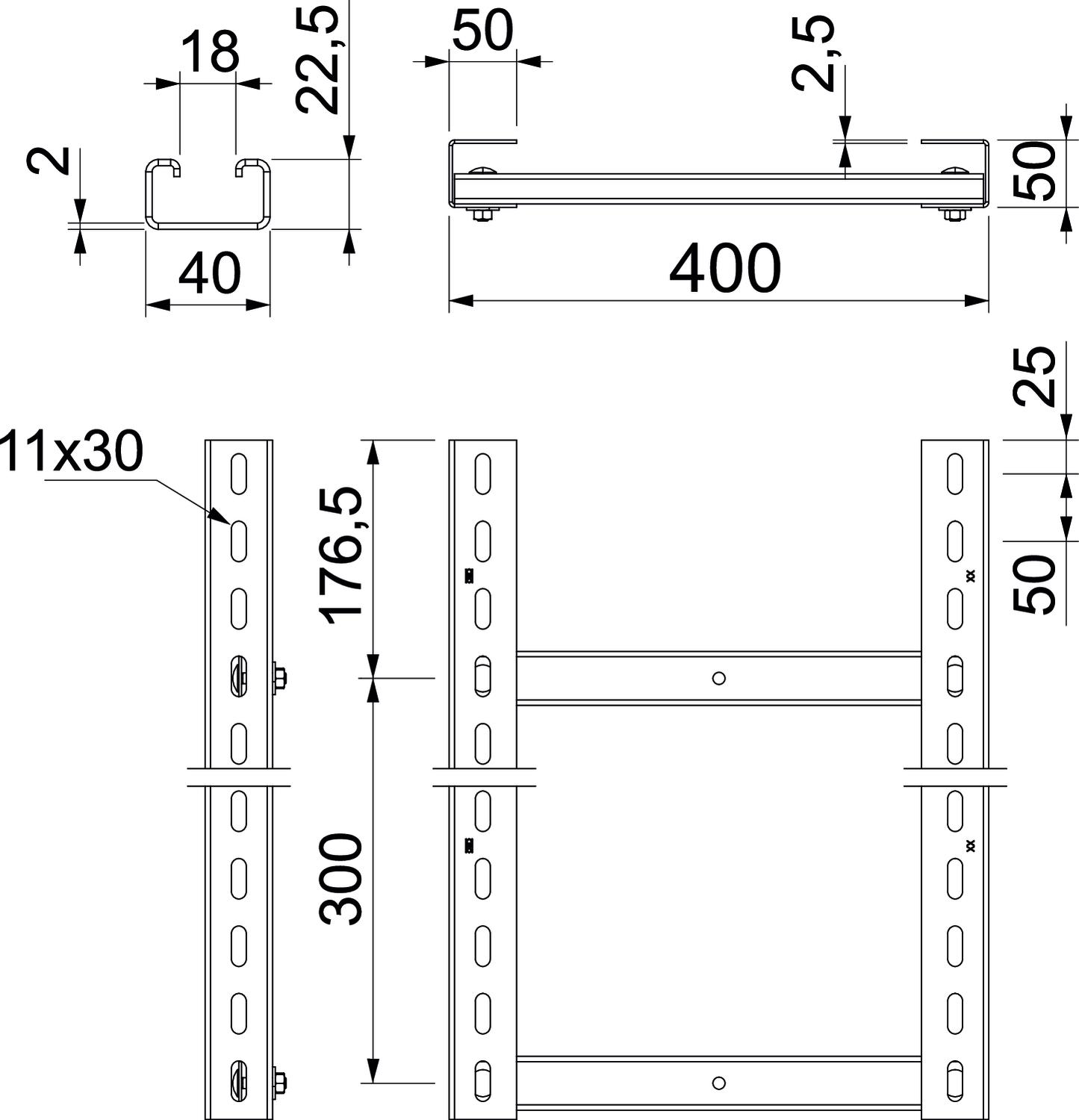

Dimension 400x3000mm Dimension B 400 mm Fire protection Maintenance of electrical function of standard support structure Height 50 mm Length 3000 mm Maintain electrical functions yes Material Steel Rung distance 300 mm Rung slot dimension 2,00 Rustproof steel, pickled no Side perforation yes Surface Hot-dip galvanised Version of the rungs Profile unperforated Width 400 mm - All types
- Downloads
-
Data sheet SLM50C40F 40 FT / 6010008 , 0.20MB , pdfBrochure Brochure The Experts , 2.10MB , pdfDeclaration of conformity SLM50C40F 40 FT / 6010008 , 0.10MB , pdfREACH Declaration of conformity SLM50C40F 40 FT / 6010008 , 0.12MB , pdfRoHS Declaration of conformity SLM50C40F 40 FT / 6010008 , 0.13MB , pdfEnvironmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdfSurveyor's comments Funktionserhalt von Steigetrassen hängende Montage 3,5m bis 7m , 3.97MB , pdf
