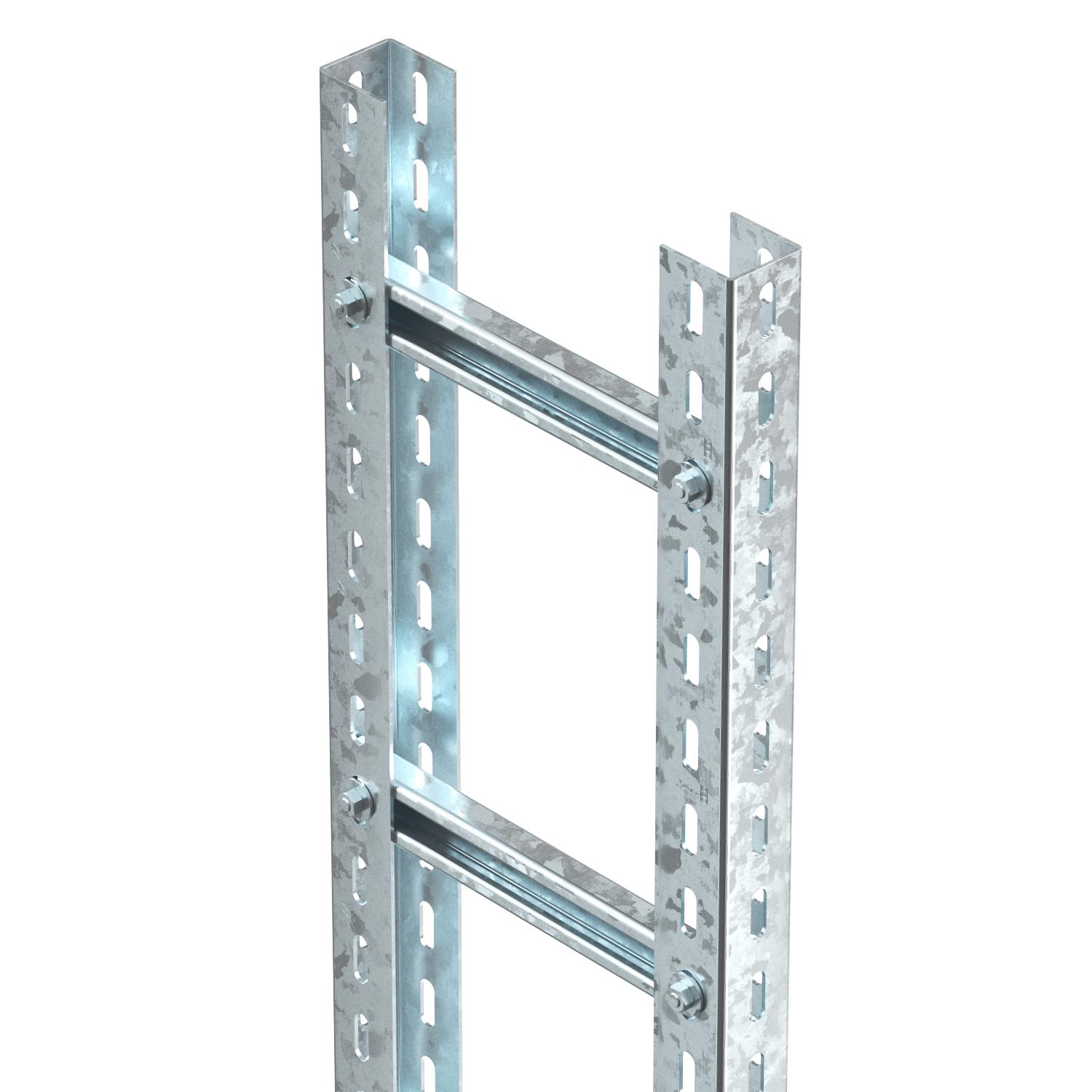

Vertical ladder, SLM50

Item no. 6010006 | EAN 4012196814213

Item no. / Types

Width

Product description

Product description

Heavyweight vertical ladder system for the maintenance of electrical function to DIN 4102 Part 12. Approved clips, type BS-U1-M-… FT. Supplied unmounted.

Technical data

Technical data

Dimension	300x3000mm
Fire protection	Maintenance of electrical function of standard support structure
Maintain electrical functions	yes
Material	Steel
Rung distance	300 mm

Rustproof steel, pickled	no
Side perforation	yes
Surface	Hot-dip galvanised
Version of the rungs	Profile unperforated

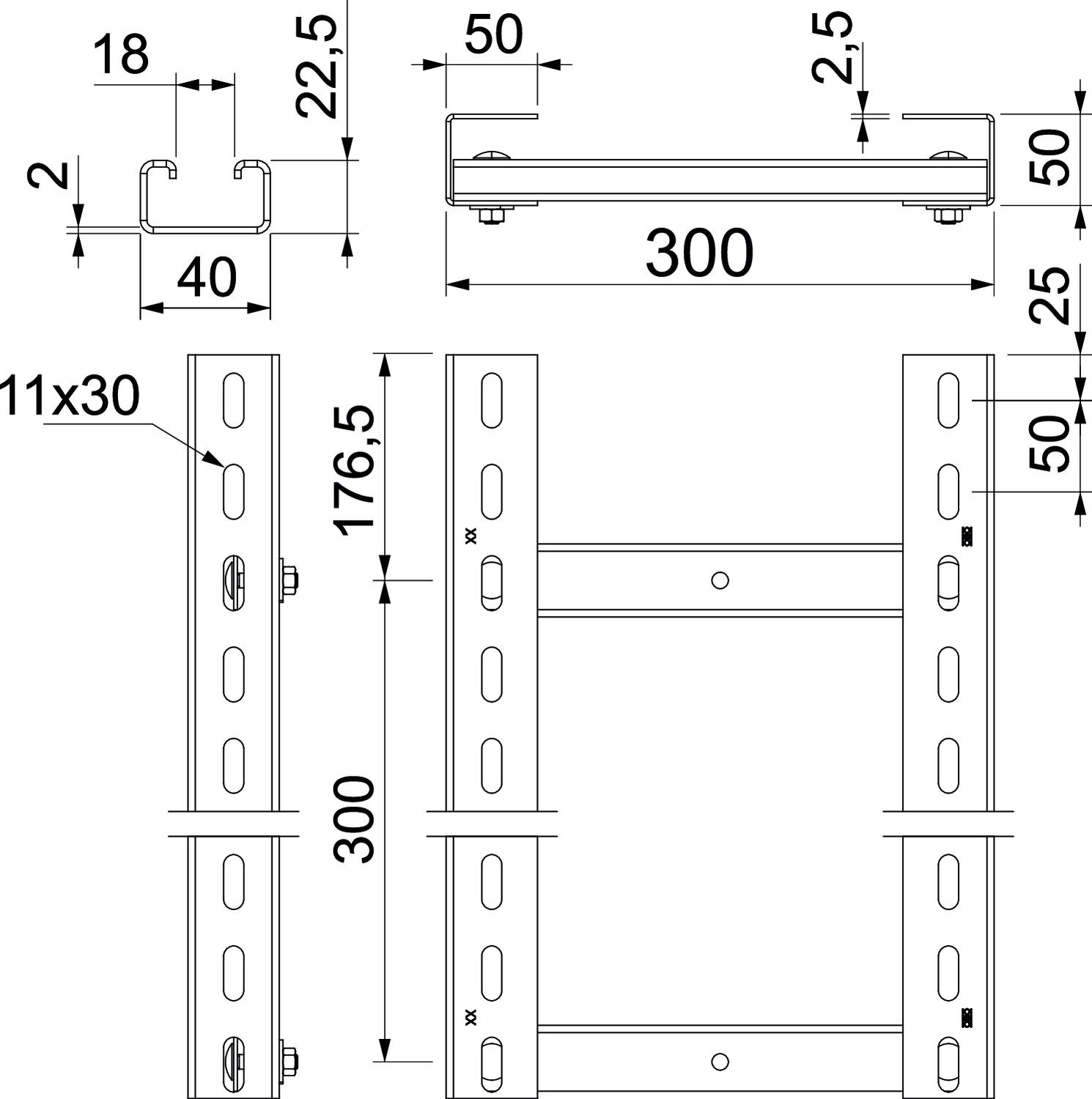

Dimensions

Dimension B	300 mm
Height	50 mm
Length	3000 mm

Rung slot dimension	2,00
Width	300 mm

All types

All types

Types	Width	Item no.	Quantity	SSU
SLM50C40F 20 FT	200 mm	6010004	m	3 m
SLM50C40F 30 FT	300 mm	6010006	m	3 m
SLM50C40F 40 FT	400 mm	6010008	m	3 m
SLM50C40F 50 FT	500 mm	6010016	m	3 m
SLM50C40F 60 FT	600 mm	6010024	m	3 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Strain relief on three sides, with mineral wool, internal height 115 mm	ZSE90-35-11	7215706	piece	1 piece
Strain relief on three sides, with mineral wool, internal height 175 mm	ZSE90-35-17	7215716	piece	1 piece

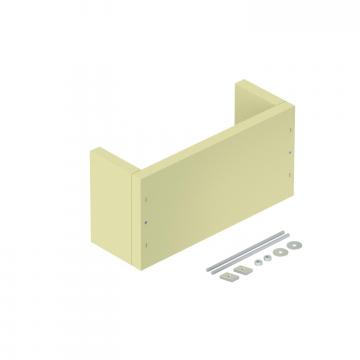

Strain relief on three sides, empty housing, internal height 115 mm	ZSE90-35-11 L	7215762	piece	1 piece

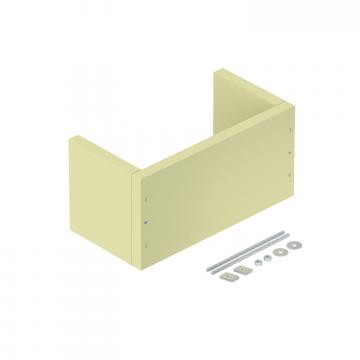

Strain relief on three sides, empty housing, internal height 175 mm	ZSE90-35-17 L	7215768	piece	1 piece

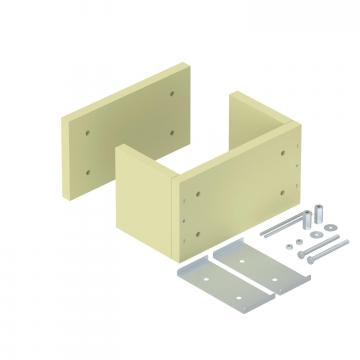

Strain relief on four sides, empty housing, internal height 175 mm	ZSE90-31-17 LH	7215782	piece	1 piece
Identification plate for maintenance of electrical function	KS-E DE	7205423	piece	10 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
U support connector FT	VUS 5 FT	6018505	piece	10 piece
Head plate US 5 NOK FT	KUS 5 NOK FT	6348939	piece	1 piece
Head plate US 5	KUS 5 FT	6348904	piece	1 piece
Mounting bracket, 90° with 3 holes FT	GMS 3 VW 90 FT	1124661	piece	10 piece
