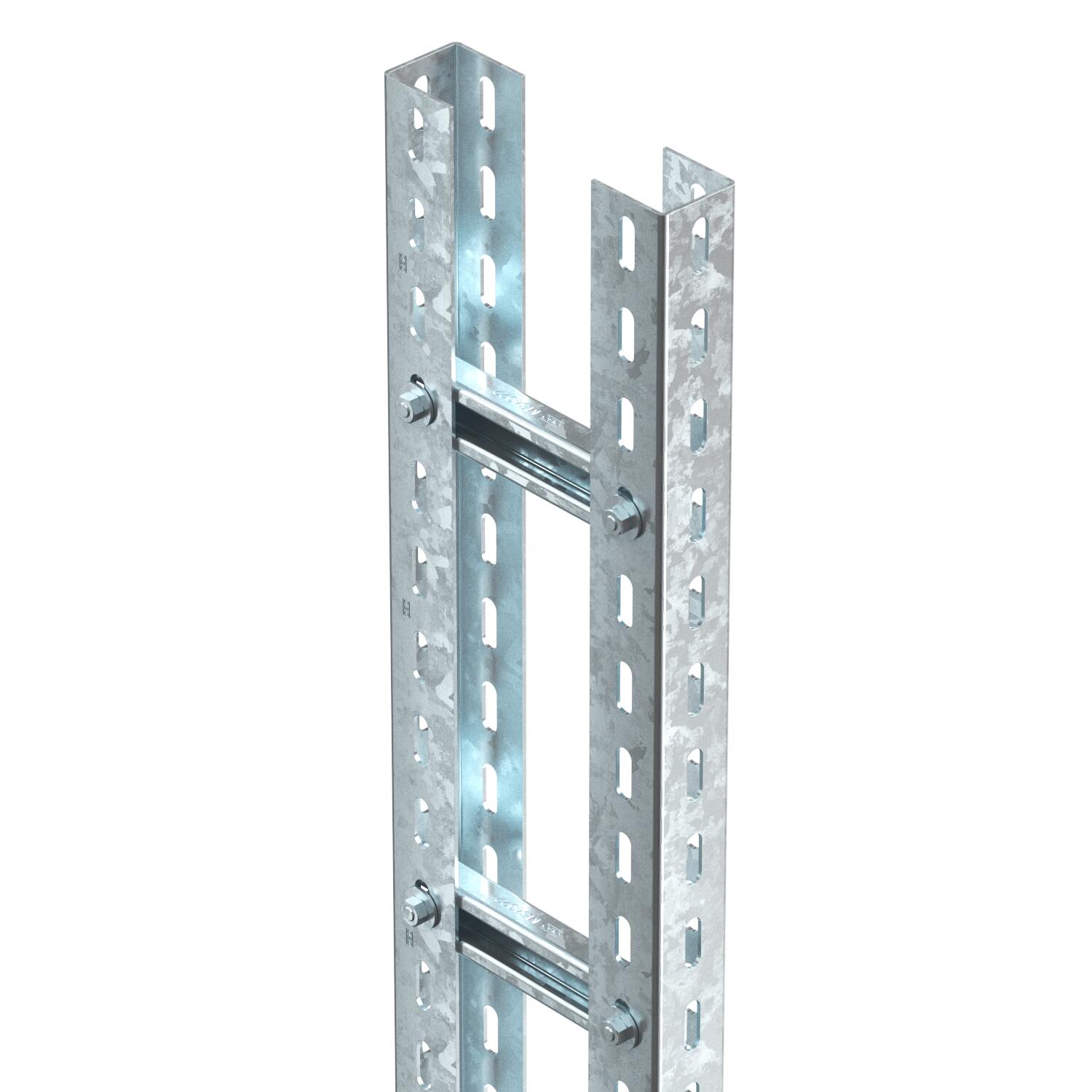

Vertical ladder, SLM50

Item no. 6010004 | EAN 4012196814206

Item no. / Types

Width

Product description

Product description

Heavyweight vertical ladder system for the maintenance of electrical function to DIN 4102 Part 12. Approved clips, type BS-U1-M-… FT. Supplied unmounted.

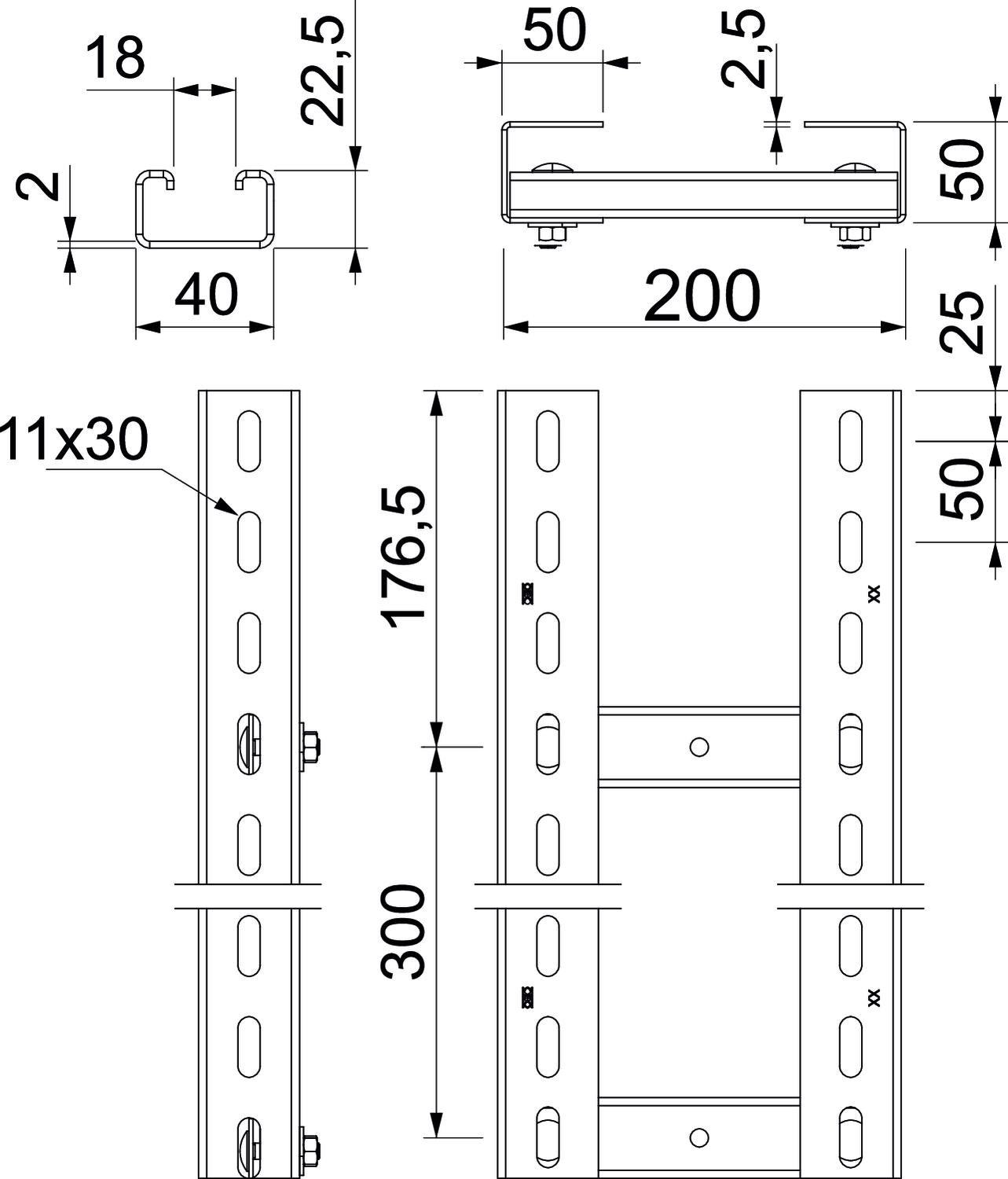

Technical data

Technical data

Dimension	200x3000mm
Dimension B	200 mm
Fire protection	Maintenance of electrical function of standard support structure
Height	50 mm
Length	3000 mm
Maintain electrical functions	yes
Material	Steel

Rung distance	300 mm
Rung slot dimension	2,00
Rustproof steel, pickled	no
Side perforation	yes
Surface	Hot-dip galvanised
Version of the rungs	Profile unperforated
Width	200 mm

All types

All types

Types	Width	Item no.	Quantity	SSU
SLM50C40F 20 FT	200 mm	6010004	m	3 m
SLM50C40F 30 FT	300 mm	6010006	m	3 m
SLM50C40F 40 FT	400 mm	6010008	m	3 m
SLM50C40F 50 FT	500 mm	6010016	m	3 m
SLM50C40F 60 FT	600 mm	6010024	m	3 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

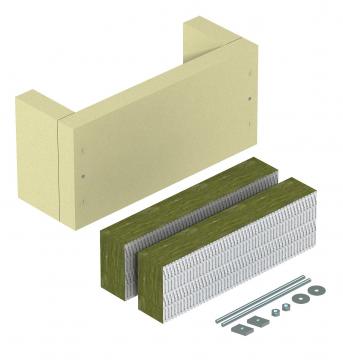

Strain relief on three sides, with mineral wool, internal height 115 mm	ZSE90-25-11	7215702	piece	1 piece
Strain relief on three sides, with mineral wool, internal height 175 mm	ZSE90-25-17	7215713	piece	1 piece

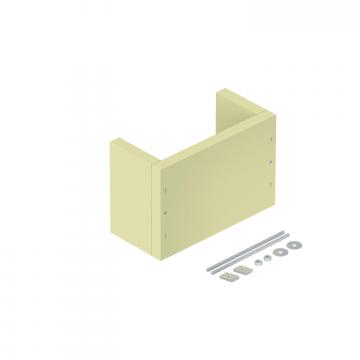

Strain relief on three sides, empty housing, internal height 115 mm	ZSE90-25-11 L	7215760	piece	1 piece

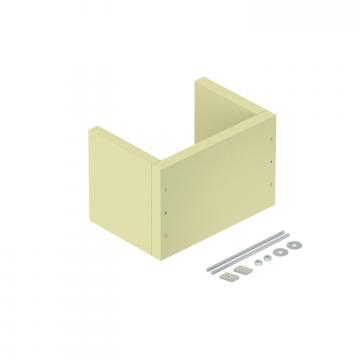

Strain relief on three sides, empty housing, internal height 175 mm	ZSE90-25-17 L	7215766	piece	1 piece

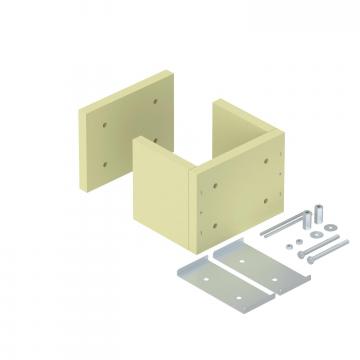

Strain relief on four sides, empty housing, internal height 175 mm	ZSE90-21-17 LH	7215780	piece	1 piece
Identification plate for maintenance of electrical function	KS-E DE	7205423	piece	10 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
U support connector FT	VUS 5 FT	6018505	piece	10 piece

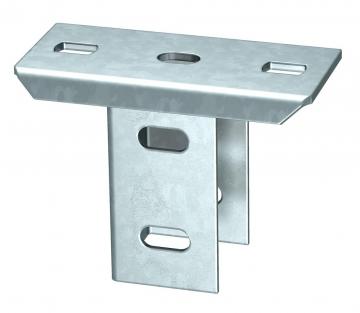

Head plate US 5 NOK FT	KUS 5 NOK FT	6348939	piece	1 piece

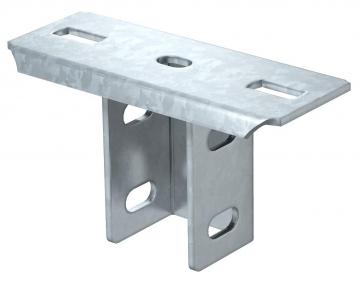

Head plate US 5	KUS 5 FT	6348904	piece	1 piece

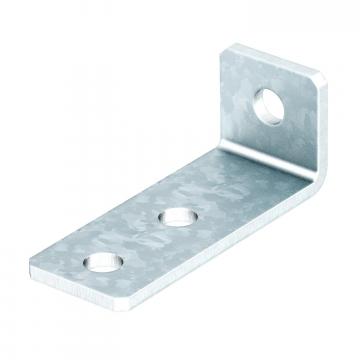

Mounting bracket, 90° with 3 holes FT	GMS 3 VW 90 FT	1124661	piece	10 piece
