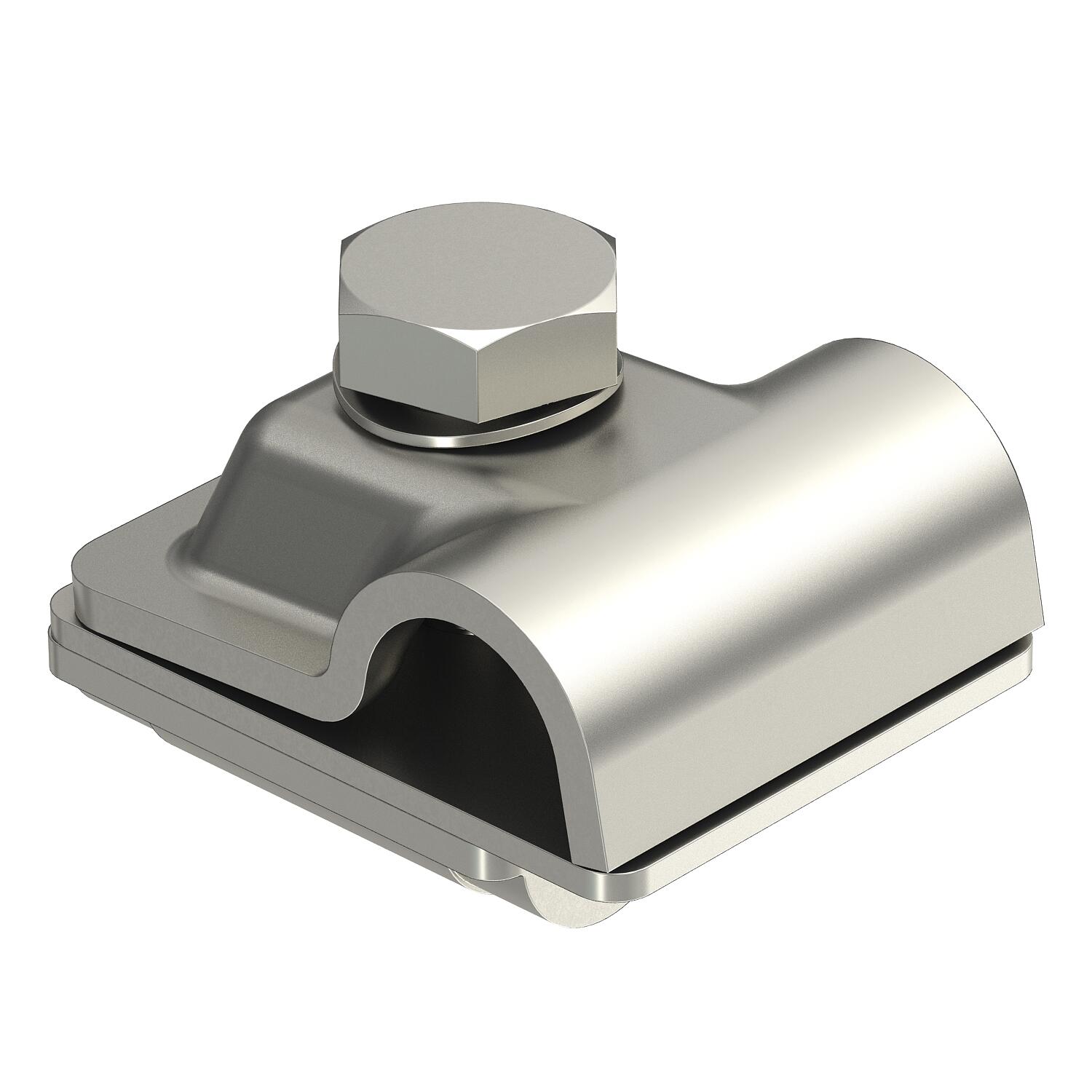

Vario quick connector Rd 8-10x16
Item no. 5311590 | EAN 4012195925446
- Product description
-
Product description

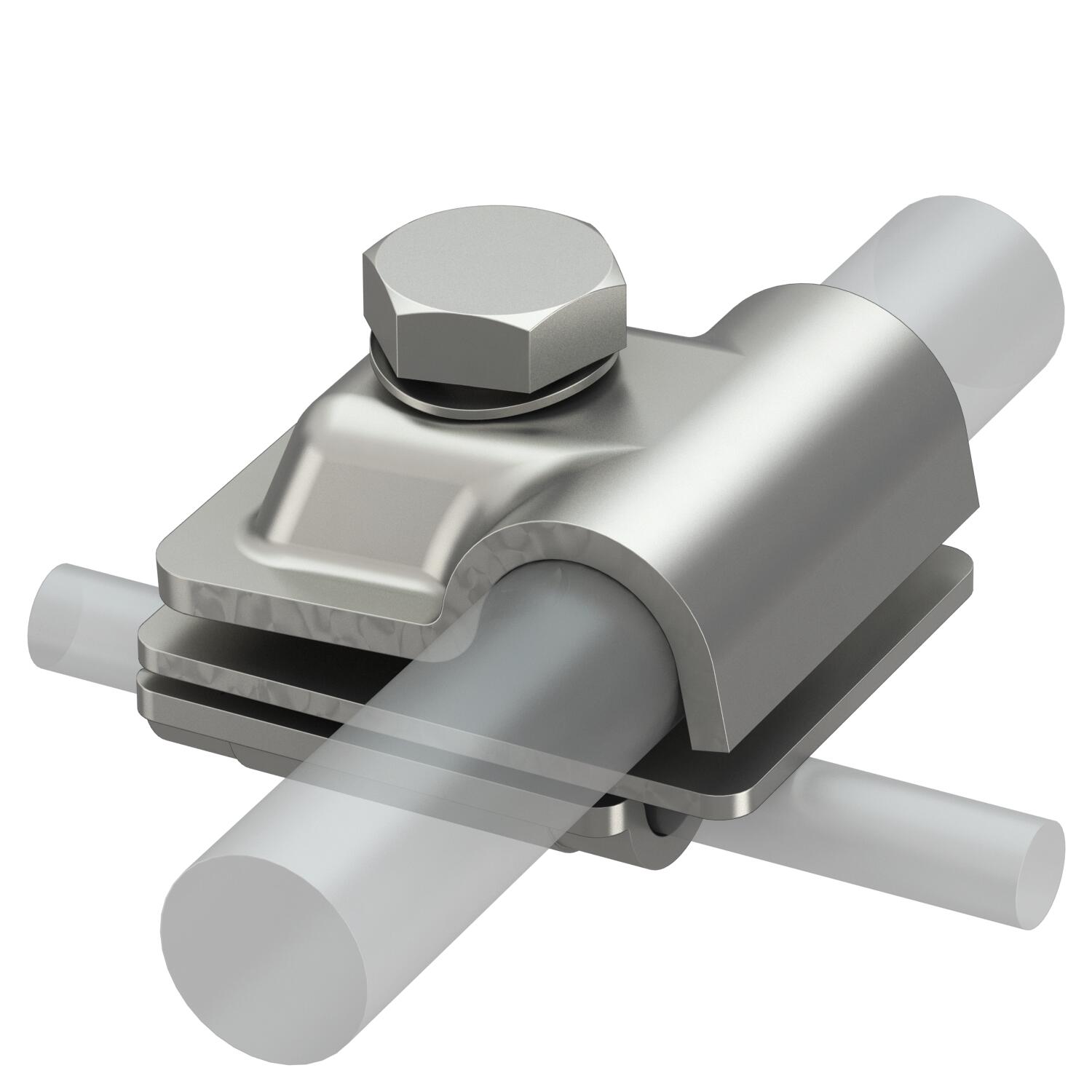

• For T, cross-over and parallel connections with adapter plates
• Quick mounting using an M10 x 30 bolt, made from rustproof stainless steel
• With sprung washer to DIN 137
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
-
- Technical data
-
Technical data

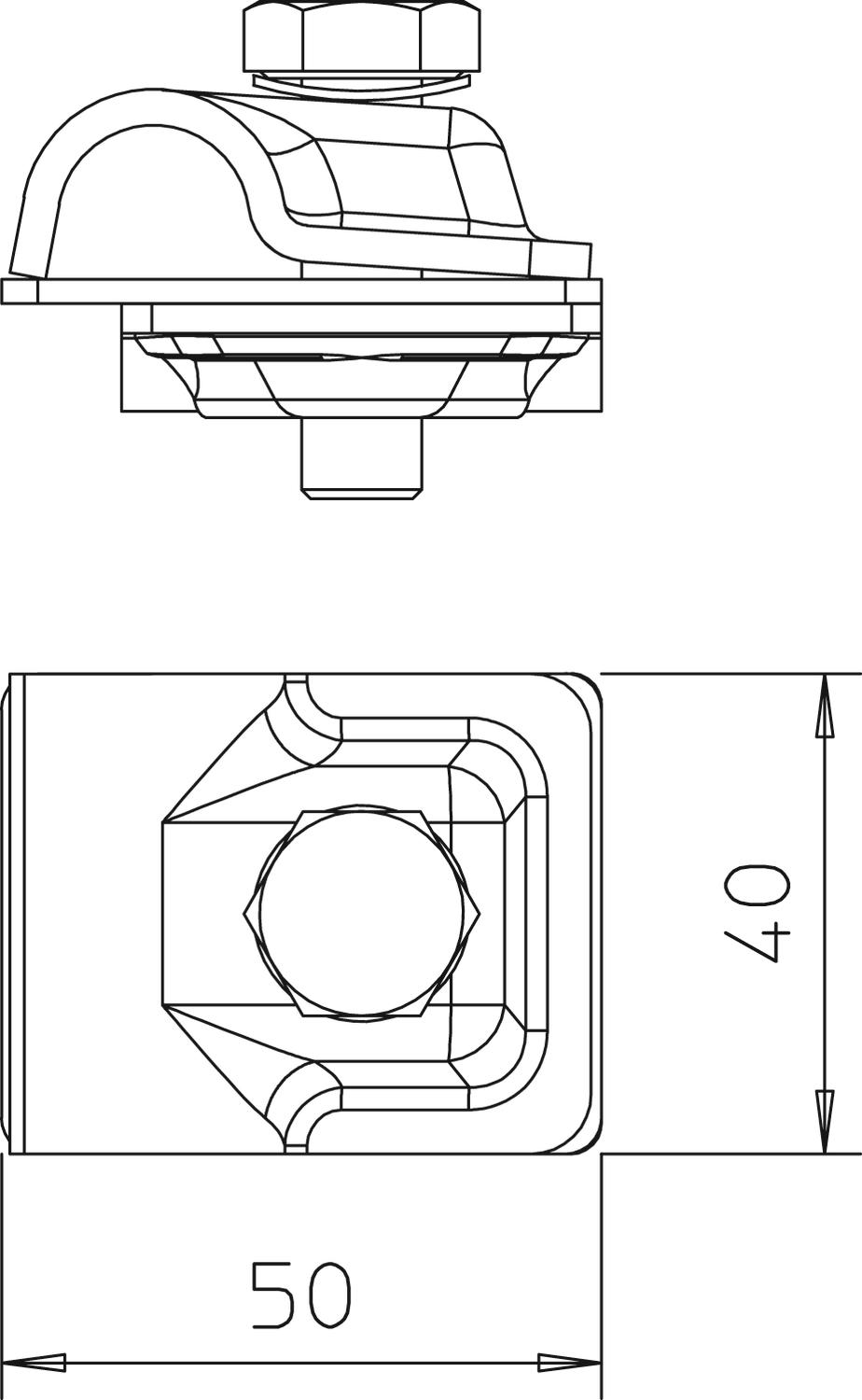

Dimension 50x40mm Dimension A 40 mm Fit 8-10x16 mm Intermediate plate no Lightning current carrying capacity H/100 kA Material Stainless steel Round conductor diameter, conductor 1, max. 10 mm Round conductor diameter, conductor 1, min. 8 mm Round conductor diameter, conductor 2, max. 16 mm Short-circuit current (50 HZ)(1 s;≤300°C) 7,9 Suitable for connection Round conductor Rd 8-10 / Rd 16 Type of connector Multipurpose connection clamp Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 249 8-10X16 VA / 5311590 , 0.18MB , pdfREACH Declaration of conformity 249 8-10X16 VA / 5311590 , 0.12MB , pdfRoHS Declaration of conformity 249 8-10X16 VA / 5311590 , 0.12MB , pdfMounting instructions Vario-Schnellverbinder , 1.09MB , pdf
