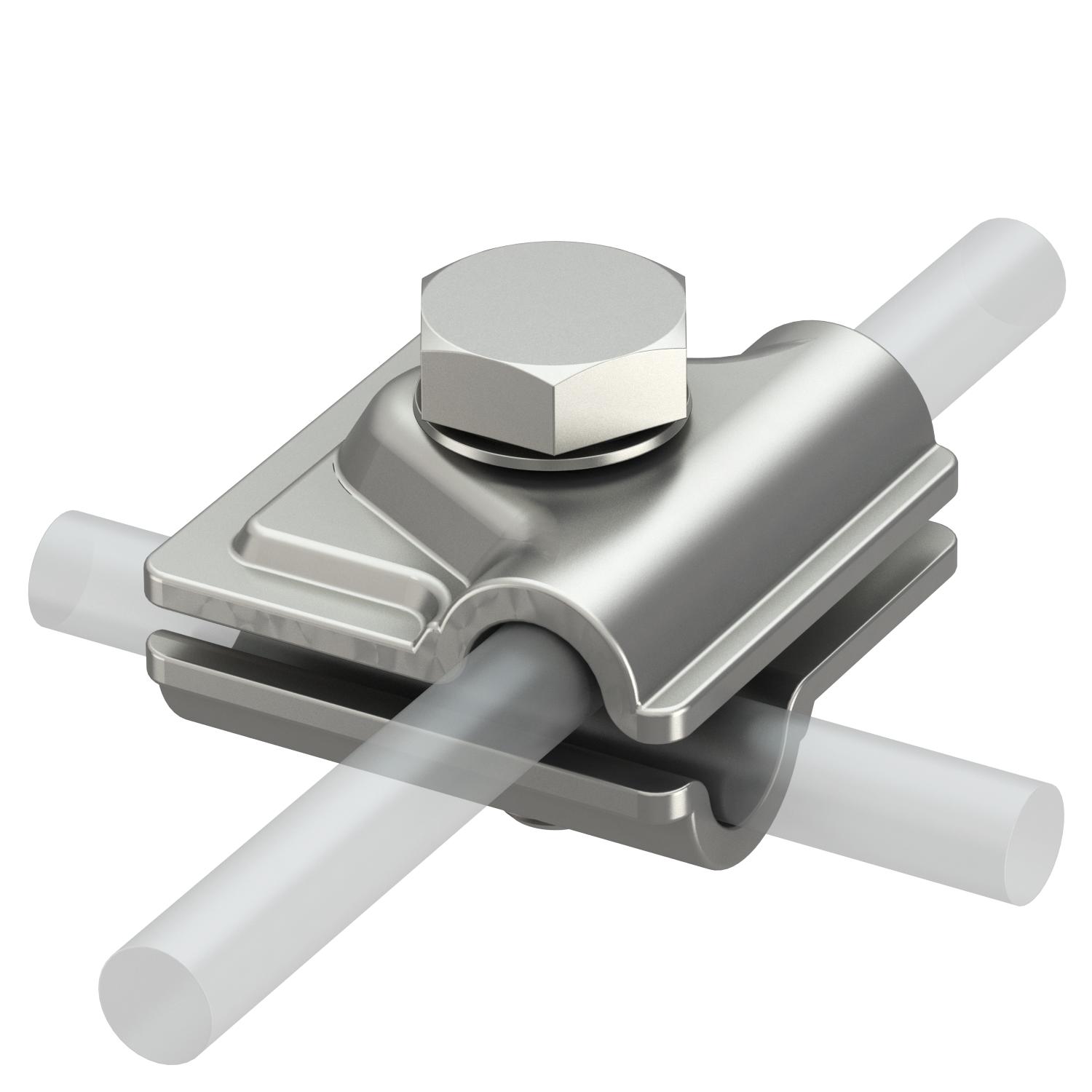

Vario quick connector A4
Item no. 5311404 | EAN 4012196466283
- Product description
-
Product description
• For T, cross-over and parallel connections
• Complete component made of A4
• Quick mounting using an M10 x 30 bolt, made from rustproof stainless steel
• Meets the requirements of VDE 0185-305 (IEC 62305)
-
- Technical data
-
Technical data

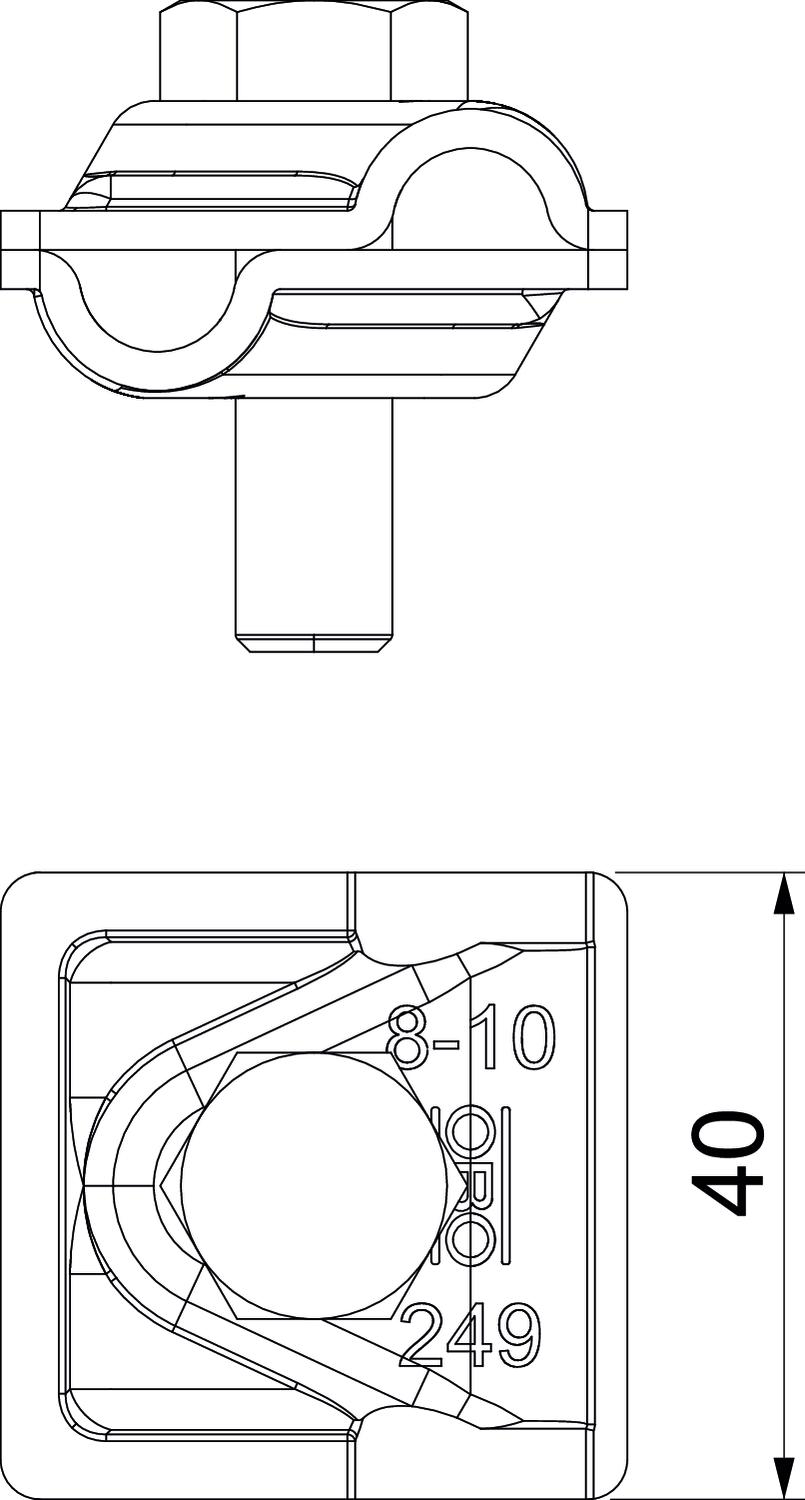

Connection Round conductor Dimension 40x40mm Dimension A 40 mm Fit Rd 8-10 mm Intermediate plate no Length 40 mm Lightning current carrying capacity H/100 kA Material Stainless steel Round conductor diameter, conductor 1, max. 10 mm Round conductor diameter, conductor 1, min. 8 mm Round conductor diameter, conductor 2, max. 10 mm Round conductor diameter, conductor 2, min. 8 mm Short-circuit current (50 HZ)(1 s;≤300°C) 1,4 Suitable for connection Round conductor Rd 8–10 / Rd 8–10 TBS application Connection system Type of connector Multipurpose connection clamp Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 249 8-10 V4A / 5311404 , 0.20MB , pdfREACH Declaration of conformity 249 8-10 V4A / 5311404 , 0.12MB , pdfRoHS Declaration of conformity 249 8-10 V4A / 5311404 , 0.12MB , pdfMounting instructions Vario quick connector 249 8-10 ZV , 1.52MB , pdf
