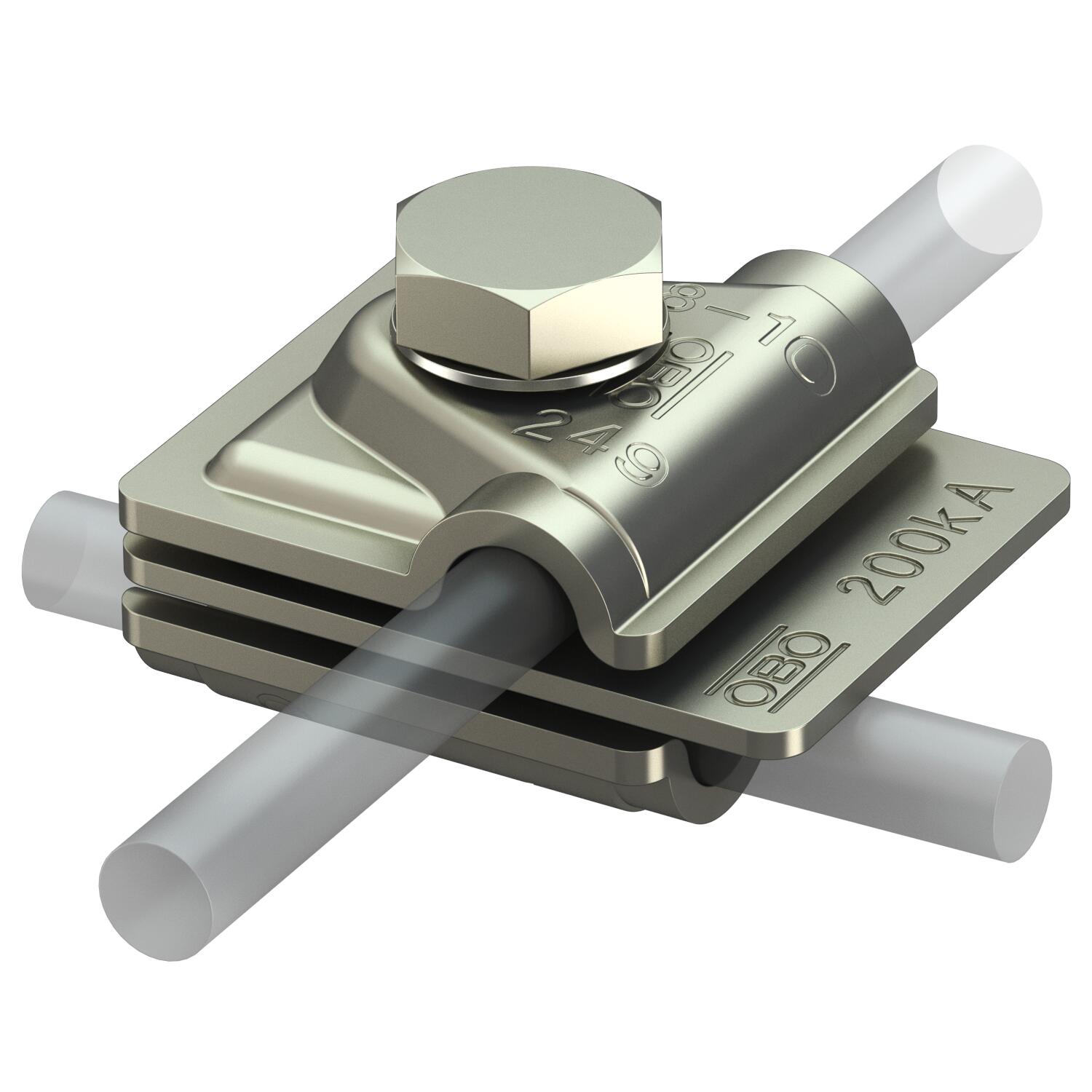

Vario quick connector 200 kA
Item no. 5311595 | EAN 4012196656141
- Product description
-
Product description
• For T, intersection and parallel connections
• Quick mounting using an M10 x 30 bolt, made from rustproof stainless steel
• Meets the requirements of VDE 0185-305 (IEC 62305)
• Tested according to VDE 0185-561-1 (IEC/EN 62561-1) with 200 kA
• For use in lightning protection class I with the isCon® Premium conductor
-
- Technical data
-
Technical data

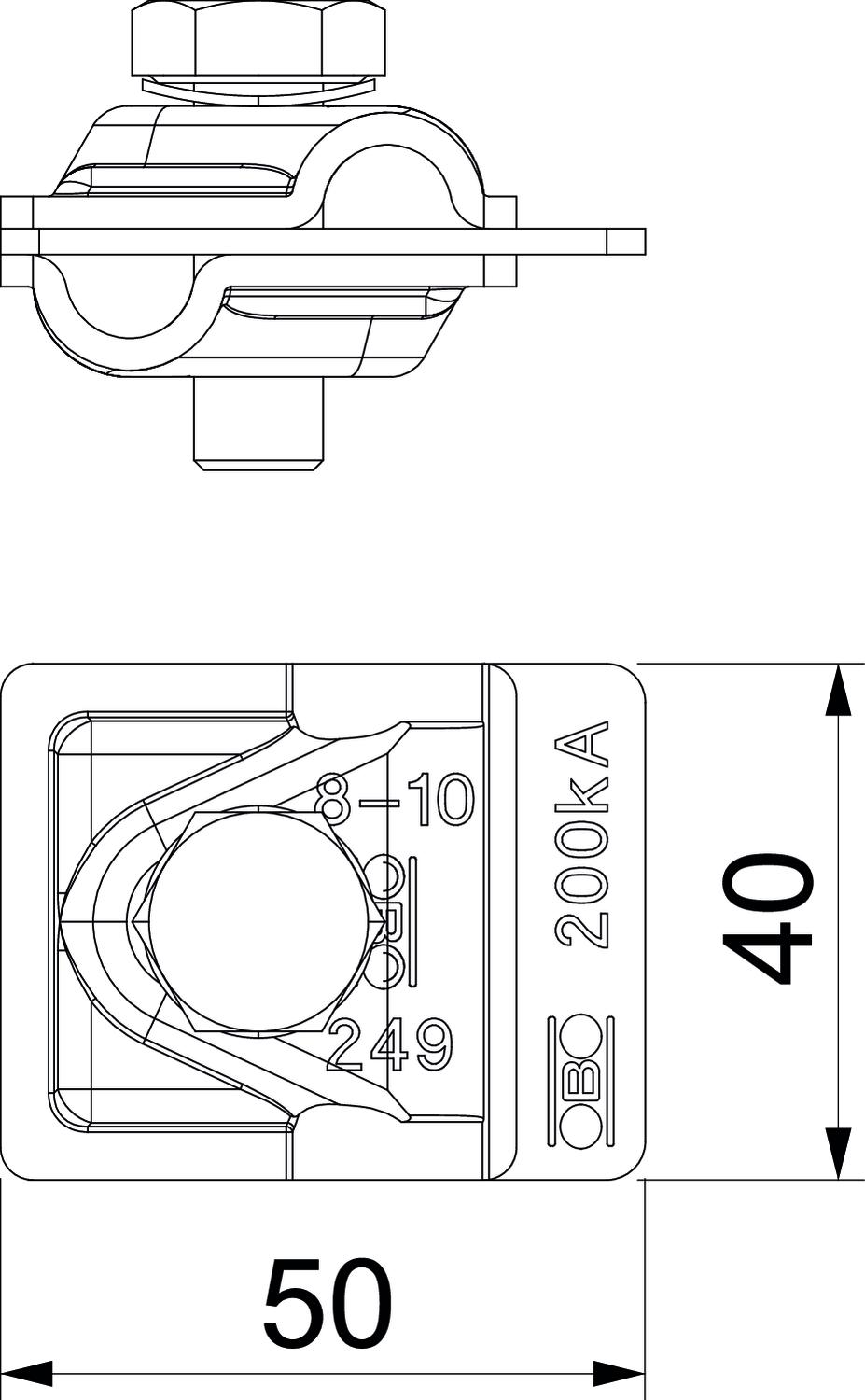

Dimension 50x40mm Fit Rd 8-10 mm Intermediate plate no Lightning current carrying capacity H2/200 kA Material Stainless steel Round conductor diameter, conductor 1, max. 10 mm Round conductor diameter, conductor 1, min. 8 mm Round conductor diameter, conductor 2, max. 10 mm Round conductor diameter, conductor 2, min. 8 mm Suitable for connection Round conductor Rd 8–10 / Rd 8–10 Type of connector Multipurpose connection clamp Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 249 8-10 V2A 200 / 5311595 , 0.21MB , pdfMounting instructions Mounting instructions, quick connector 200 kA , 0.31MB , pdf
