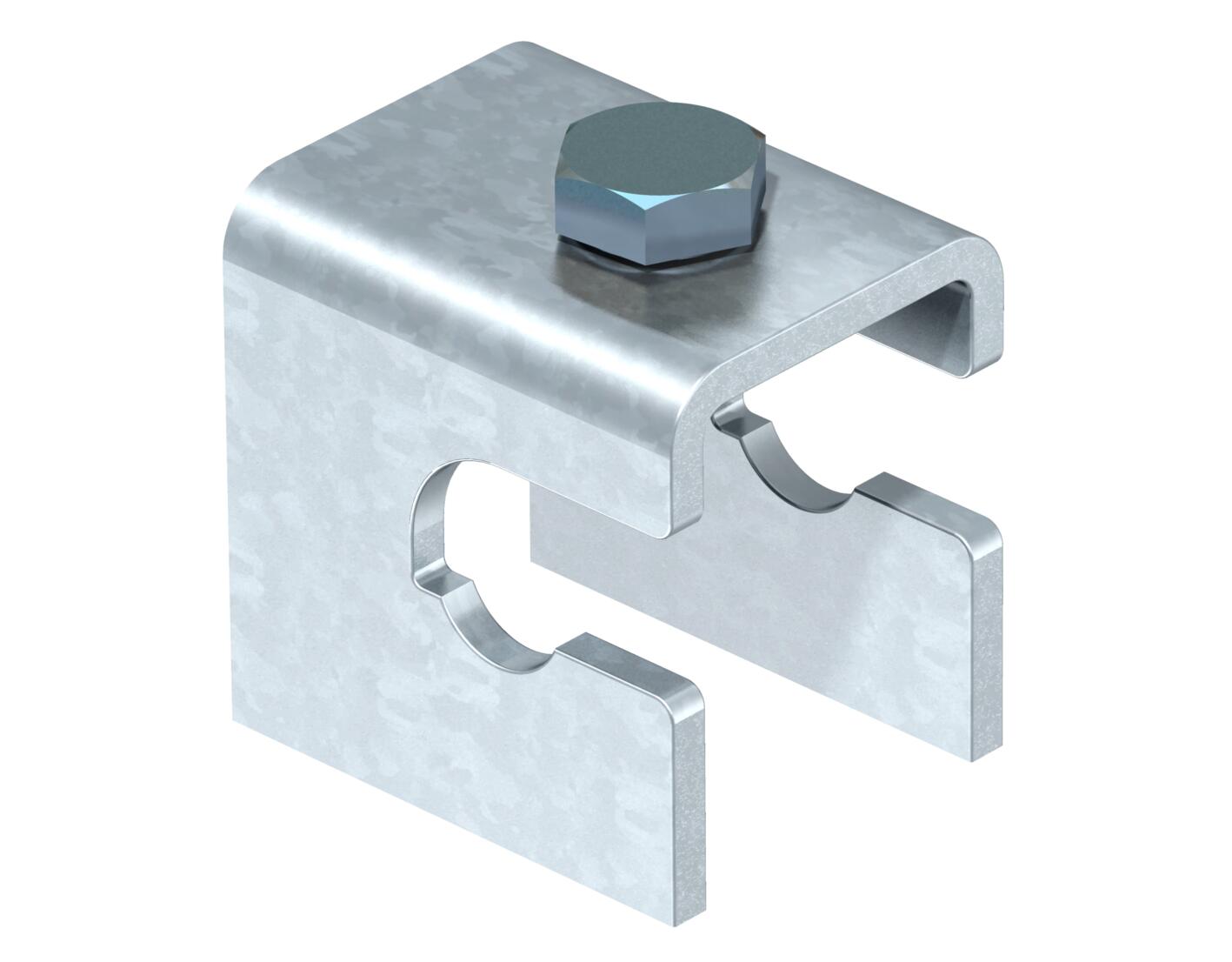

VARIO earthing terminal for reinforced steels
Item no. 5014468 | EAN 4012195105015
- Product description
-
Product description

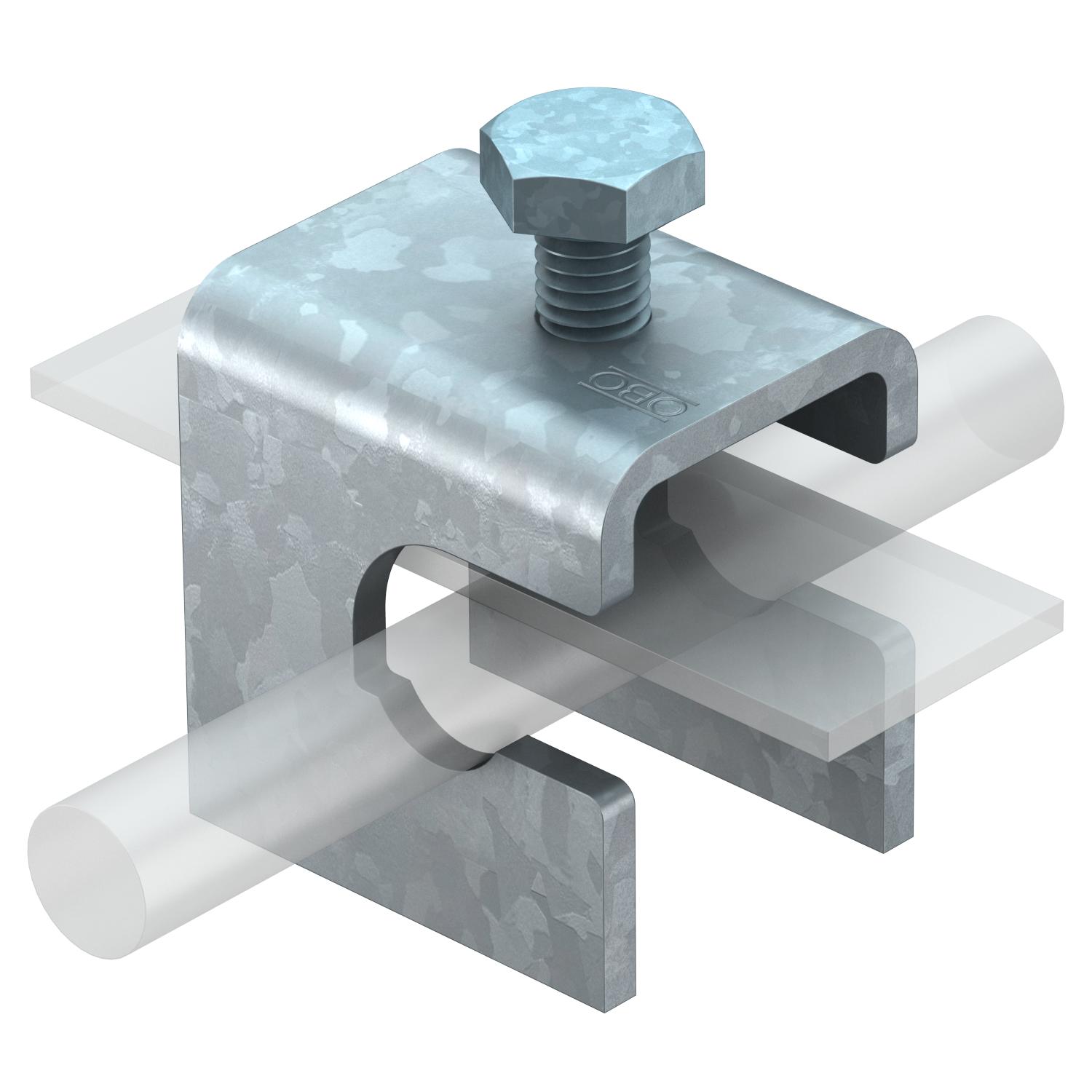

• For reinforced steels with diameters 8-14 mm and FL 30 x 5
• Simple mounting through open slot
• Side suspension possible
-
- Technical data
-
Technical data

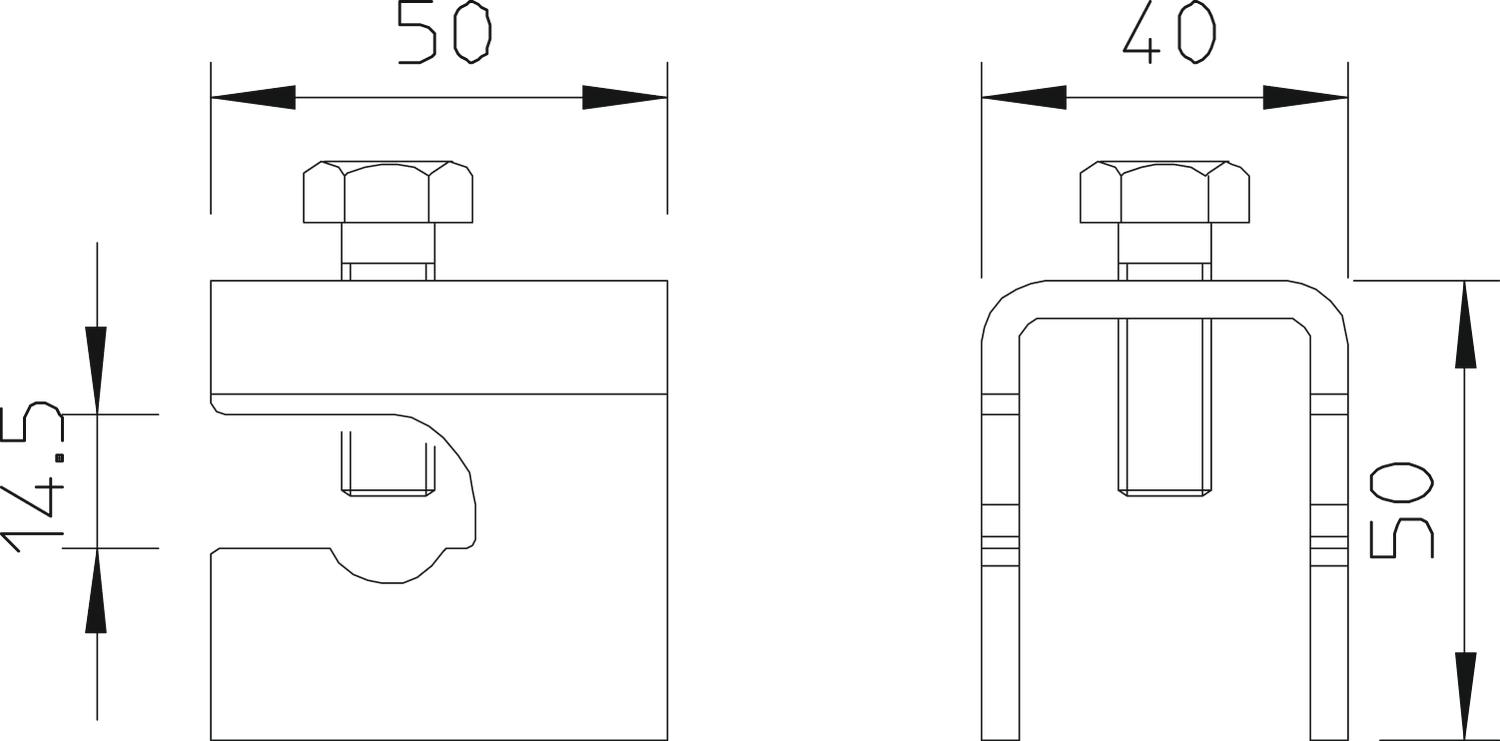

Dimension 50x40x70 Fit FL30x5 x Rd8-14 mm Lightning current carrying capacity N/50 kA Material Steel Short-circuit current (50 HZ)(1 s;≤300°C) 7,3 Suitable for connection Miscellaneous Surface Hot-dip galvanised Type of connector Connectors Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 1814 FT / 5014468 , 0.17MB , pdfDeclaration of conformity 1814 FT / 5014468 , 0.06MB , pdfREACH Declaration of conformity 1814 FT / 5014468 , 0.12MB , pdfRoHS Declaration of conformity 1814 FT / 5014468 , 0.12MB , pdfMounting instructions Mounting instructions, variable earth connection terminal , 1.82MB , pdf
