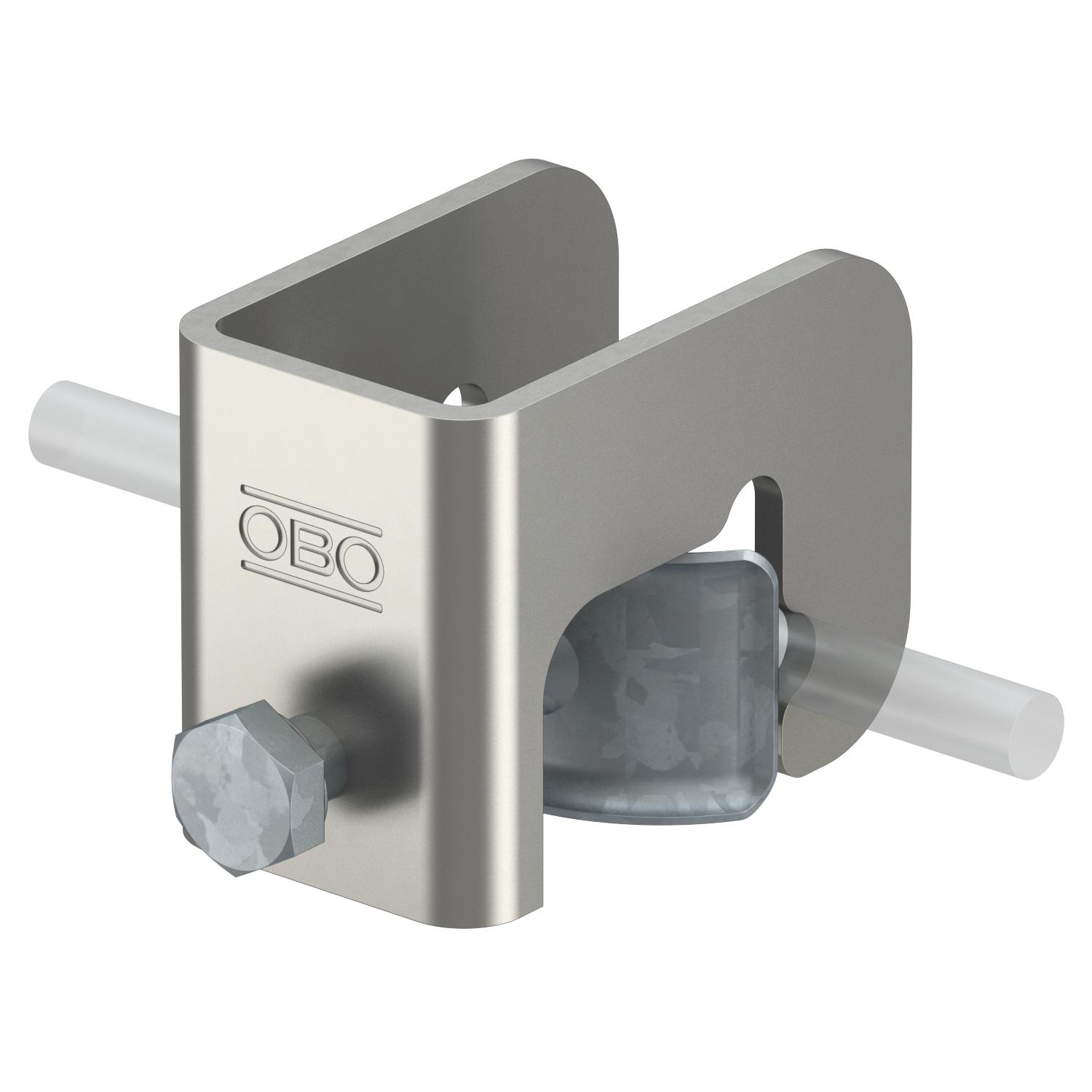

VARIO earthing terminal for large reinforced steels

Item no. 5014477 | EAN 4012196391042

FL30x3-4mm / Rd 10 x Rd 16-37 mm
Product description

Product description

• For armoured steel with 16-37 mm diameter and round conductors and flat conductors

• Rapid installation using open slot and only one M10 bolt

• Rotatable metal pressure trough for simple, safe mounting
  • Lightning current-tested
Technical data

Technical data

Dimension 61x46x88
Earthing connection diameter 20–30 mm
Fit FL30x3-4mm / Rd 10 x Rd 16-37 mm
Lightning current carrying capacity H/100 kA
Material Steel
Suitable for connection Miscellaneous
Type of connector Multipurpose connection clamp
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Item no. Quantity SSU
1814 FT D37 FL30x3-4mm / Rd 10 x Rd 16-37 mm 5014469
25 piece
1814 ST D37 FL30x3-4mm / Rd 10 x Rd 16-37 mm 5014477
25 piece
