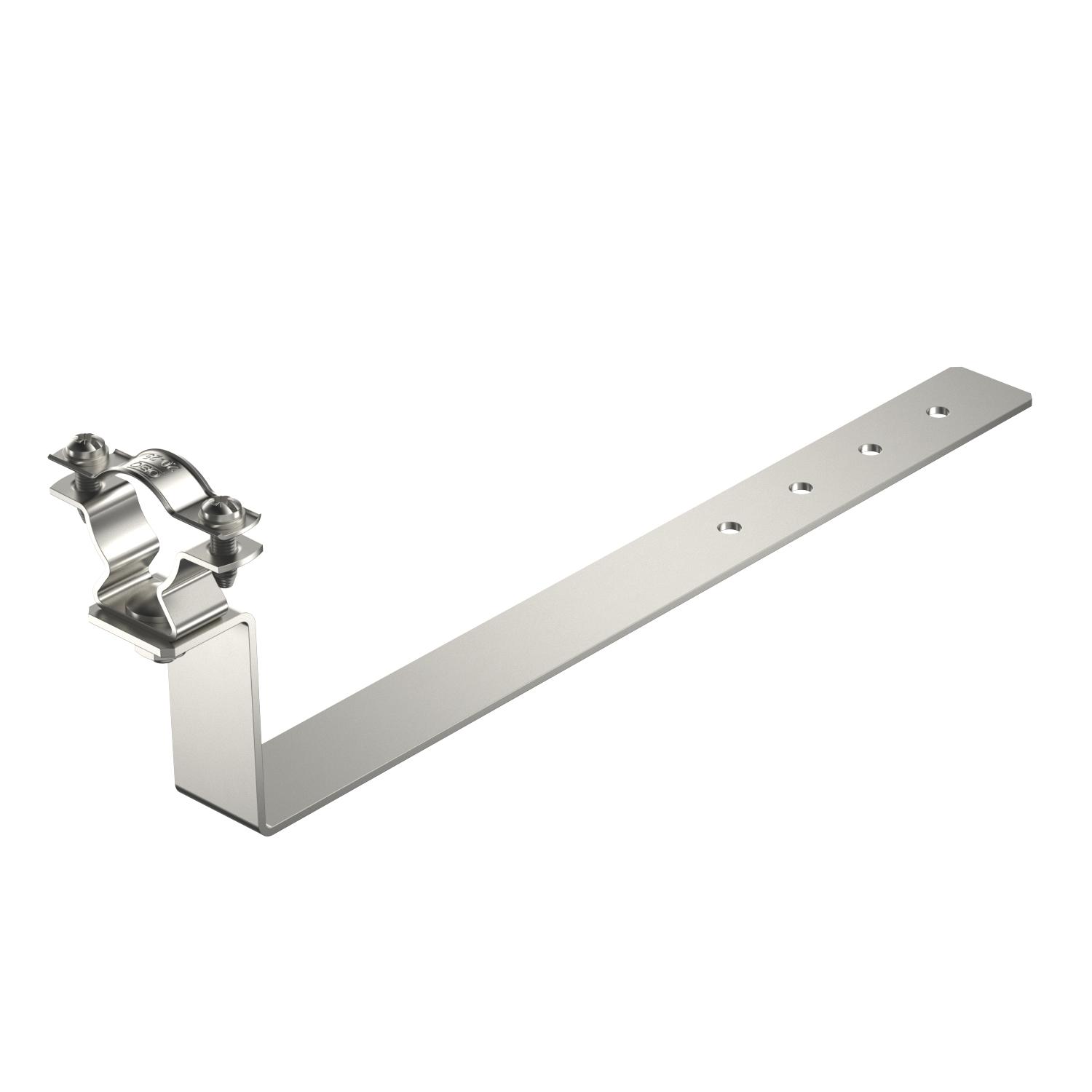

VA roof conductor holder, pitched roofs

Item no. 5408047 | EAN 4012195674870

280 mm
55 mm
Product description

Product description

• For routing of the isCon® conductor on pitched roofs

• Cable bracket with sprung discs to protect the screws against loosening
Technical data

Technical data

Application Pitched roof
Conductor diameter, min. 23
Conductor fastening type With clamp clip
Connection Round conductor

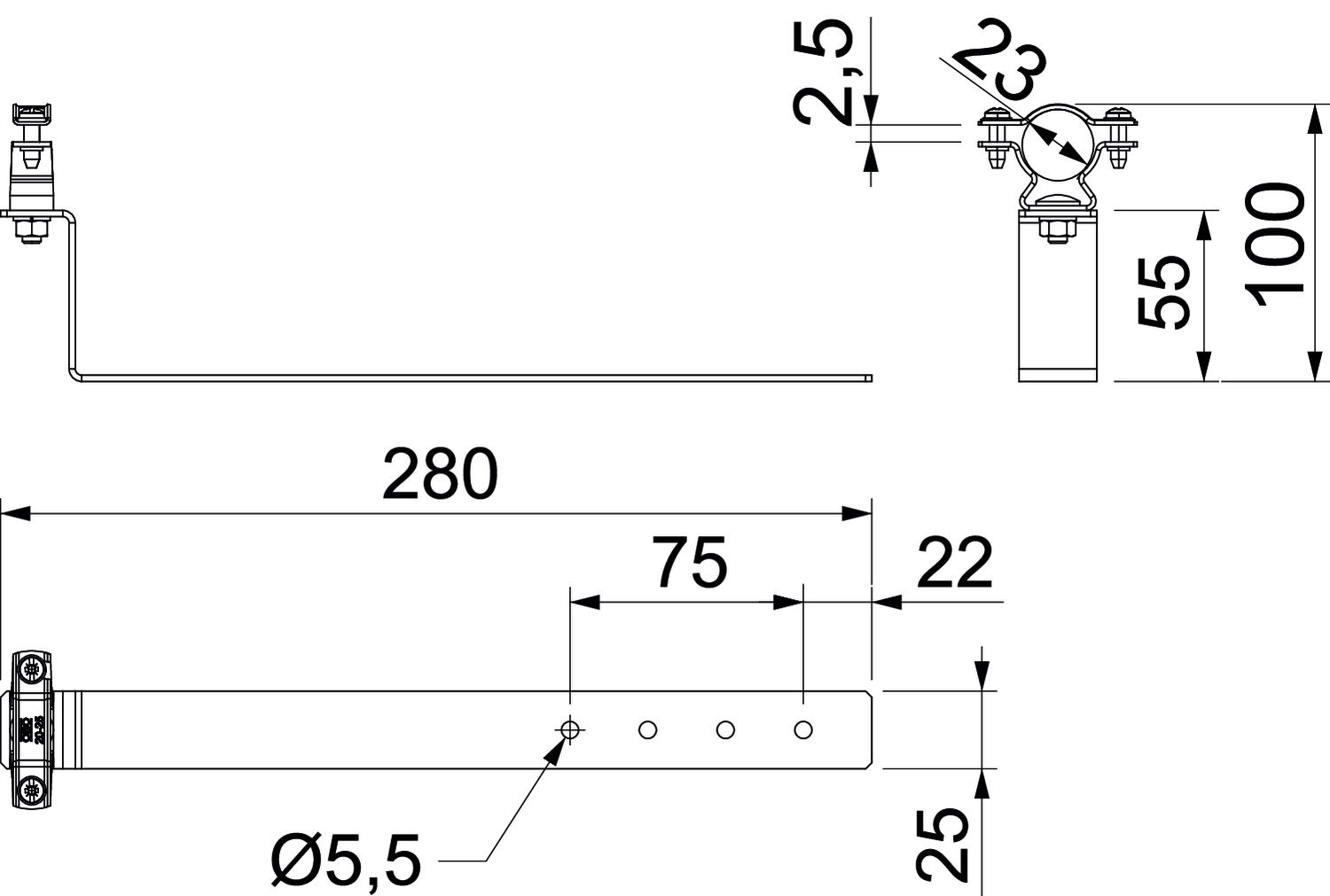

Dimension 280mm
Dimension L 2,5 mm
Length 280 mm
Material Stainless steel
Mounting height 55 mm
Mounting type Screw-on
All types

All types

Types Length Mounting height Conductor diameter, min. Item no. Quantity SSU
isCon H280 VA 280 mm 55 mm 23 5408047
25 piece
isCon H280 26 VA 280 mm 55 mm 26 5408074
25 piece
