VA cable bracket with tightening strap
Item no. 5408068 | EAN 4012195872740
- Product description
-
Product description

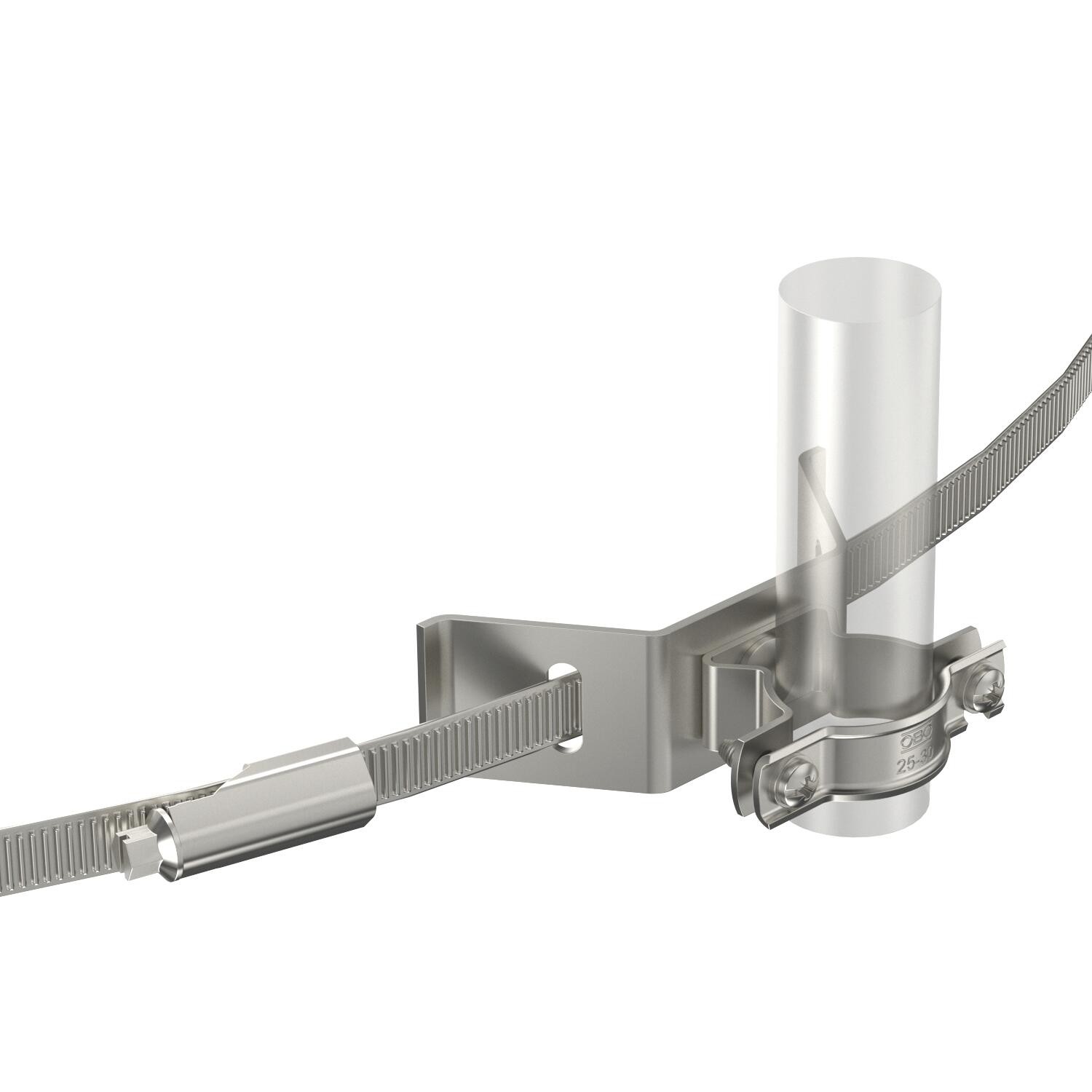

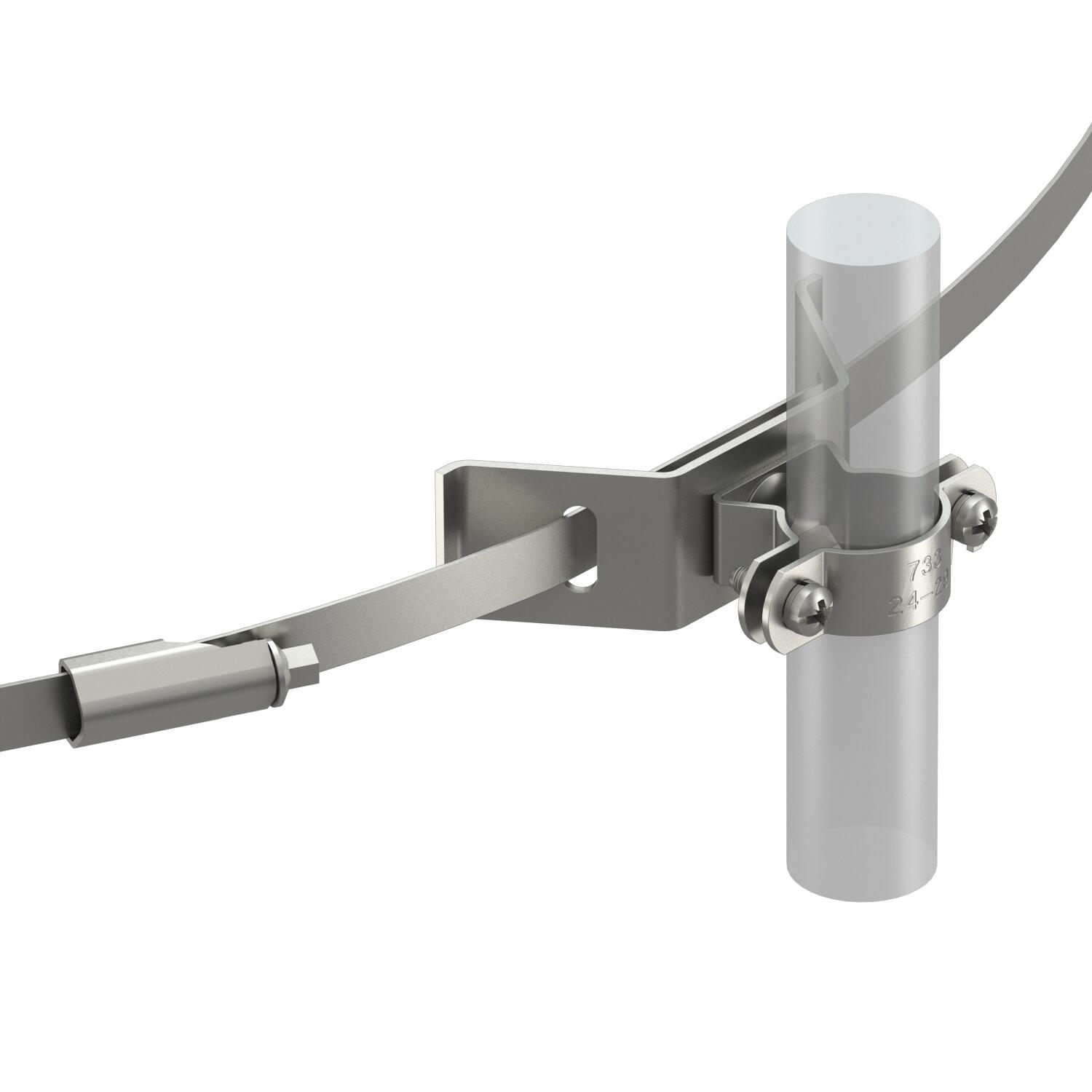

Cable bracket with tightening strap for isCon® conductor, for mounting on pipes with Ø ≤ 600 mm. Including sprung discs to protect the screws against loosening.
- Technical data
-
Technical data

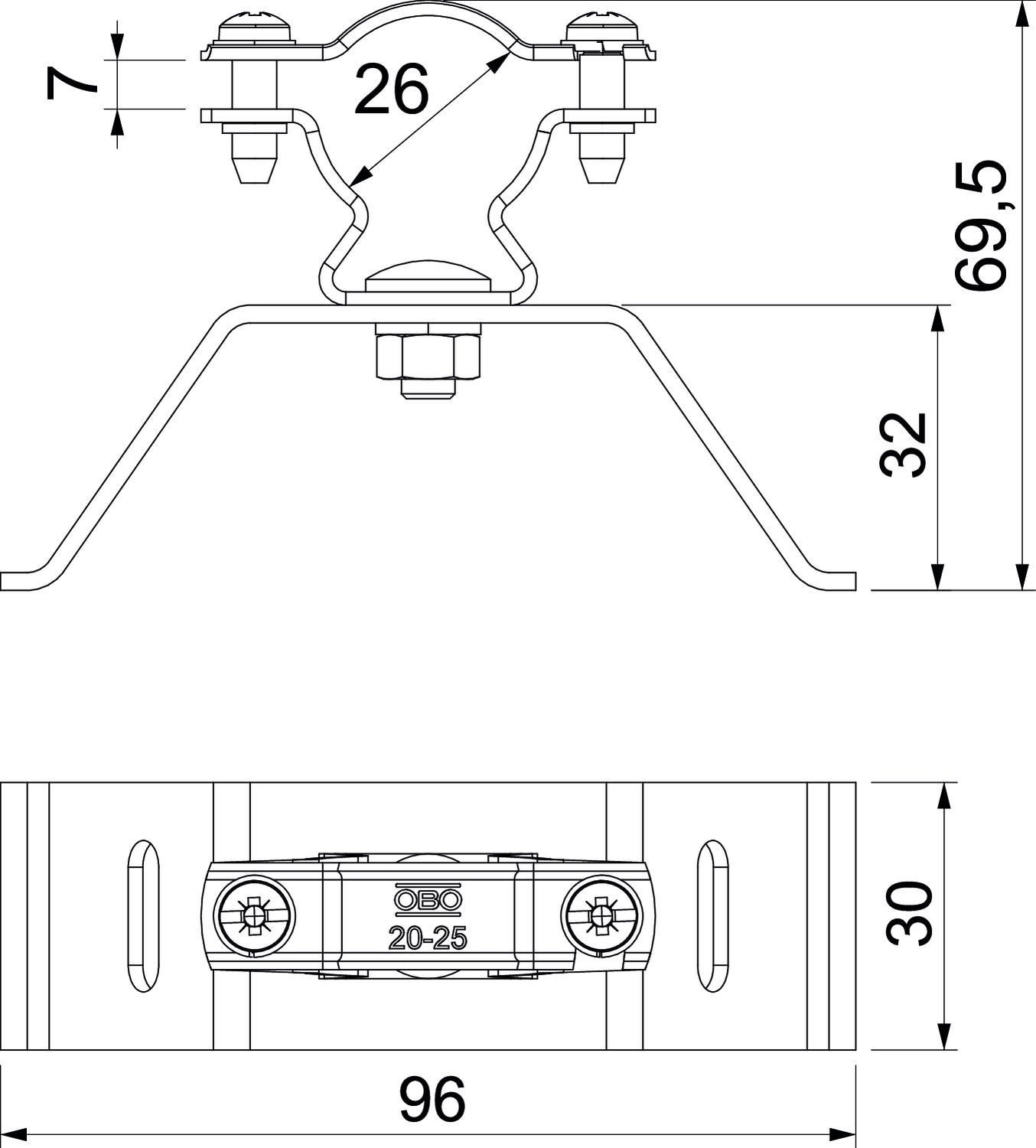

Colour Light grey Dimension Ø26mm Dimension d min. 26 mm Dimension H 69,5 mm Dimension L 7 mm Material Stainless steel Material lower part V2A Material of the base Stainless steel, rustproof 1.4301 Material of the crossbar Stainless steel, rustproof 1.4301 Material upper part V2A - All types
- Downloads
-
Data sheet isCon HS 26 VA / 5408068 , 0.18MB , pdfDeclaration of conformity isCon HS 26 VA / 5408068 , 0.06MB , pdfMounting instructions Extended mounting instructions, long isCon® , 11.88MB , pdf
