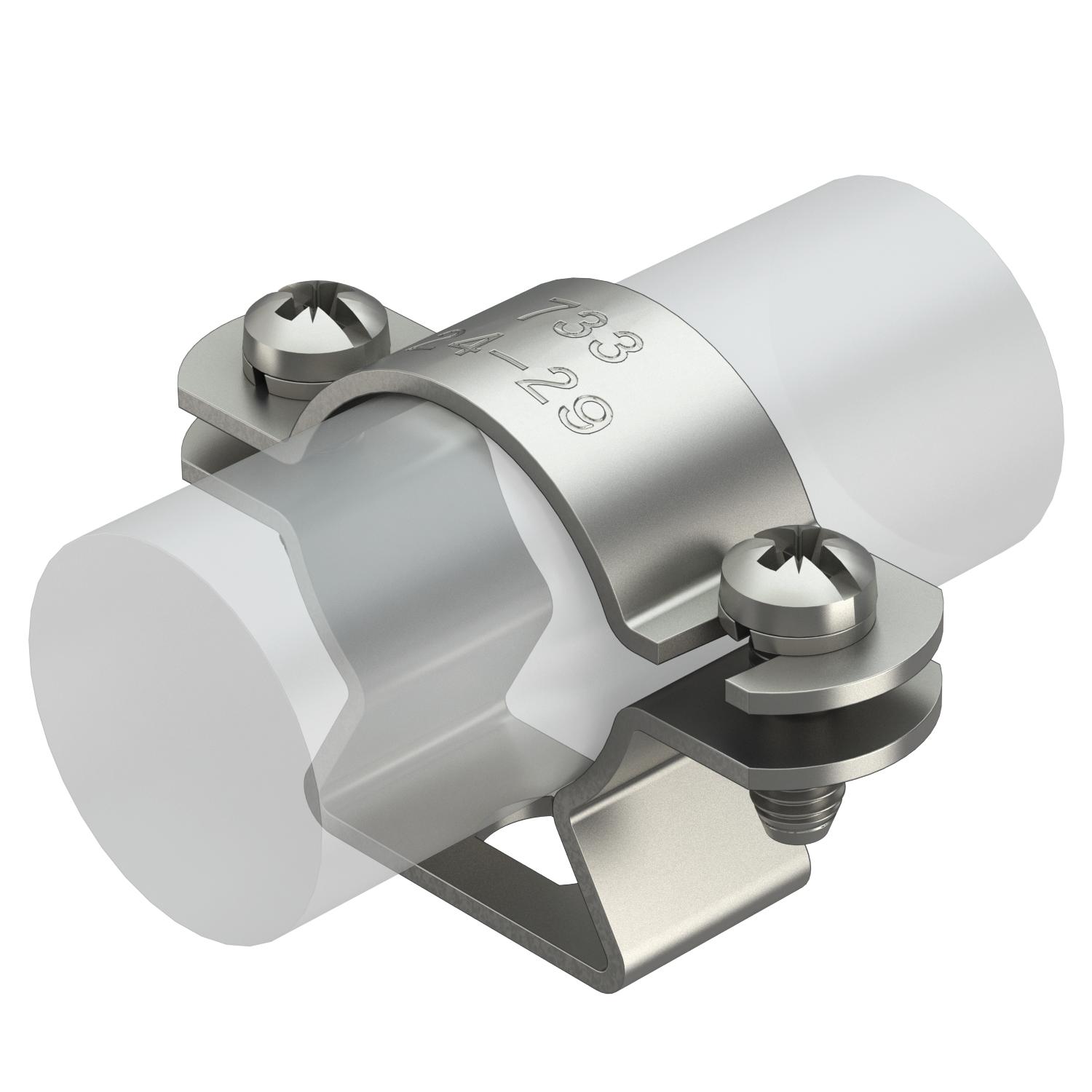

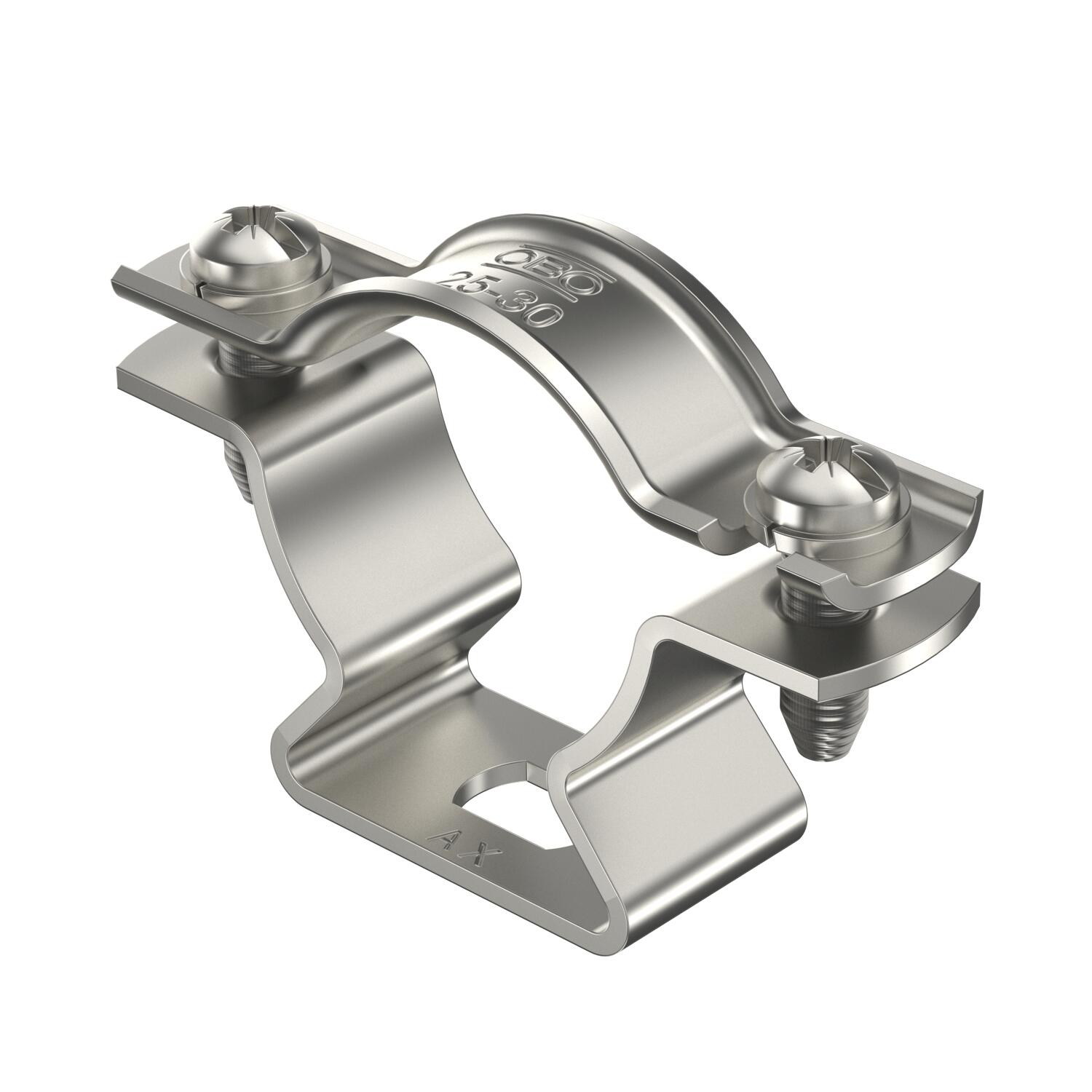

VA cable bracket for isCon® conductor for mounting on roof/wall structures
Item no. 5408064 | EAN 4012195872696
- Product description
-
Product description
• For isCon® conductor for mounting on roof/wall structures
• With sprung discs to protect the screws against loosening
- Technical data
-
Technical data
Cable dimensions 26 mm round Dimension Ø26mm Dimension A 58 mm Dimension B 42 mm Dimension d min. 26 mm Dimension H 37 mm Dimension L 7 mm Dimension t 16 mm Material Stainless steel - All types
- Downloads
-
Data sheet isCon H 26 VA / 5408064 , 0.18MB , pdfDeclaration of conformity isCon H 26 VA / 5408064 , 0.06MB , pdfREACH Declaration of conformity isCon H 26 VA / 5408064 , 0.12MB , pdfRoHS Declaration of conformity isCon H 26 VA / 5408064 , 0.12MB , pdfMounting instructions Extended mounting instructions, long isCon® , 11.88MB , pdf
