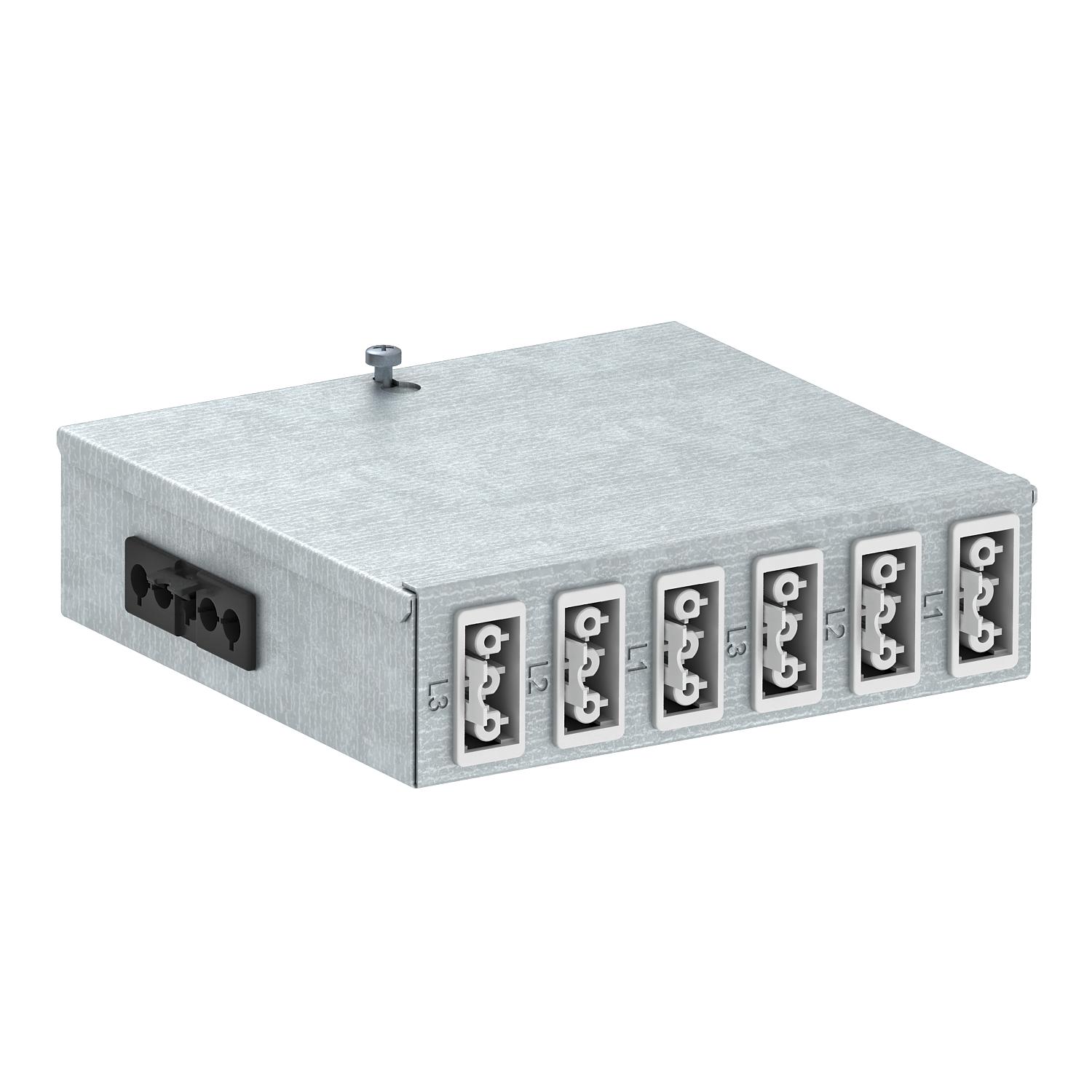

UVS energy distributor with plug connection, special circuit
Item no. 6108014 | EAN 4012195523000
- Product description
-
Product descriptionEnergy distributor for heavy current technology with plug connection, equipped and pre-wired.
Input: One 3-phase circuit using a self-locking connector, 5-pin, type GST18i (connector part).
Output: Six self-locking connectors, 3-pin, in white, 16 A, type GST18i (socket part: 2 x L1, 2 x L2, 2 x L3).
Internal wiring: PVC non-sheathed cable H07V-U2.5.
-
- Technical data
-
Technical data

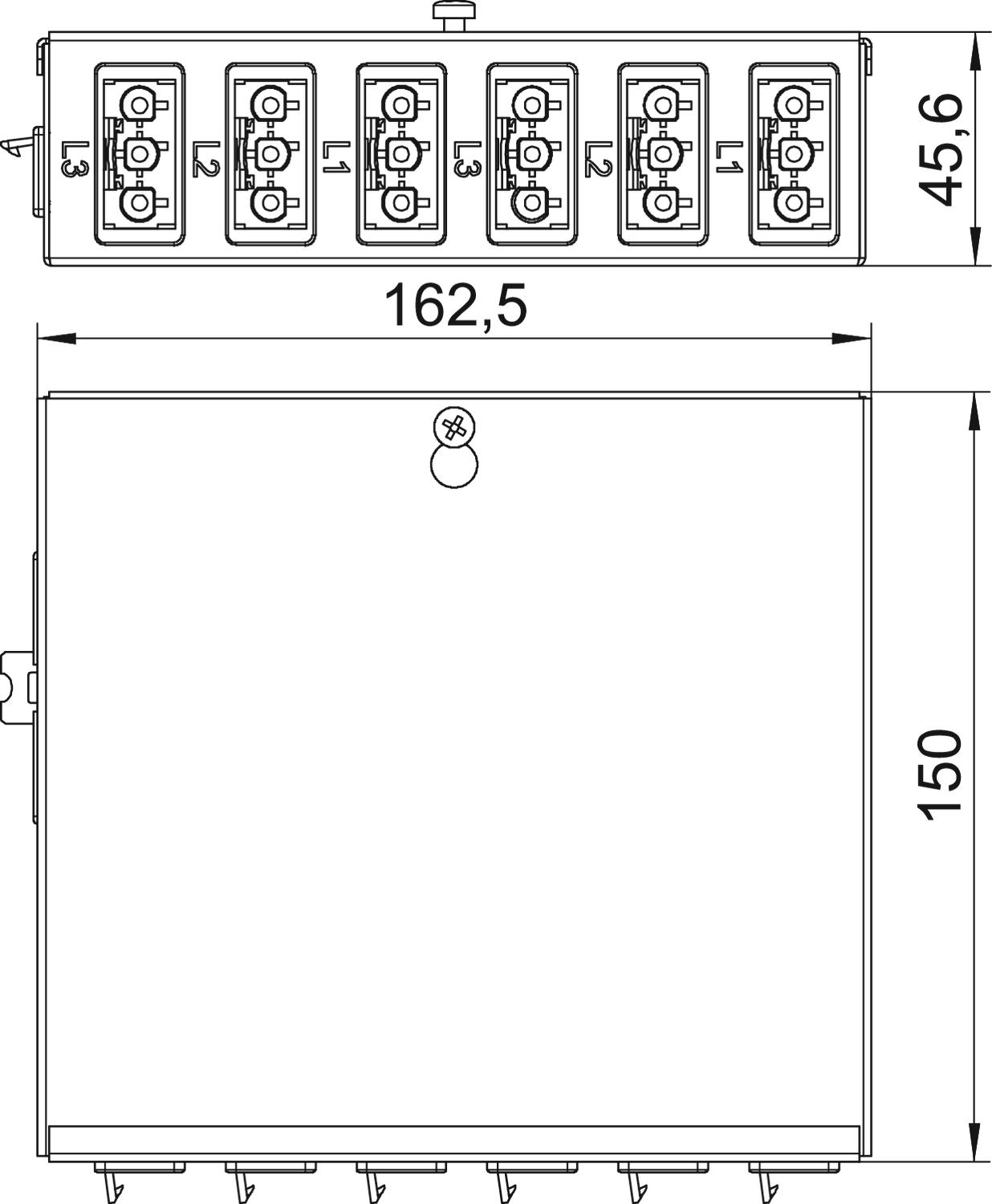

Colour of the plug connector system White Connection type Plug-in system CO₂ Footprint (GWP) Cradle-to-Gate 2,336 kg CO₂e / 1 Piece Dimension 160x150x48 Input 5-pole Material Steel No. of outlets 6 Number of input circuits 1 Plug connector system, system-specific yes - All types
- Downloads
-
Data sheet UVS-6W2SA / 6108014 , 0.19MB , pdfCatalogue Installation systems , 28.45MB , pdfEU declaration of conformity UVS-6W2SA / 6108014 , 0.13MB , pdfNo invitation to tender text is available for this product.
