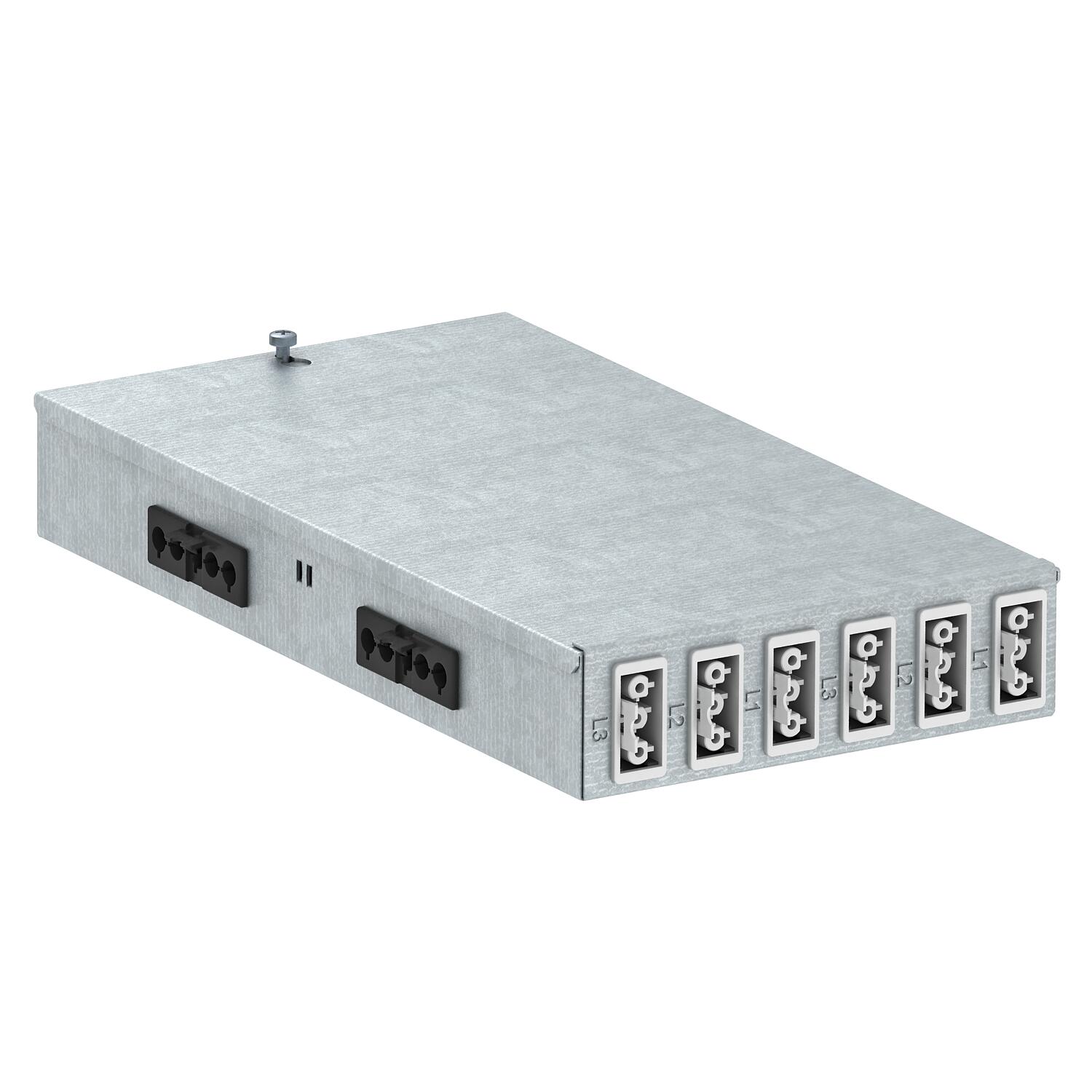

UVS energy distributor with plug connection, normal and special circuit
Item no. 6108016 | EAN 4012195523017
- Product description
-
Product descriptionEnergy distributor for heavy current technology with plug connection, equipped and pre-wired.
Input: Two 3-phase circuits using self-locking connectors, 5-pin, type GST18i (connector part).
Output: Twelve self-locking connectors, 3-pin, in white (6x) and black (6x), 16 A, type GST18i (socket part: 2 x L1, 2 x L2, 2 x L3 for each rotary current circuit).
Internal wiring: PVC non-sheathed cable H07V-U2.5.
-
- Technical data
-
Technical data

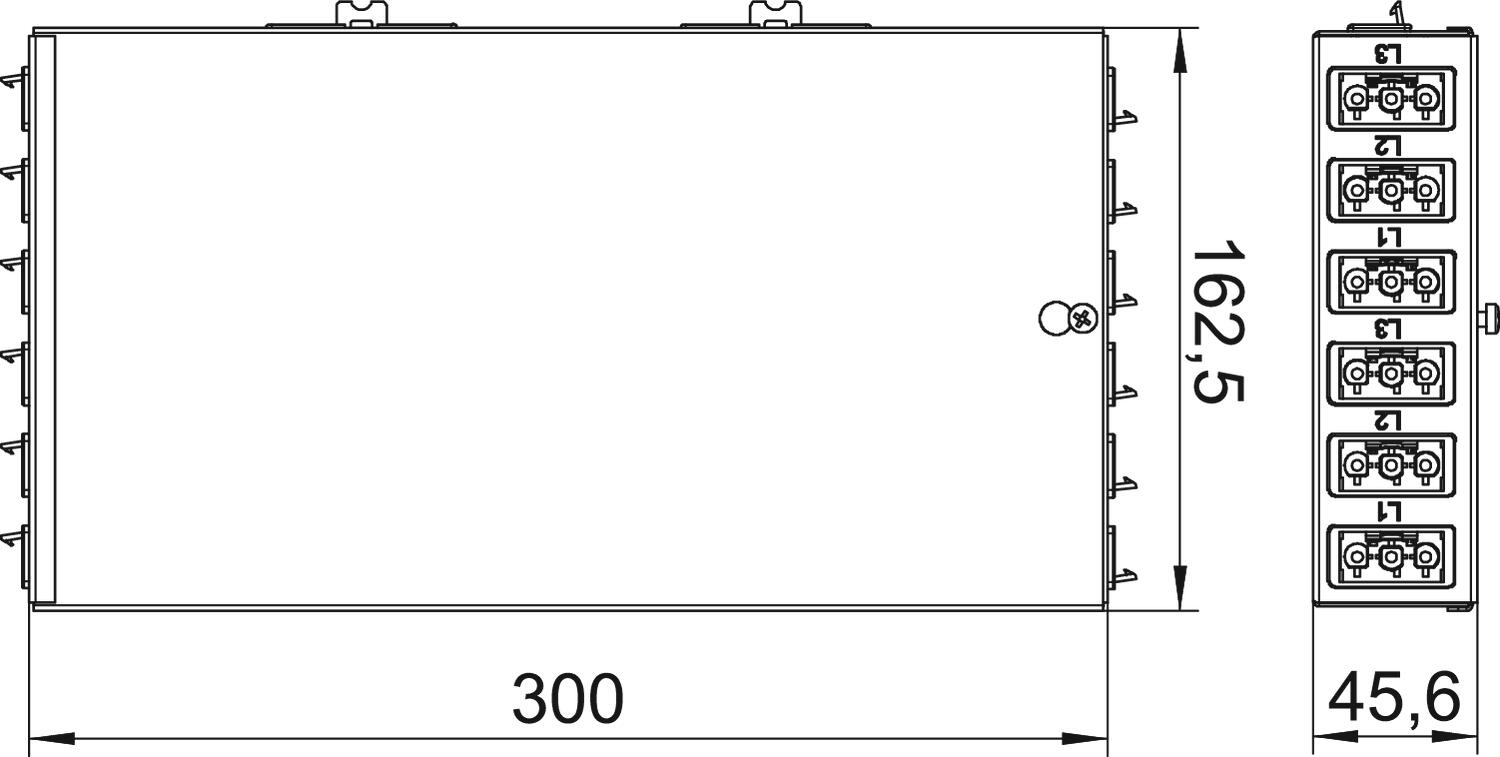

Colour of the plug connector system Black/white Connection type Plug-in system CO₂ Footprint (GWP) Cradle-to-Gate 3,692 kg CO₂e / 1 Piece Dimension 160x300x48mm Input 5-pole Material Steel No. of outlets 12 Number of input circuits 2 Plug connector system, system-specific yes - All types
- Downloads
-
Data sheet UVS-6S6W2SA / 6108016 , 0.18MB , pdfCatalogue Installation systems , 28.45MB , pdfEU declaration of conformity UVS-6S6W2SA / 6108016 , 0.13MB , pdfNo invitation to tender text is available for this product.
