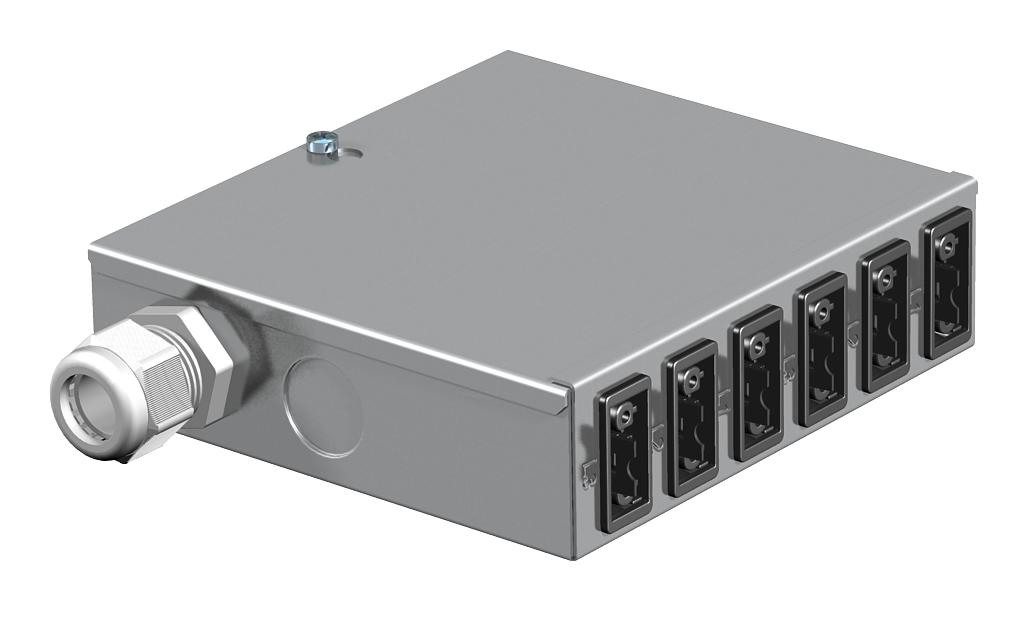

UVS energy distributor with fixed connection, normal circuit
Item no. 6108000 | EAN 4012195122265
- Product description
-
Product description
Energy distributor for heavy current technology with fixed connection, equipped and pre-wired.
Input: One 3-phase circuit via a screwless terminal block, 5-pin, for cable cross-sections of 0.5–4 mm².
Output: Six self-locking connectors, 3-pin, in black, 16 A, type GST18i (socket part: 2 x L1, 2 x L2, 2 x L3).
Internal wiring: PVC non-sheathed cable H07V-U2.5.
-
- Technical data
-
Technical data
Colour of the plug connector system Black Connection type Terminal block Cross-section of the connection cable 4 mm² Input 5-pole Material Steel No. of outlets 6 Number of input circuits 1 Plug connector system, system-specific yes - All types
- Downloads
-
Data sheet UVS-6S2 / 6108000 , 0.10MB , pdfCatalogue Installation systems , 28.45MB , pdfDeclaration of conformity UVS-6S2 / 6108000 , 0.13MB , pdfMounting instructions Mounting instructions UVS GST18 for 1 power circuit , 0.10MB , pdfNo invitation to tender text is available for this product.
