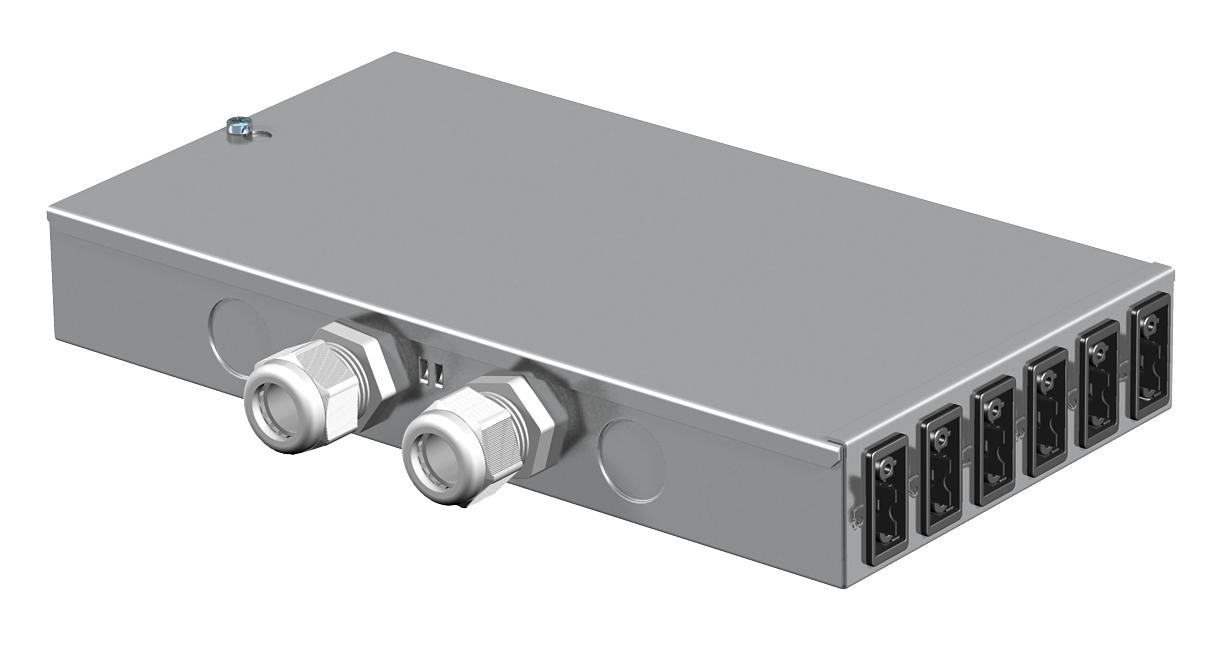

UVS energy distributor with fixed connection, normal and special circuit
Item no. 6108010 | EAN 4012195122289
- Product description
-
Product description
Energy distributor for heavy current technology with fixed connection, equipped and pre-wired.
Input: Two 3-phase circuits via a screwless terminal block, 5-pin, for cable cross-sections of 0.5–4 mm².
Output: Twelve self-locking connectors, 3-pin, in white (6x) and black (6x), 16 A, type GST18i (socket part: 2 x L1, 2 x L2, 2 x L3 for each rotary current circuit).
Internal wiring: PVC non-sheathed cable H07V-U2.5.
-
- Technical data
-
Technical data
Colour of the plug connector system Black/white Connection type Terminal block Cross-section of the connection cable 4 mm² Input 5-pole Material Steel No. of outlets 12 Number of input circuits 2 Plug connector system, system-specific yes - All types
- Downloads
-
Data sheet UVS-6S6W2 / 6108010 , 0.09MB , pdfCatalogue Installation systems , 28.45MB , pdfDeclaration of conformity UVS-6S6W2 / 6108010 , 0.13MB , pdfMounting instructions Mounting instructions UVS GST18 for 2 power circuits , 0.10MB , pdfNo invitation to tender text is available for this product.
