- Product description
-
Product description

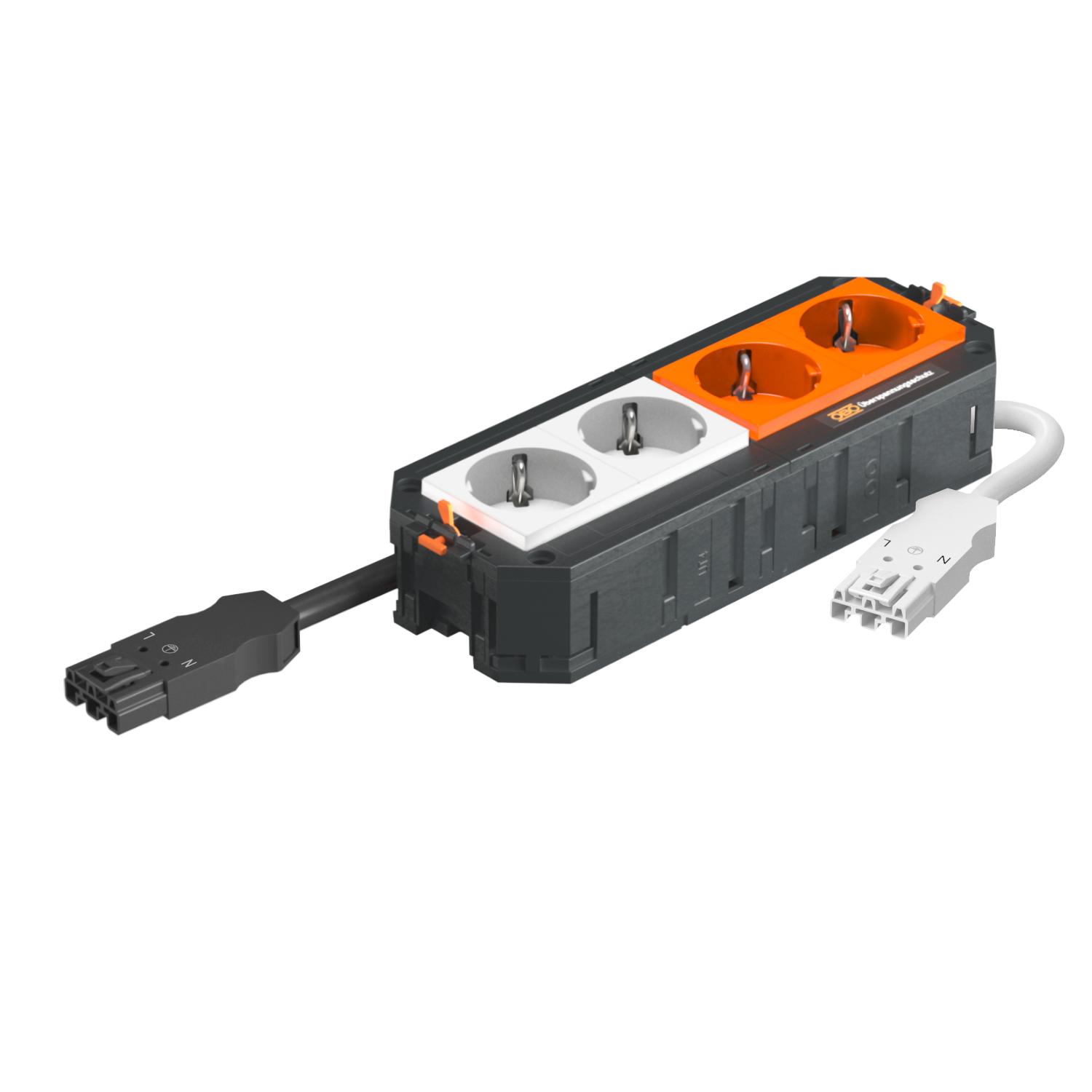

The ready-for-connection UTC4 universal support possesses 2 pre-installed 33° protective contact sockets in white and 2 pre-installed 33° protective contact sockets in orange (with surge protection module, type 3, according to DIN EN 61643-11), 250 V~, 16 A. Suitable for VL connection cables and device installation units of nominal size R7, R9 and 9.
PVC connection cable with connector, 3-pin, type WINSTA® MIDI.
The ready-for-connection UTC4 universal support possesses 2 pre-installed 33° protective contact sockets in white and 2 pre-installed 33° protective contact sockets in orange (with surge protection module, type 3, according to DIN EN 61643-11), 250 V~, 16 A.
PVC connection cable with connector, 3-pin, type WINSTA® MIDI.
- Technical data
-
Technical data
Cable length 300 mm Circuit 2 Connection cable, halogen-free yes Dimension 208x76x45 Line cross-section 2,5 mm² Material Polyamide Number of installable devices 4 Plug connector system, system-specific yes Plug-in system WINSTA® MIDI Surge protection yes Version for Double pure white/double pure orange Dimensions

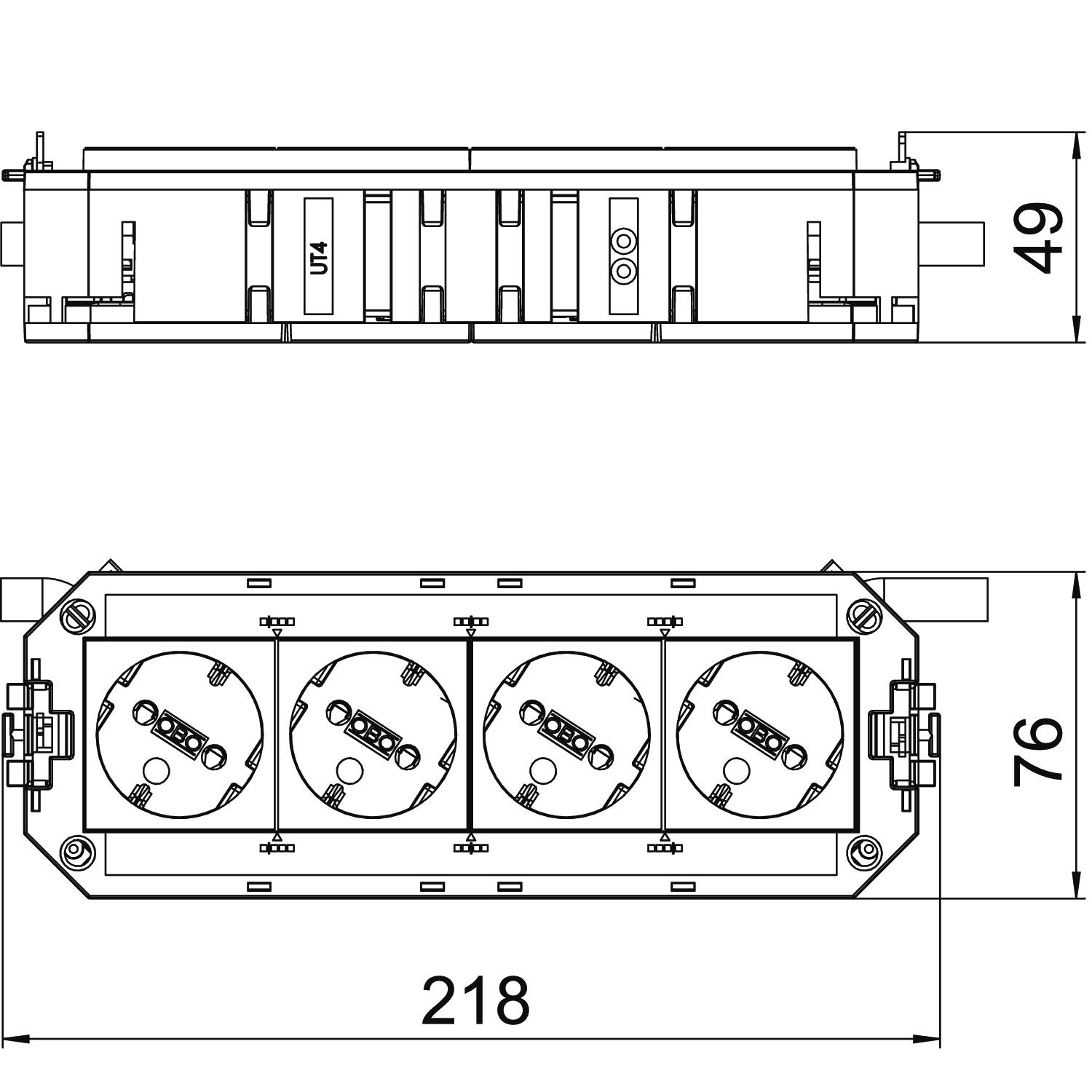

Height 60 mm Length 218 mm Width 76 mm - All types
- Downloads
-
Data sheet UTC4 W W2OR2 Ü / 7404617 , 0.24MB , pdfDeclaration of conformity UTC4 W W2OR2 Ü / 7404617 , 0.17MB , pdf
