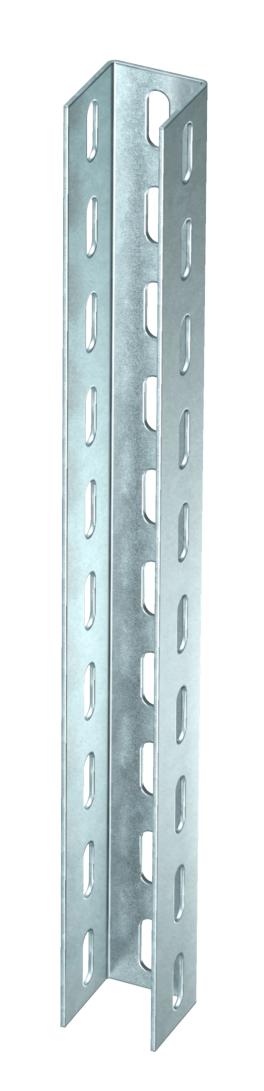

US 5 support FT
Item no. 6340903 | EAN 4012196959068
- Product description
-

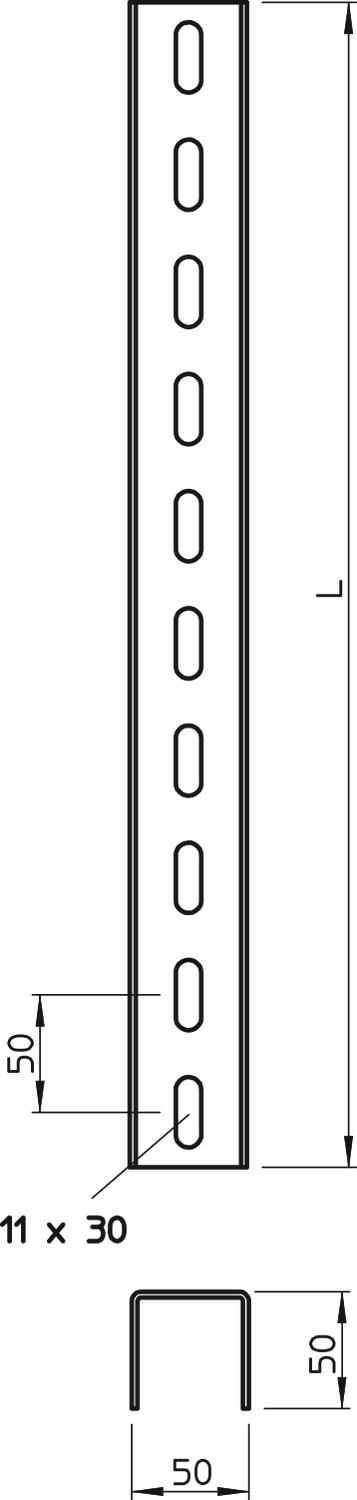

Product descriptionU support in fixed lengths. Dimensions 50 x 50 mm.
-
- Technical data
-
Technical data
Breakable no Colour zinc Dimension 50x50x300 Dimension 50 x 50 x 2,5 Dimension L 300 mm EPD article yes Height 50 mm Length 300 mm Maintain electrical functions yes Material Steel Material thickness 2,5 mm Profile shape U profile Slot width 45 mm Static value A 2,74 cm² Static value ly 8,32 cm Static value lz 12,53 cm Static value Wy 2,61 cm² Static value Wz 5,01 cm² Surface Hot-dip galvanised Type of perforation 3 sides perforated Version for Single profile Width 50 mm With toothing no - All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
U support connector FT
VUS 5 FT 6018505 10 piece
Protective cap
US 5 KS OR 6338462 20 piece
Head plate US 5
KUS 5 FT 6348904 1 piece
Truss-head bolt with nut and washer F
FRS 10x25 F 8.8 6407560 50 piece
Spacer FT
DSK 45 FT 6416500 20 piece
Hexagonal bolt M10 F
SKS 10x80 F 6418250 20 piece - Downloads
-
