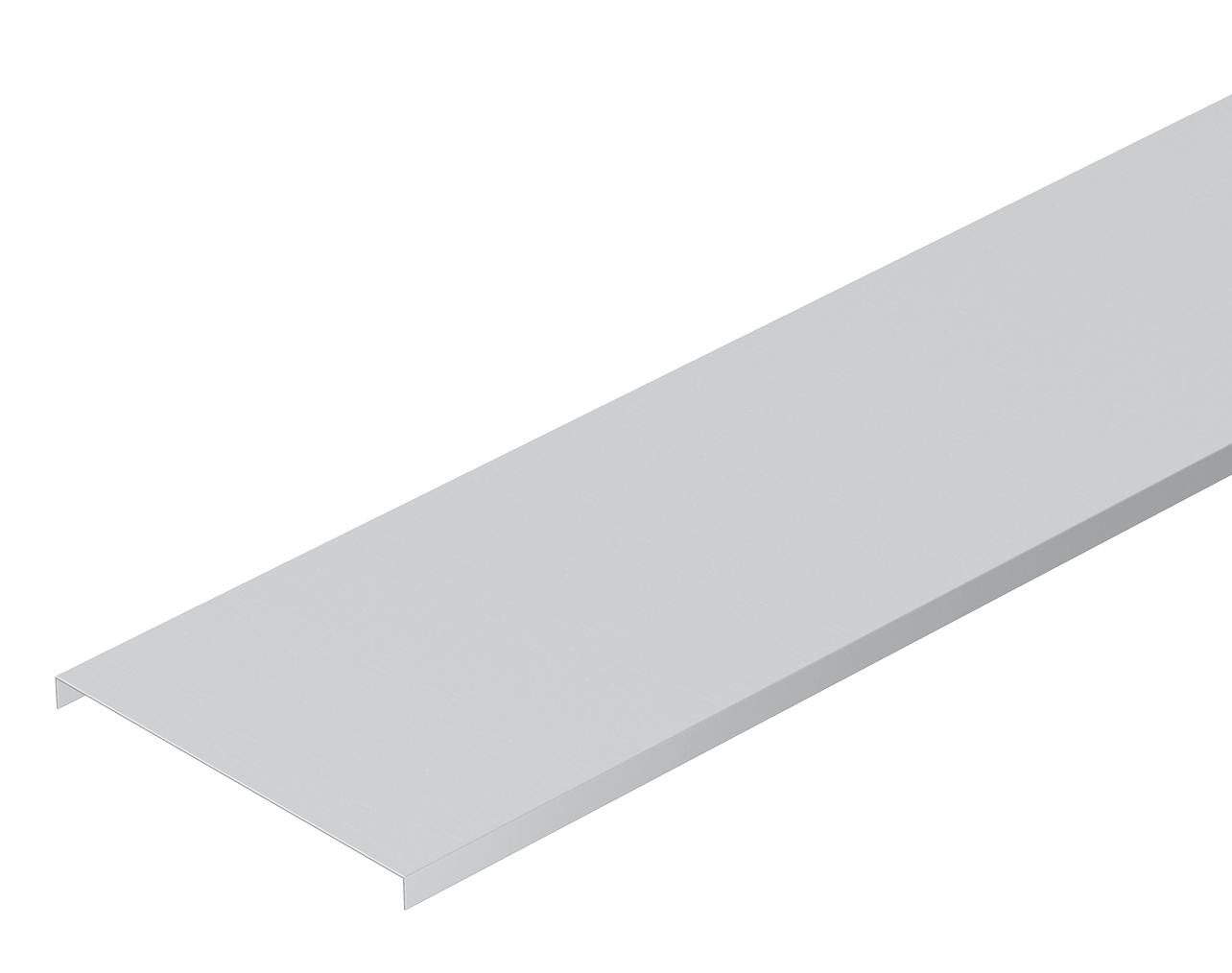

Unperforated cover A2

Item no. 6052824 | EAN 4012196031931

3000 mm
Product description

Product description

Cover for cable trays and mesh cable trays.
When using covers outdoors, additional measures against the influence of wind must be taken.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 35 mm
  • Cable tray, side height 60 mm
  • Cable tray, side height 85 mm
  • Cable tray, side height 110 mm
  • Mesh cable tray, slant height 35 mm
  • Mesh cable tray, slant height 55 mm
  • Mesh cable tray, slant height 105 mm
  • BET-tested to DIN EN 61537
Technical data

Technical data

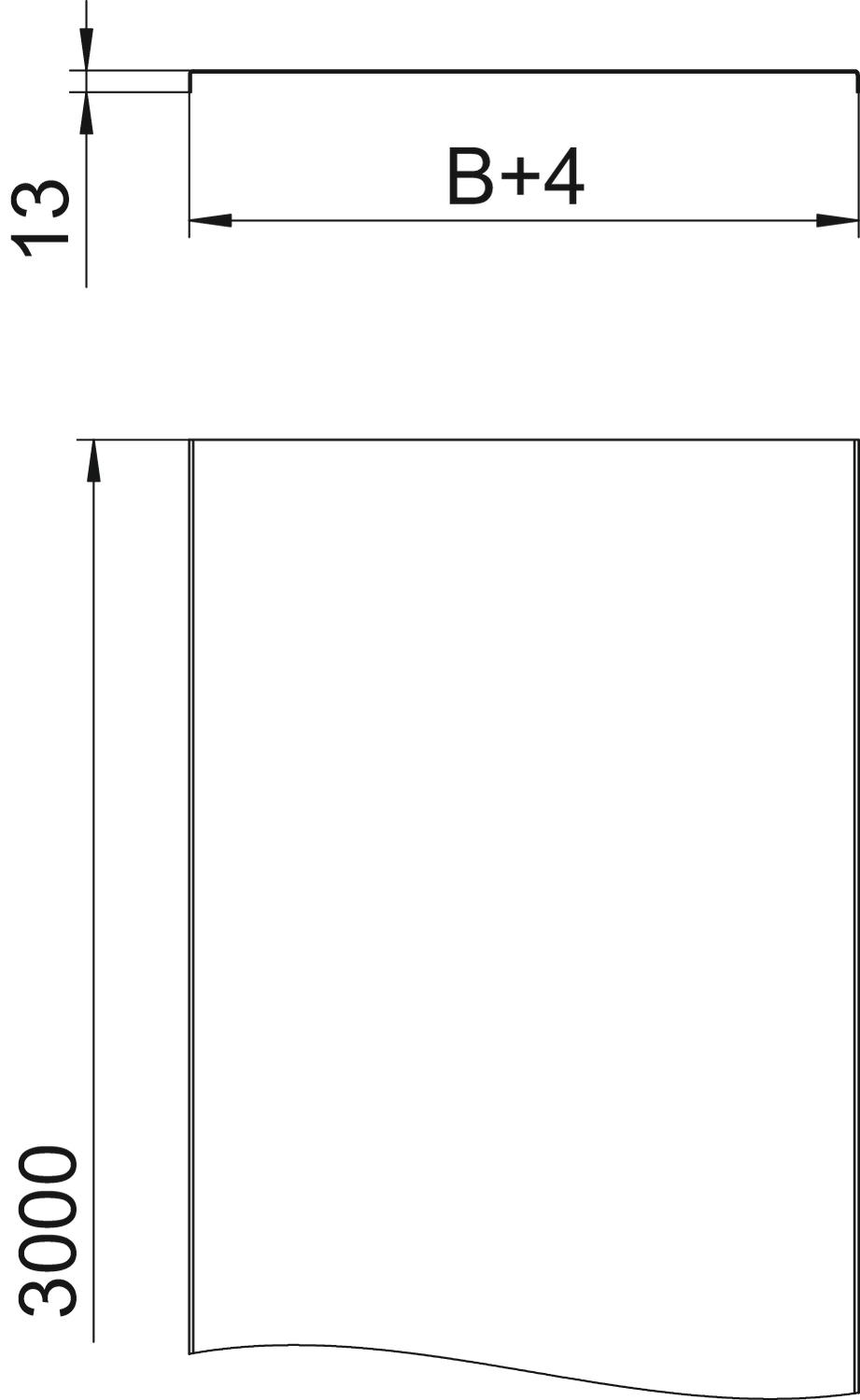

Dimension 100x3000
Dimension B 100 mm
Dimension H 15 mm
Fastening type Cover clamp
Height 35 mm
Length 3000 mm
Length 10 ft
Maintain electrical functions no
Material Stainless steel
Plate thickness 1 mm
Plate thickness 0,04 in
Rustproof steel, pickled no
Suitable for cable ladder yes
Suitable for cable tray yes
Suitable for mesh cable tray yes
Surface Bright, treated
Width 4 in
Width 100 mm
All types

All types

Types Length Width Plate thickness Item no. Quantity SSU
DRLU 050 A2 3000 mm 50 mm 1 mm 6052821
3 m
DRLU 100 A2 3000 mm 100 mm 1 mm 6052824
3 m
DRLU 200 A2 3000 mm 200 mm 1 mm 6052831
3 m
DRLU 300 A2 3000 mm 300 mm 1 mm 6052834
3 m
DRLU 400 A2 3000 mm 400 mm 1 mm 6052837
3 m
DRLU 500 A2 3000 mm 500 mm 1.5 mm 6052841
3 m
DRLU 600 A2 3000 mm 600 mm 1.5 mm 6052844
3 m
