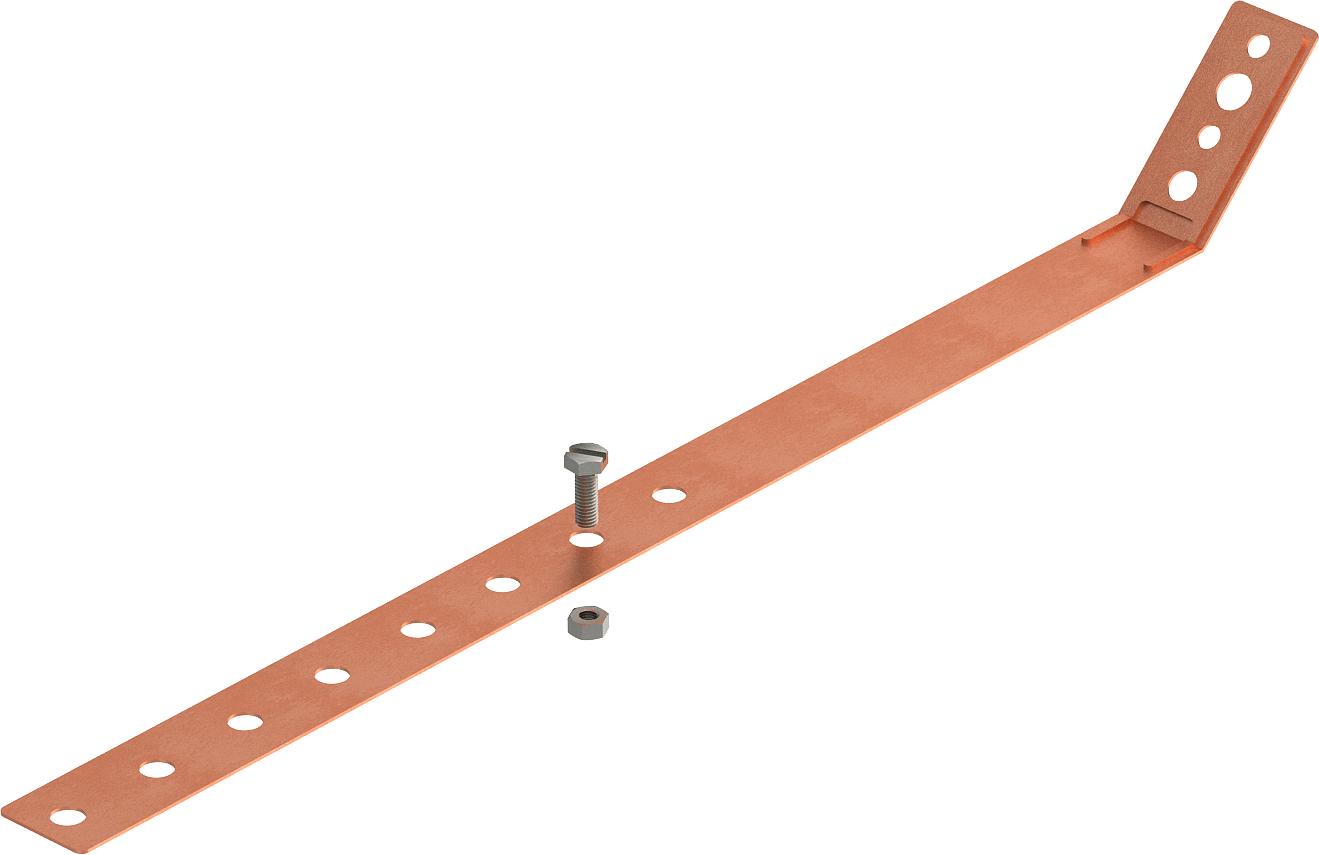

Universal downpipe clip 60−130 mm Cu
Item no. 5350883 | EAN 4012195426851
- Product description
-
Product description• Adjustable for pipe diameter of 60−130 mm
• With 2 connection holes Ø 7 mm
• With 1 connection hole Ø 9 mm
• With 1 connection hole Ø 11 mm
• Incl. hexagonal bolt M6 x 20 and M6 nut
- Technical data
-
Technical data
Bimetal connector no Clamping range, max. 130 mm Clamping range, min. 60 mm Connection hole 11 mm Dimension 420mm explosion-proof no Integrated round conductor guide no Material Copper - All types
- Downloads
-
Data sheet 301 V-CU / 5350883 , 0.10MB , pdfEU declaration of conformity 301 V-CU / 5350883 , 0.06MB , pdfREACH Declaration of conformity 301 V-CU / 5350883 , 0.12MB , pdfRoHS Declaration of conformity 301 V-CU / 5350883 , 0.12MB , pdf
