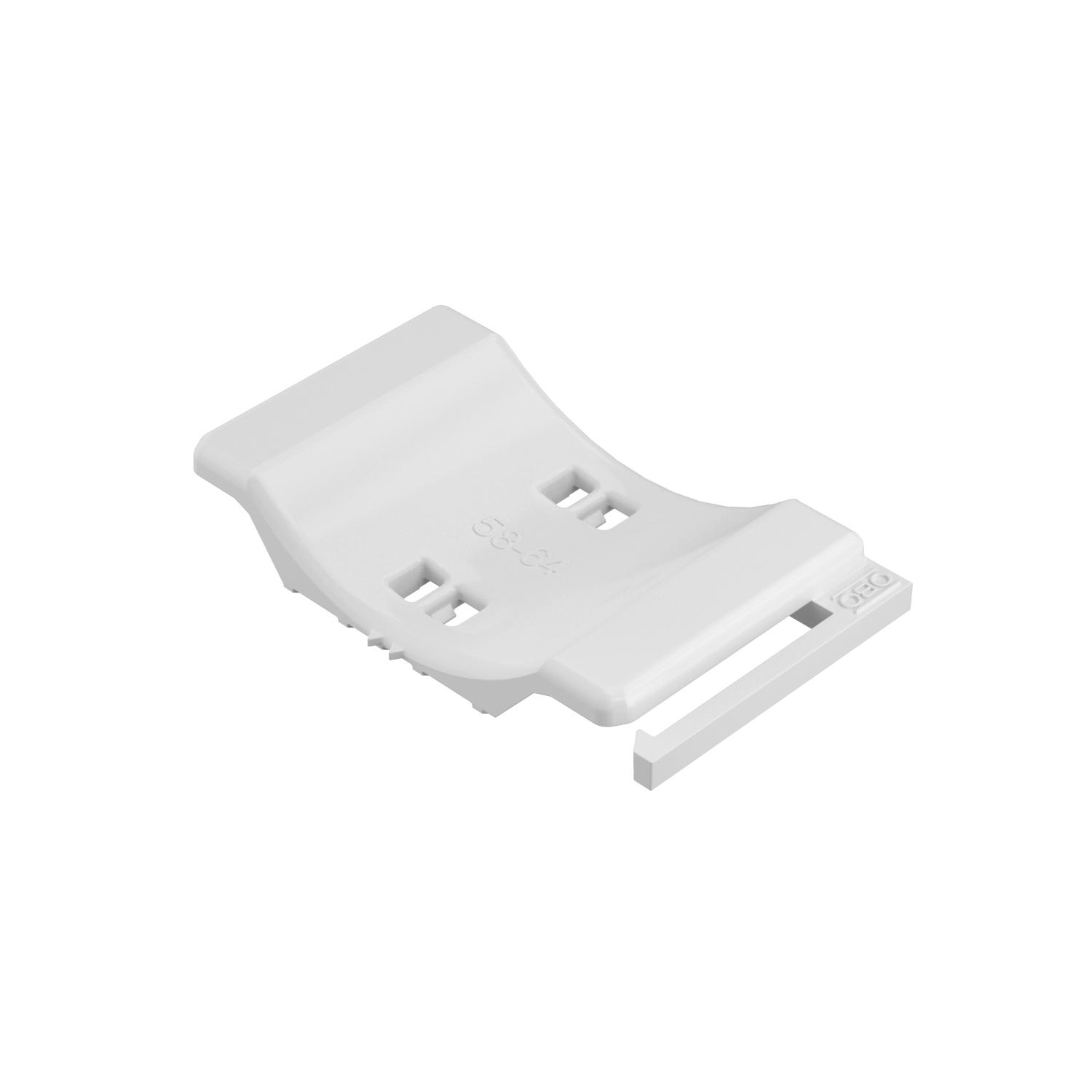

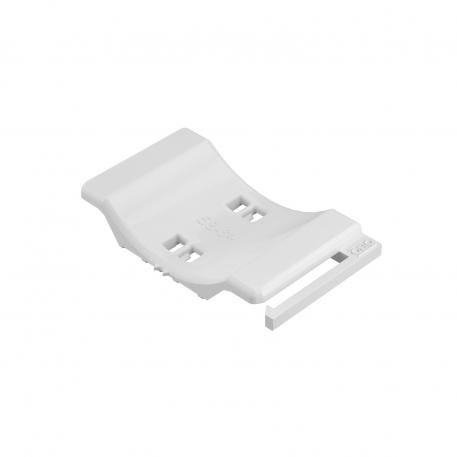

Universal counter-trough, plastic 69.5 | 11.8 | 40 | 58 | 64

Universal counter-trough, plastic

Item no. 1198064 | EAN 4012196636235

Item no. / Types

Dimension B

Dimension H

Dimension L

Clamping range D, min.

Clamping range D, max.

Product description

Product description

Regardless of the type of rail, the counter-trough can be used by applying it onto one side of the clamp clip. Due to an intelligent contour on the backside, the counter-trough can be combined to a double trough. Retrofitting possible without the need to dismantle.

Technical data

Technical data

Clamping range D, max.	64 mm
Clamping range D, min.	58 mm
Colour	Light grey; RAL 7035
Counter-trough/clip version	Counter sleeve
Dimension	58-64mm

Dimension B	69,5 mm
Dimension H	11,8 mm
Dimension L	40 mm
Material	Polypropylene
Suitable for max. cable diameter	64 mm

All types

All types

Types	Dimension B	Dimension H	Dimension L	Clamping range D, min.	Clamping range D, max.	Item no.	Quantity	SSU
2058UW 12 LGR	18.5 mm	5.8 mm	37 mm	8 mm	12 mm	1198012	piece	100 piece
2058UW 16 LGR	21.5 mm	5.8 mm	37 mm	12 mm	16 mm	1198016	piece	100 piece
2058UW 22 LGR	27.5 mm	6.8 mm	37 mm	16 mm	22 mm	1198022	piece	100 piece
2058UW 28 LGR	33.5 mm	8.3 mm	37 mm	22 mm	28 mm	1198028	piece	100 piece
2058UW 34 LGR	45.5 mm	9.8 mm	37 mm	28 mm	34 mm	1198034	piece	100 piece
2058UW 40 LGR	45.5 mm	10.8 mm	37 mm	34 mm	40 mm	1198040	piece	50 piece
2058UW 46 LGR	51.5 mm	11.8 mm	40 mm	40 mm	46 mm	1198046	piece	50 piece
2058UW 52 LGR	57.5 mm	11.8 mm	40 mm	46 mm	52 mm	1198052	piece	50 piece
2058UW 58 LGR	63.5 mm	11.8 mm	40 mm	52 mm	58 mm	1198058	piece	50 piece
2058UW 64 LGR	69.5 mm	11.8 mm	40 mm	58 mm	64 mm	1198064	piece	50 piece
2058UW 70 LGR	75.5 mm	12.3 mm	40 mm	64 mm	70 mm	1198070	piece	25 piece
2058UW 76 LGR	81.5 mm	12.3 mm	40 mm	70 mm	76 mm	1198076	piece	25 piece
2058UW 82 LGR	87.5 mm	12.3 mm	40 mm	76 mm	82 mm	1198082	piece	25 piece
2058UW 90 LGR	96 mm	12.8 mm	40 mm	82 mm	90 mm	1198090	piece	25 piece
2058UW 100 LGR	106 mm	12.8 mm	40 mm	90 mm	100 mm	1198100	piece	25 piece
