U support connector FT

Item no. 6018505 | EAN 4012196446896

Product description

Product description

U support connector to connect US 5 supports.

Technical data

Technical data

Dimension	190x44
Dimension	46,5 x 44 x 190
Drill hole spacing, centre	50 mm
Height	46,5 mm
Length	190 mm
Material	Steel

Rustproof steel, pickled	no
Suitable for profile shapes	U profile
Surface	Hot-dip galvanised
Width	44 mm
With screw accessories	yes

All types

All types

Types		Item no.	Quantity	SSU
VUS 5 FT		6018505	piece	10 piece

Downloads

Data sheet VUS 5 FT / 6018505 , 0.17MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity VUS 5 FT / 6018505 , 0.13MB , pdf

REACH Declaration of conformity VUS 5 FT / 6018505 , 0.12MB , pdf

Download

RoHS Declaration of conformity VUS 5 FT / 6018505 , 0.12MB , pdf

Download

Mounting instructions Mounting instructions, U support systems , 0.04MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

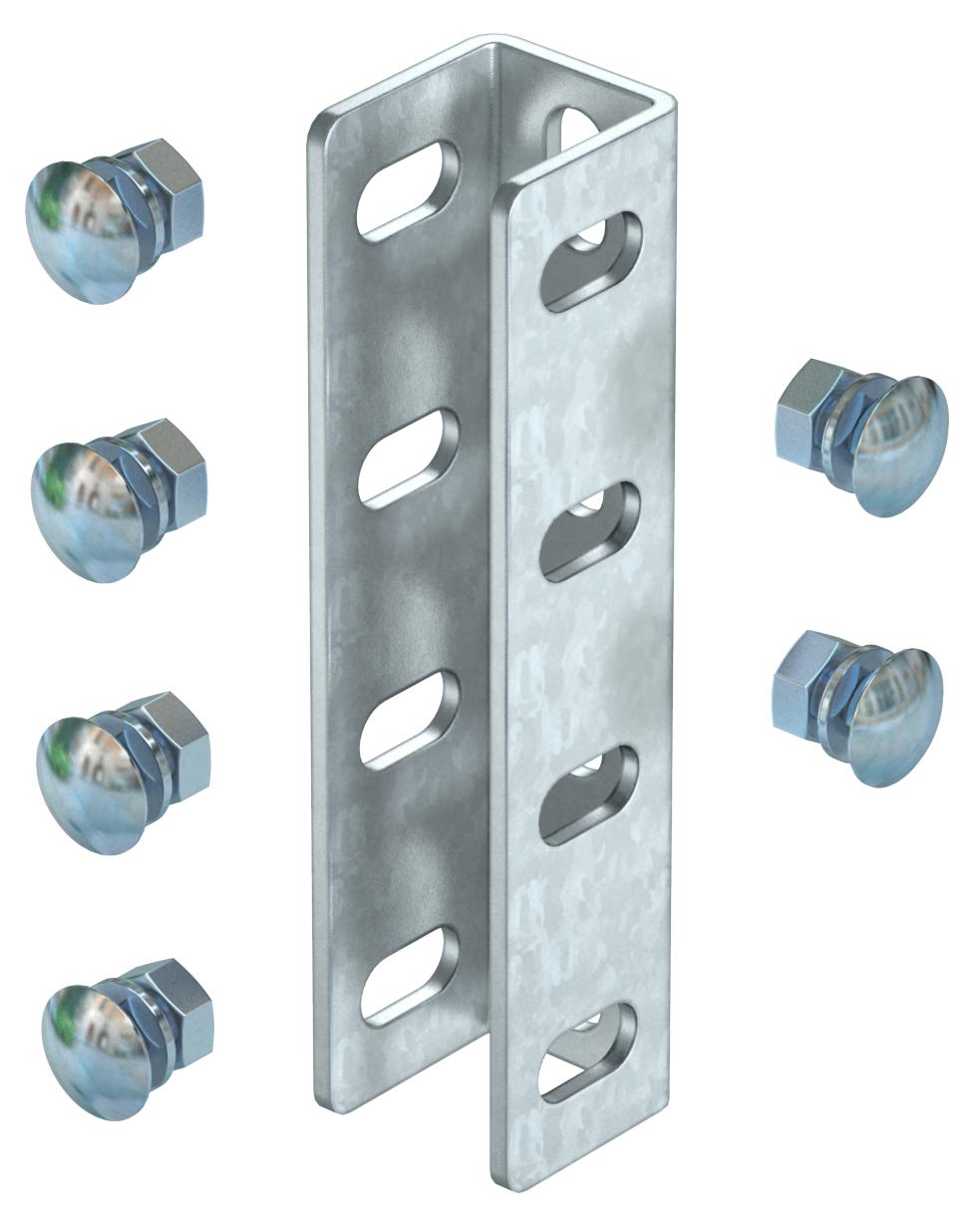

Product graphic VUS 5 FT / 6018505, 74.90 kB, jpg

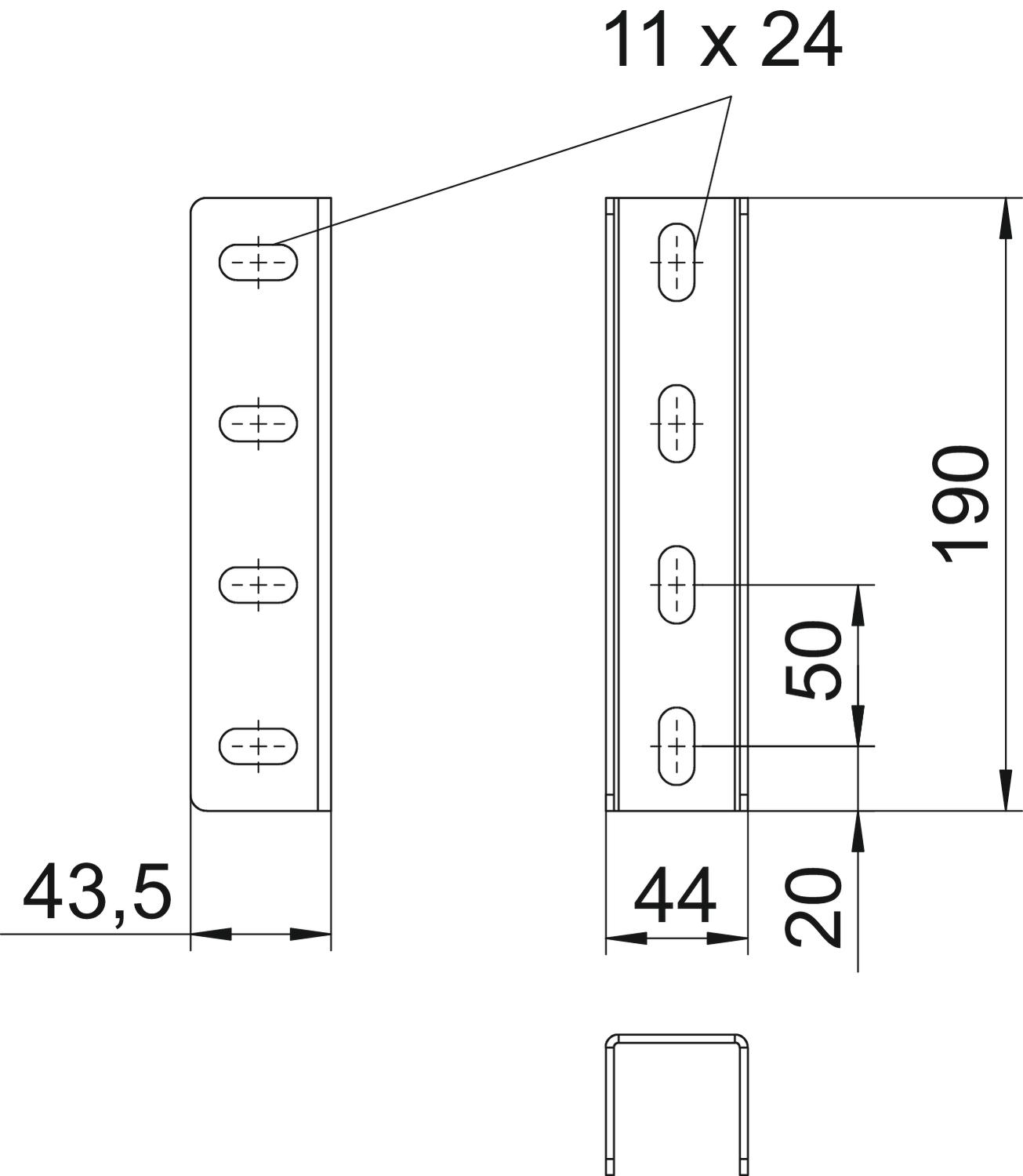

Scale drawing VUS 5 FT / 6018505, 67.86 kB, jpg

VUS 5 FT / 6018505

6018505_KSTP1.stp, 91.14 kB
