U support connector FT
Item no. 6018378 | EAN 4012196014293
- Product description
-
Product description

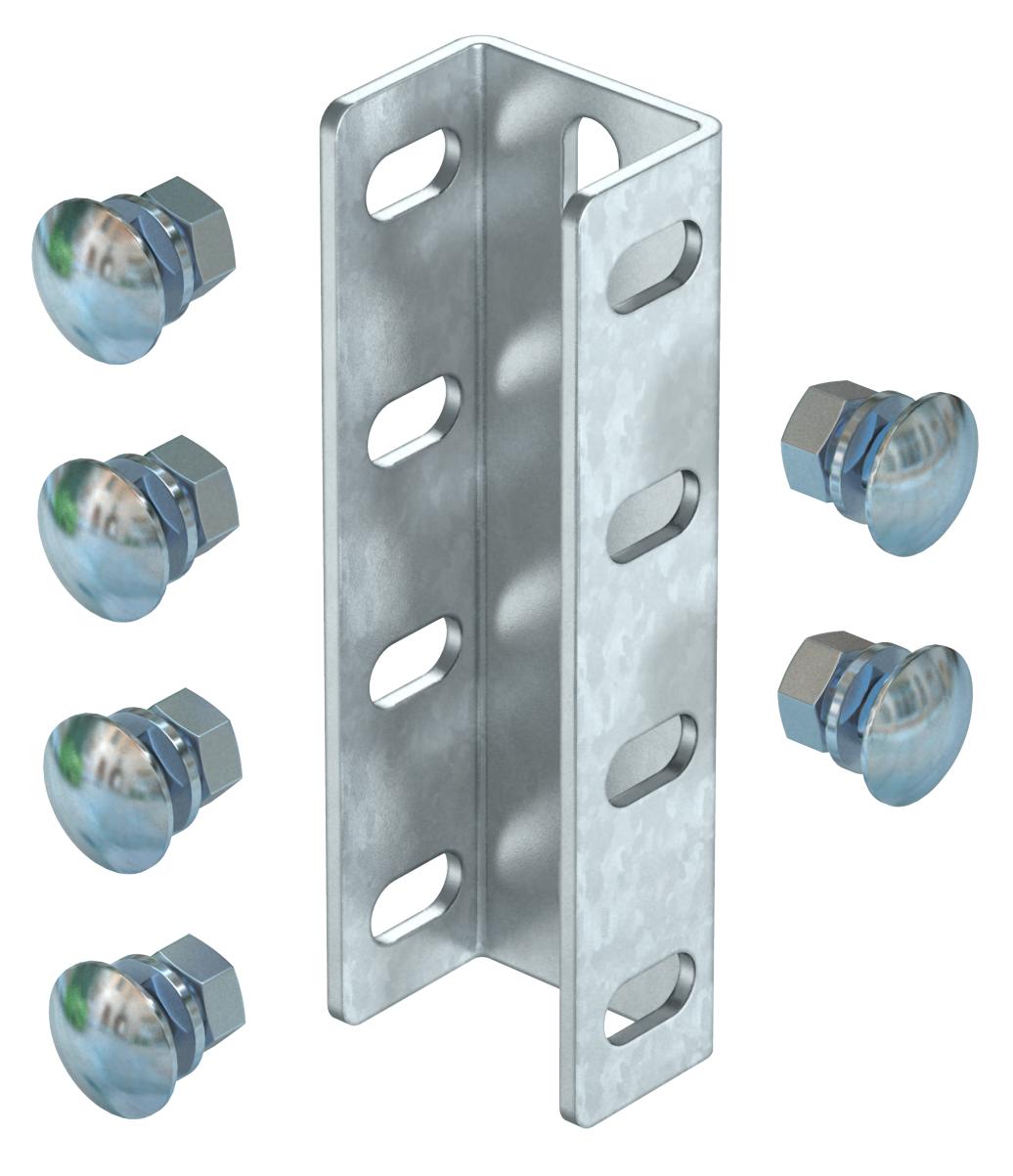

U support connector to connect US 7 supports.
-
- Technical data
-
Technical data

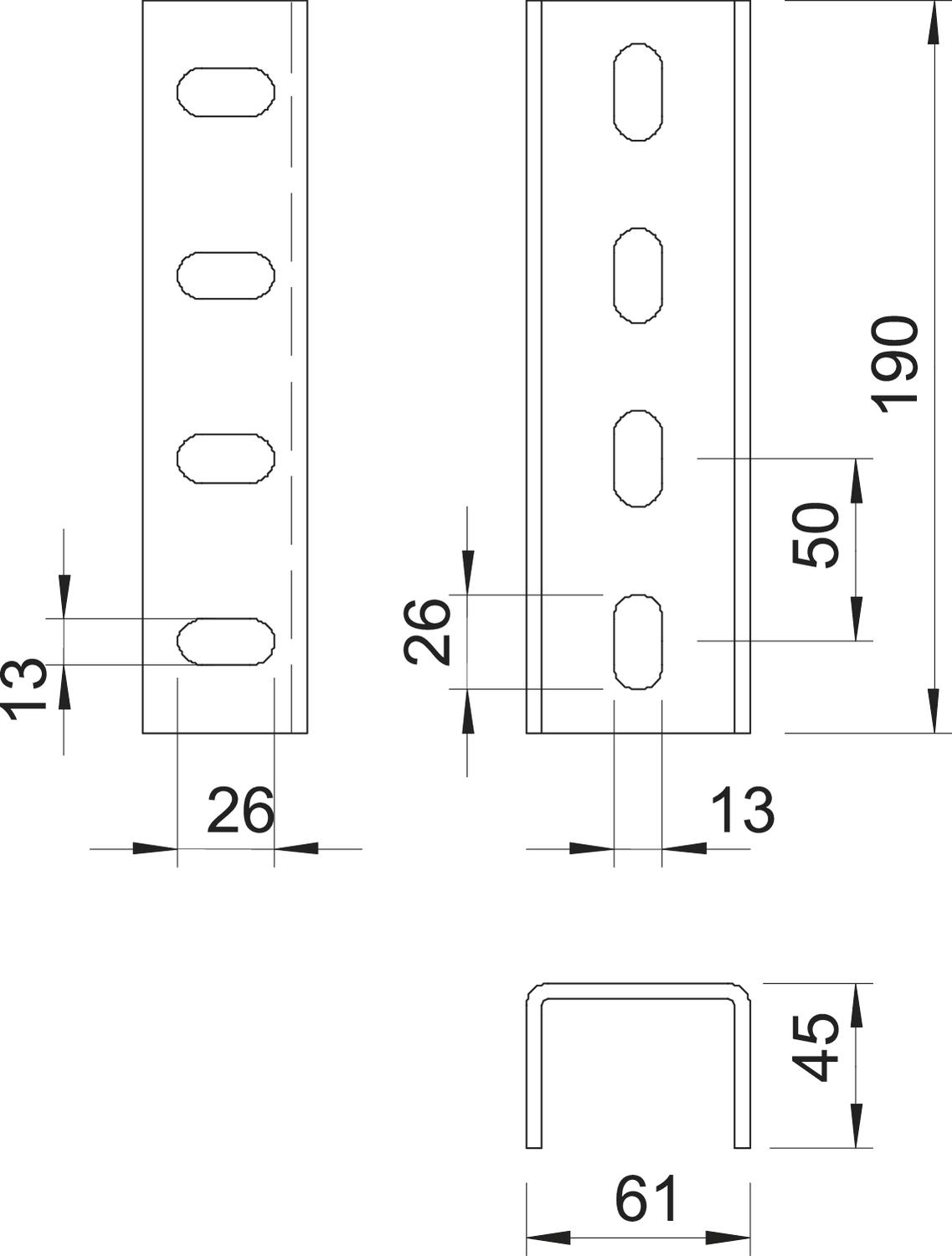

Dimension 45 x 61 x 190 Dimension 190x61 Drill hole spacing, centre 50 mm Height 45 mm Hole size 13 x 26 mm Length 190 mm Material Steel Material thickness 4 mm Profile shape U profile Rustproof steel, pickled no Suitable for profile shapes U profile Surface Hot-dip galvanised Type of perforation 3 sides perforated Width 61 mm With screw accessories yes - All types
- Downloads
-
Data sheet VUS 7 FT / 6018378 , 0.17MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity VUS 7 FT / 6018378 , 0.13MB , pdfREACH Declaration of conformity VUS 7 FT / 6018378 , 0.12MB , pdfRoHS Declaration of conformity VUS 7 FT / 6018378 , 0.13MB , pdfMounting instructions Mounting instructions, U support systems , 0.04MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
