U support connector A2
Item no. 6018408 | EAN 4012196014354
- Product description
-
Product description

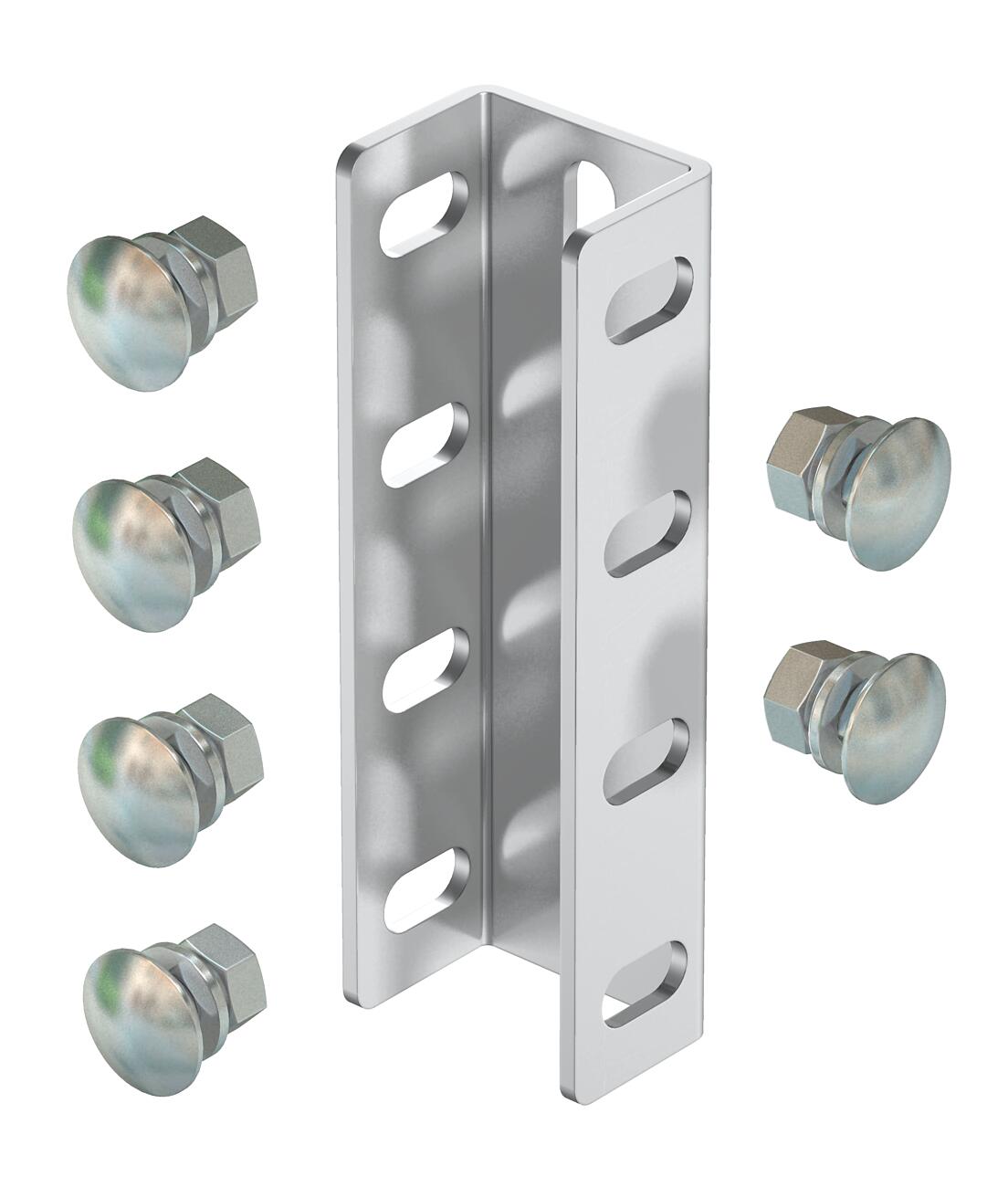

U support connector to connect US 7 supports.
-
- Technical data
-
Technical data
Dimension 190x61 Dimension 61 x 45 x 190 Drill hole spacing, centre 50 mm Hole size 13 x 26 mm Material Stainless steel Material thickness 4 mm Profile shape U profile Rustproof steel, pickled yes Suitable for profile shapes U profile Surface Bright, treated Type of perforation 3 sides perforated With screw accessories yes Dimensions
Height 45 mm Length 190 mm Width 61 mm - All types
- Downloads
-
Data sheet VUS 7 A2 / 6018408 , 0.28MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity VUS 7 A2 / 6018408 , 0.13MB , pdfSustainability report Sustainability report, cable support systems , 2.00MB , pdfMounting instructions Mounting instructions, U support systems , 0.04MB , pdf
